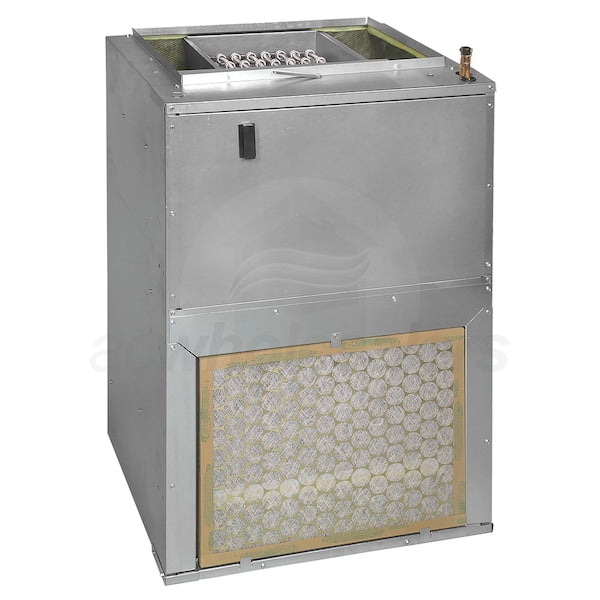

Goodman AWST36LU1305 AWST Air Handler Multi-Speed ECM 3 Ton

Product Description

The Goodman AWST36LU1305 is a ducted wall-mounted air handler designed for residential use. This unit features a multi-speed ECM motor to provide efficient heating and cooling. It is rated for a nominal cooling capacity of thirty-six thousand BTU per hour and can accommodate systems from one and a half to three tons. The air handler includes a factory-installed TXV expansion device for optimal refrigerant flow and efficiency.

• Multi-speed ECM motor for variable air volume.
• High-quality aluminum coil for improved reliability.
• Factory TXV installed for quick installation.

Product Highlights

This air handler is capable of delivering efficient air handling solutions for single-family homes.

Product Information

Standard Information

• Model: AWST36LU1305
• Type: Air Handler

Technical Specifications

• Dimensions: 24 inches width, 36 inches height, 21 inches depth
• Weight: 109 pounds
• Cooling Capacity: 36000 BTU/h
• Blower Motor: 1/2 metric hp
• Power Supply: 208/230 V
• Nominal Tonnage: 3 tons
• Fan Motor Speed: Multi-speed ECM
• Air Leakage: Less than 2.0% at 1.0 inch H2O
