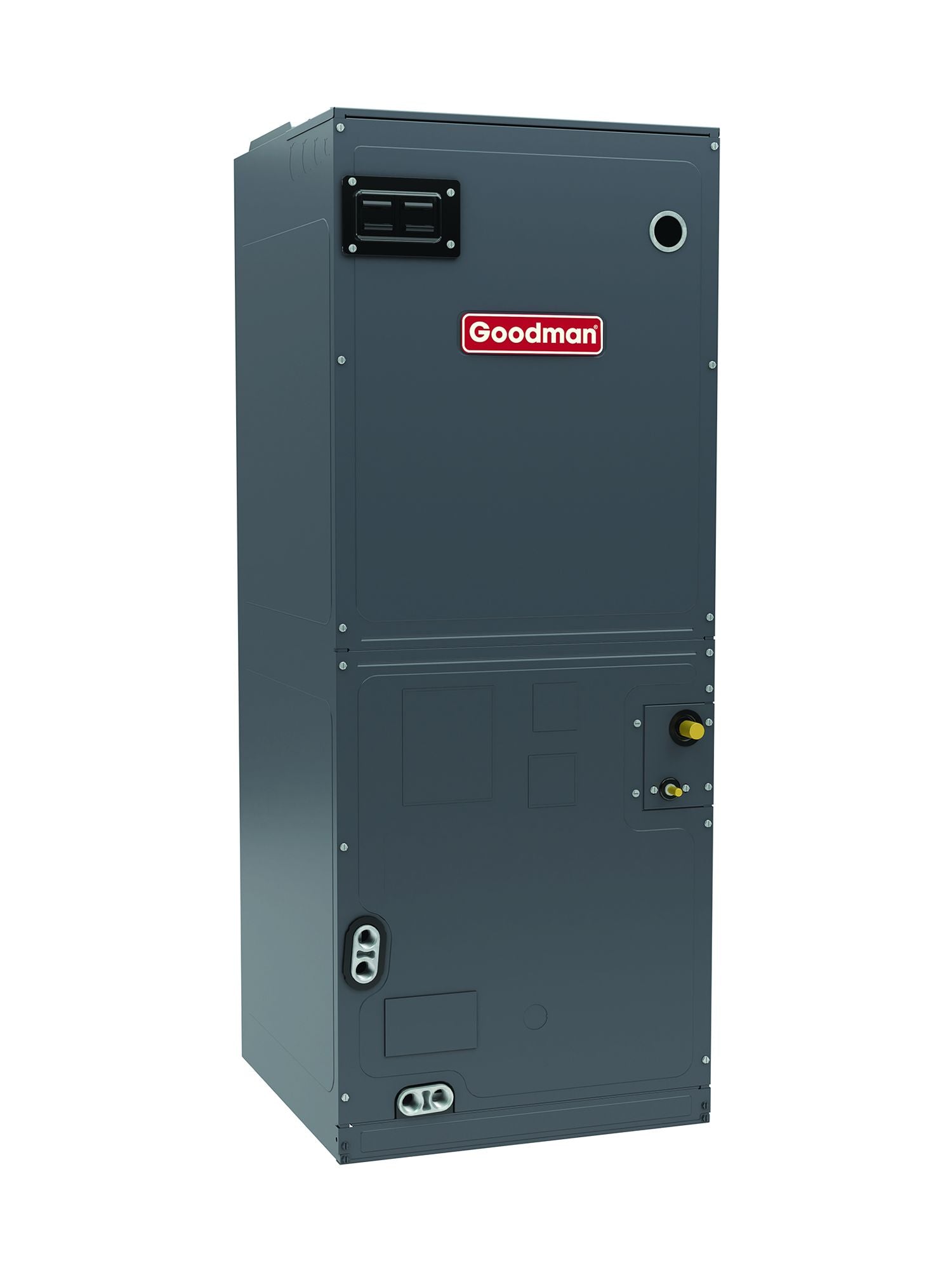

Goodman AVPEC59D14 Air Handler 4-5 Ton

Product Description

The Goodman AVPEC59D14 air handler provides effective air distribution. Features include an all-aluminum evaporator coil, thermoplastic drain pan, variable speed fan motor, and internal thermostatic expansion valve. These components improve system efficiency and comfort. It has a variable-speed ECM motor to help eliminate the cold blast of air upon heating start-up.

• All-Aluminum Coil
• Energy-Efficient Circulation
• Electronic Expansion Valve

Product Highlights

Provides constant CFM over a wide range of static pressure conditions independent of duct system. Suitable for operation with inverter-driven products.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: AVPEC59D14
• Country of Origin: United States

Technical Specifications

• Product Category: Air Handler
• Type: Air Handler
• Product Line: AVPEC
• Refrigerant Type: R-410A
• Blower Motor Type: Variable-Speed
• Motor Type: ECM
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• TXV Installed: No
• Capacity: 4.0 - 5.0 Tons
• Cooling BTU: 48000
• Maximum Air Flow: 1800 CFM
• Minimum Air Flow: 1350 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 8.6 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 24 1/2 Inches
• Product Height: 53 7/16 Inches
• Product Width: 24 1/2 Inches
• Product Depth: 21 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• Model Number(s): AVPEC59D14
• Brand: Goodman
• Category: Air Handlers
• Electrical Phase(s): 1-Phase
• Amp(s): 15
• Blower: Variable Speed
• Maximum CFM: 1,800
• Height (Inches): 53 7/16
• Width (Inches): 24 1/2
• Depth (Inches): 21
• Model: AVPEC59D14
• Country of Origin: United States
