Goodman ASXC706010 condenser 5 ton

Product Description

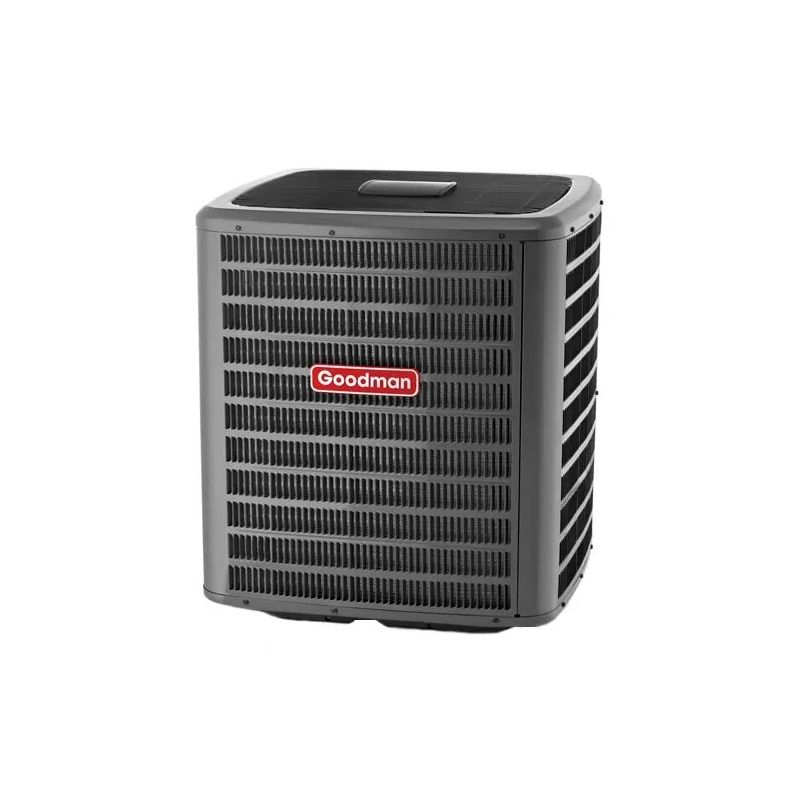

The Goodman ASXC706010 is a 5-ton condenser designed for efficient and quiet operation. Built with a superior design, the GSXC706010 is engineered to provide optimal comfort. It features a two-stage Copeland UltraTech scroll compressor for stable temperature output and better dehumidification. The unit is also designed for durability with a galvanized-steel cabinet.

• Ideal size to cover a large house in ideal climates
• 5 Ton, 17.2 SEER2 AC-only condenser
• Two Stage

Product Highlights

This condenser offers superior comfort with two stages, quiet operation, and durable construction for long-lasting performance.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ASXC706010

Technical Specifications

• SKU: GSXC706010
• SEER2 (Efficiency): 17.2
• Decibel Level (dBA): 75
• Replaces: GSXC1606010 GSXC1806010
• Connection: Sweat
• Electrical: 208/230v 1 Phase 60Hz
• Horsepower: 0.333 HP
• Cooling BTU: 60,000
• Energy Star: Yes
• Liquid Line: 3/8"
• Refrigerant: R410A
• Blower Motor: Two Stage ECM Motor
• Brand/Manufacturer: Goodman
• Suction Line: 1 1/8"
• Compressor Type: Scroll
• Condenser Stages: Two Stage
• Max Breaker Size: 60 Amps
• Min. Breaker Size: 34.8 Amps
• Tonnage: 5 Ton
• Operating Mode: Cooling
• Modulating/Staging: Two Stage
• Blower Motor Type: ECM Variable-Speed
• Coil Width: 21 Inches
• Configuration: Upflow/Downflow
• DOE Regional Compliance: Nationwide
• Cooling Capacity: 60000 BTU
• Nominal Cooling Capacity: 60000 BTU
• EER2: 11.7
• ETL Listed: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 208683220
• Type: Condenser
• Product Line: GSXC7
• Installation Location: Outdoor
• Compressor Stages: Two Stage
• Maximum Sound Level: 75 dB
• Voltage: 208/230 V
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 10.6 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• ISO Certified: Yes
• Model: GSXC7
• SEER Rating: 16.6 to 17.5
• BTU Rating: 60000 Btu/hr
• HP Rating: 1/3 hp
• Nominal Capacity: 5 ton
• Number of Stages: 2
• Refrigerant Type: R-410A
• Sound Level: 75 dBA
• Connection Type: C
• Fuse Rating: 60 A
• Motor Type: ECM
• Temperature Rating: 65 to 115 deg F
• Material: Steel
• Finish: Baked-On Powder-Coated/Galvanized
• Additional Information: TXV Expansion Device
• Voltage Rating: 208/230 V
• Amperage Rating: 34.8 A
• Suction Line Size: 1-1/8 in
• Liquid Line Size: 3/8 in
• Energy Star Listed: Yes
• SEER2: 17.2
