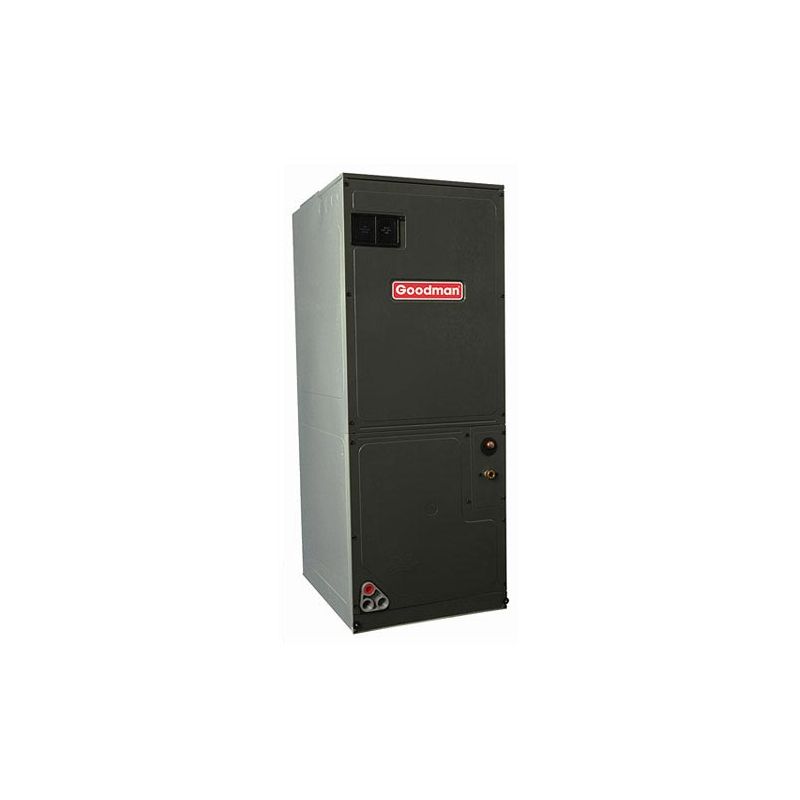

Goodman ASPT49C14 Air Conditioner Air Handler 4 Ton

Product Description

The Goodman ASPT49C14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate, and the cabinet is fully painted in an Architectural Gray finish. It features a direct-drive, multi-speed ECM blower motor that reduces the likelihood of hot and cold spots, increasing efficiency. It is suitable for horizontal, vertical, upflow, or downflow installations.

• Factory-installed internal TXV valve
• Transformer and blower time-delay
• New SmartFrame cabinet construction

Product Highlights

The Goodman ASPT49C14 air handler provides efficient, energy-saving performance with a durable design for versatile installation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ASPT49C14
• Country of Origin: Domestic

Technical Specifications

• Capacity: 4.0 Tons
• Phase: 1
• Voltage: 208/230 Volts
• Cooling BTU: 48000
• Cabinet Width: 21 Inches
• Product Depth: 21 Inches
• Product Width: 24 1/2 Inches
• Type: Air Handler
• ETL Listed: Yes
• Product Height: 58 Inches
• Frequency: 60 Hz
• Product Category: Air Handler
• Maximum Air Flow: 2215 CFM
• Minimum Air Flow: 1485 CFM
• AHRI Certified: Yes
• Motor Type: Multi-Speed EEM
• Mount Type: Multi-Position
• Product Line: ASPT
• Liquid Connection Size: 3/8 Inch
• Electric Heat: Available
• TXV Installed: Yes
• Suction Connection Size: 7/8 Inch
• Minimum Circuit Ampacity: 9 Amps
• Recommended Breaker Size: 15 Amps
• Installation Location: Indoor
• Refrigerant Type: R-410A
• Voltage Rating: 208 to 240 VAC
• Nominal Capacity: 4 ton
• Refrigerant: R410A
• Electrical: 208/230 V, 1 Phase, 60 Hz
• Tonnage: 4 Ton
• Amperage Rating: 7.1 A
• CFM Rating: 1485 to 2215 cfm
• Cooling Capacity: 48000 Btu/hr
• Application: Multi-Position EEM Motor
