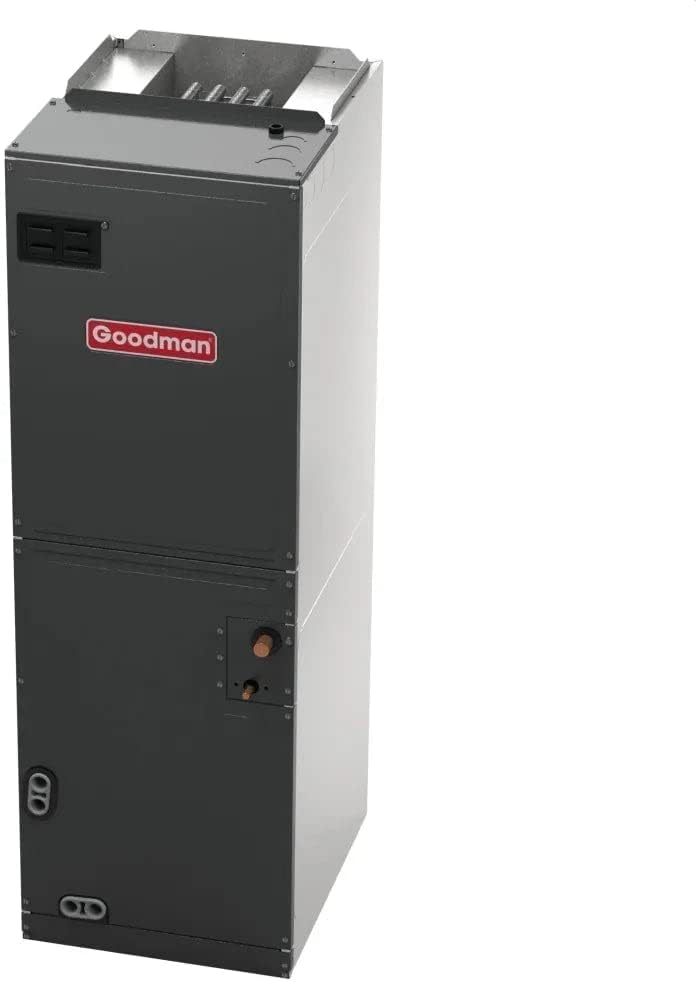

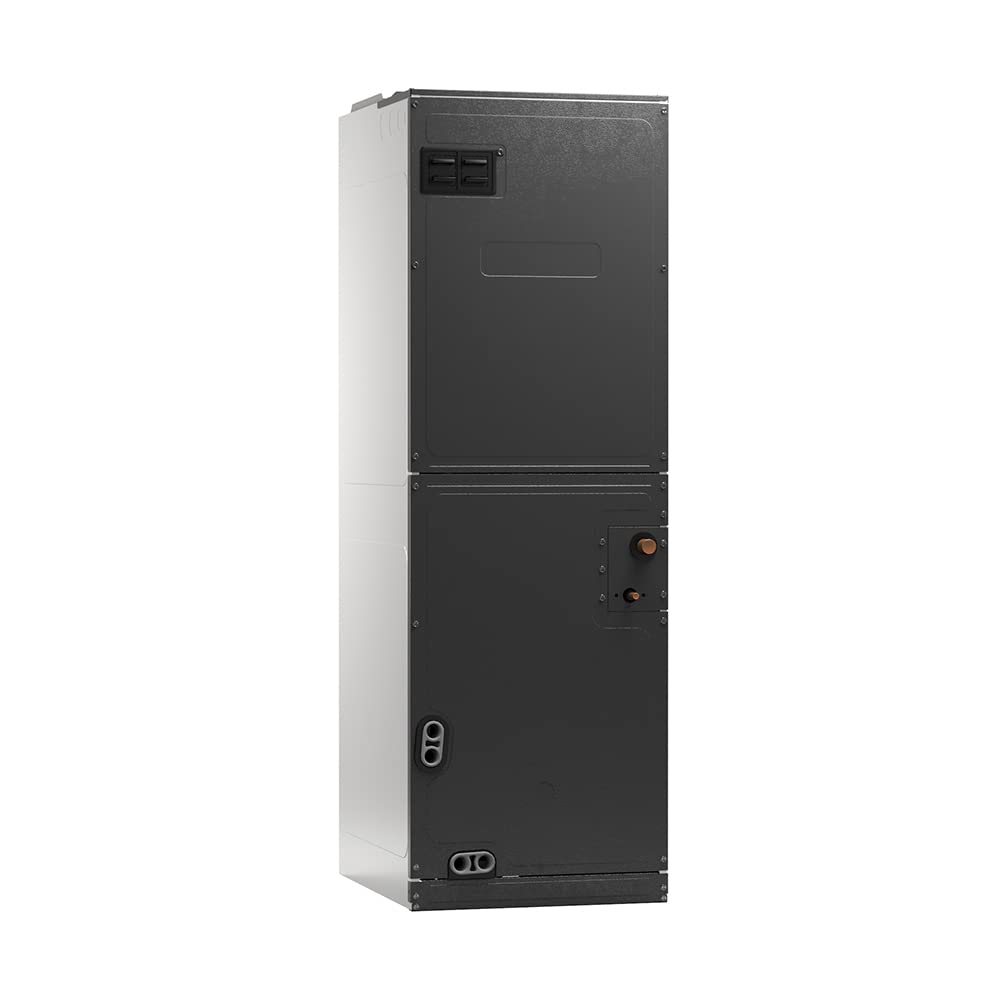

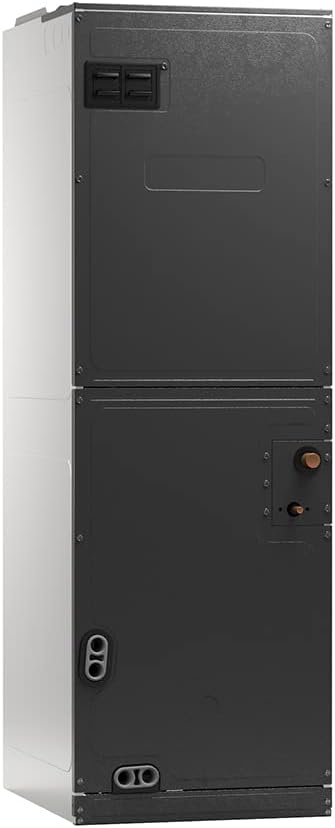

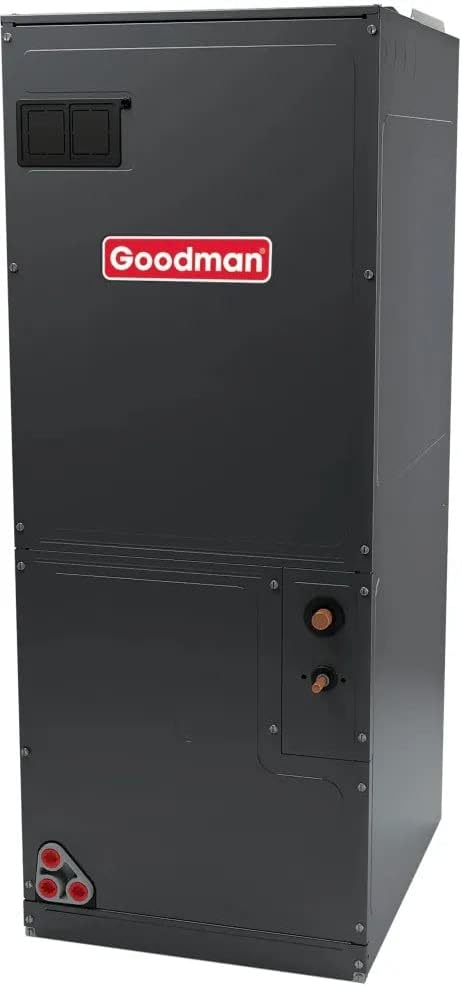

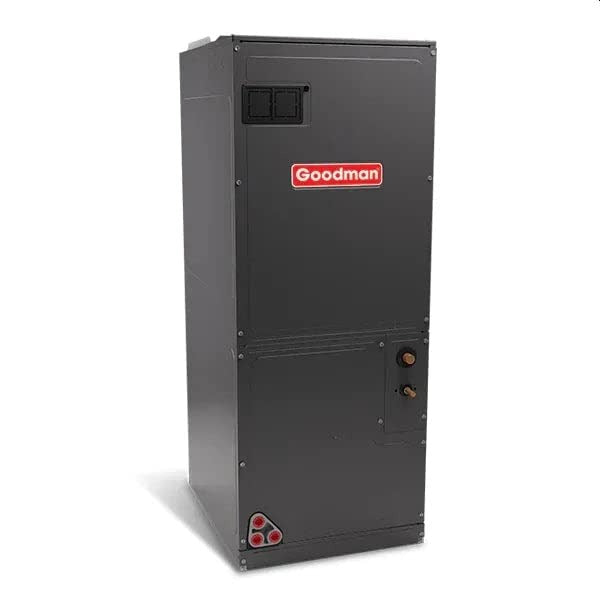

Goodman ASPT47D14 Air Handler 4 Ton

Product Description

The Goodman ASPT47D14 air handler is a 4-ton split-system air conditioner component designed for residential or light commercial use. It operates on 240 Volts and uses R 410A refrigerant. This air handler features an air purification filter for improved air quality.

• Features an air purification filter
• Operates on 240 Volts
• Designed for split system installation

Product Highlights

The Goodman ASPT47D14 air handler provides efficient air handling with an air purification filter and is designed for split system installation.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ASPT47D14
• Country of Origin: USA

Technical Specifications

• Voltage: 240 Volts
• Item Model Number: ASPT47D14
• Refrigerant: R 410A
• Power Source: Corded Electric
• Special Feature: Air Purification Filter
• Installation Type: Split System
• Model Info: ASPT47D14
• Model Name: ASPT47D14
• Manufacturer: Goodman
• Brand: Goodman
• Model / MPN: ASPT47D14
• Cooling Capacity: 3.5 Ton
• Cabinet Width: 24.5"
• Voltage Rating: 208/240 V
• Phase: 1 Phase
• Frequency: 60 Hz
• Series: ASPT
• BTU Rating: 42000 Btu/hr Cooling
• HP Rating: 3/4 hp
• Amperage Rating: 5.6 A Minimum Circuit
• Configuration: Multi-Position
• Refrigerant Type: R-410A
• Connection Type: 7/8 in Suction, 3/8 in Liquid, 3/4 in FPT Coil Drain
• Fuse Rating: 15 A
• Finish: Galvanized, Leather Grain-Embossed, Painted
• Product Height (in): 53.438
• Product Length (in): 21
• Air Flow Direction: Downflow, Horizontal, Upflow
• Blower Motor: Multi Speed
• Electrical Phase: 1-Phase
• Heat Strip Compatibility: Up to 20 kW
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 15 amps
• Suction Line Size: 7/8 inch
• System Application Type: Central Split Systems
