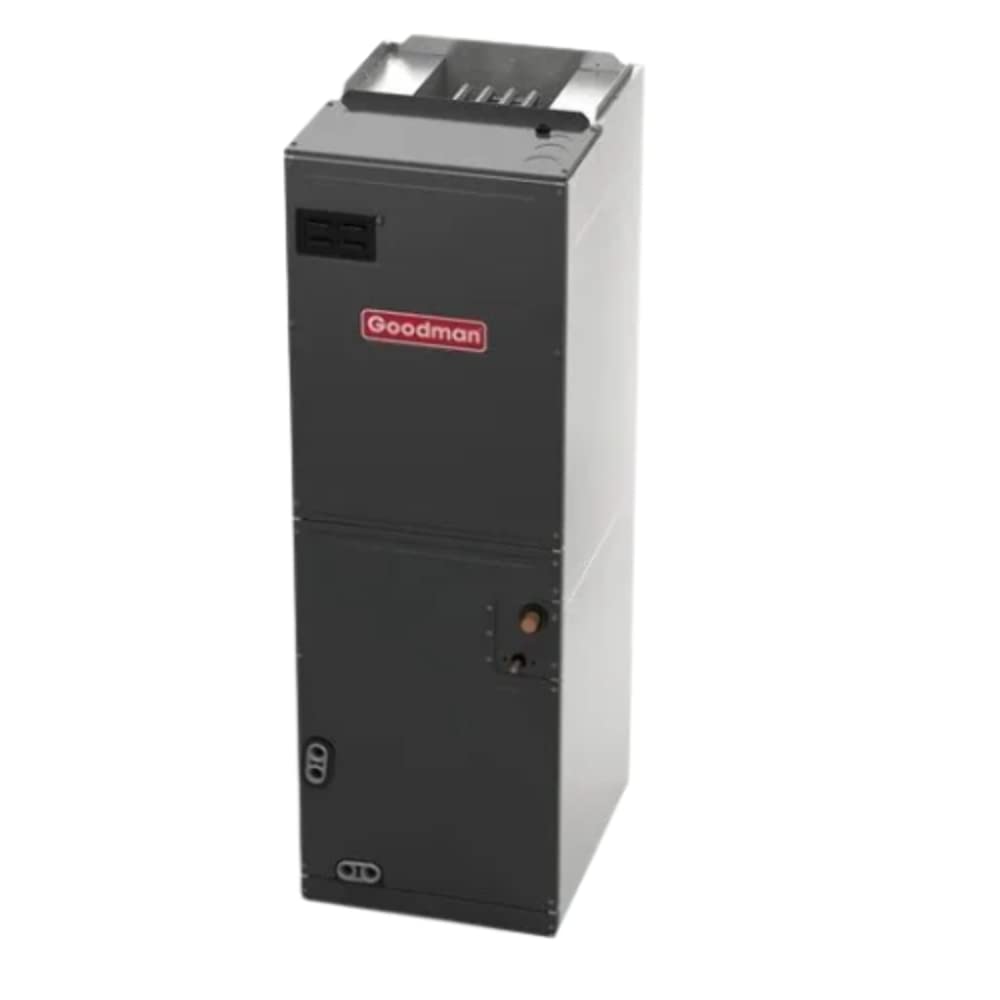

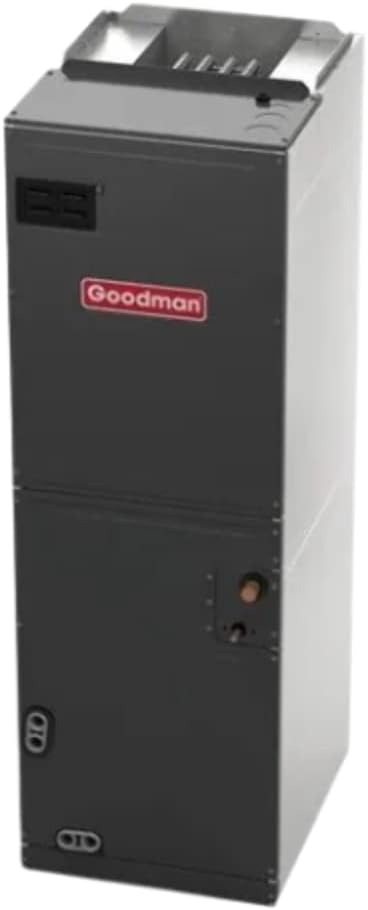

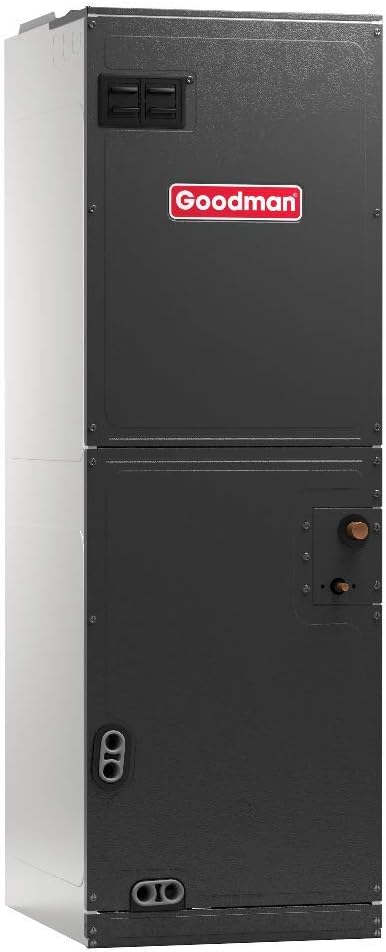

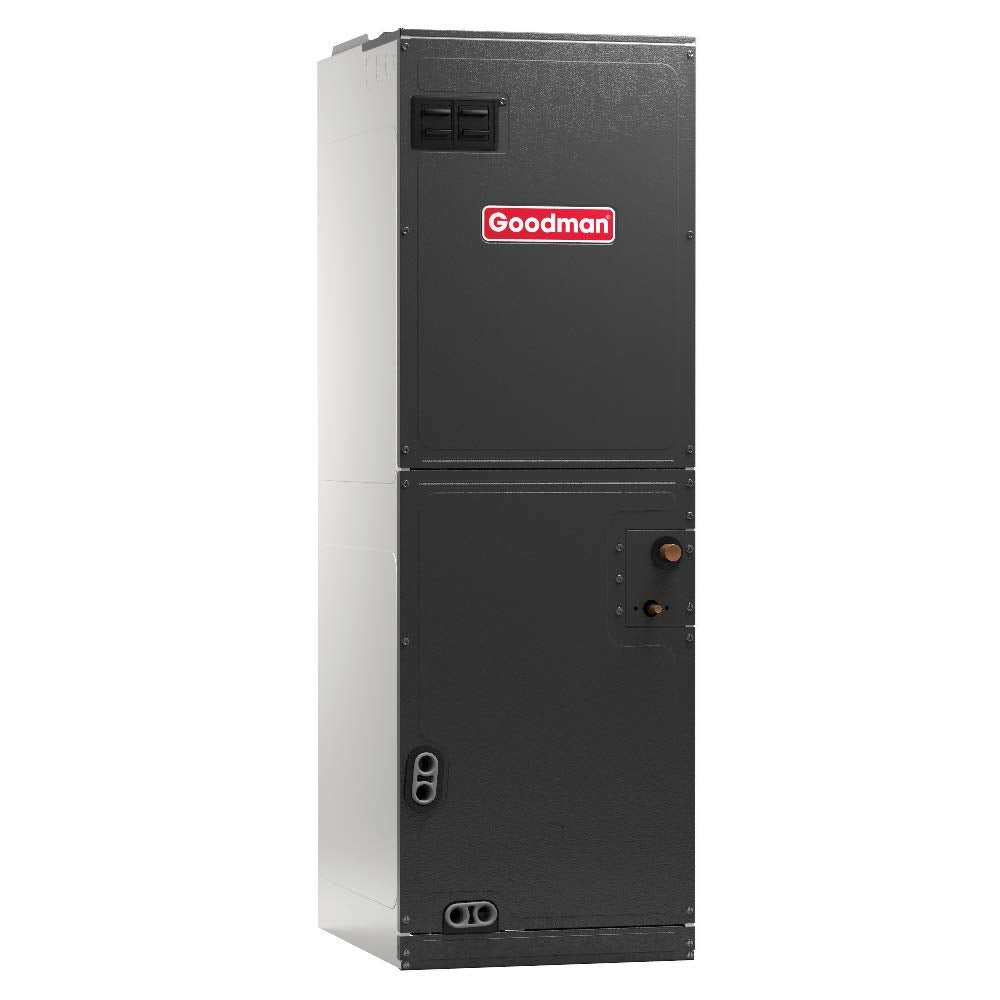

Goodman ARUF37D14 Air Handler 3 Ton

Product Description

The Goodman ARUF37D14 is a 3 Ton air handler designed for effective air distribution. It features an all-aluminum evaporator coil and a multi-speed fan motor. Designed for easy installation and long lifespan, this air handler ensures your home stays comfortable and your central system runs efficiently. The ARUF37D14 removes moisture from the air, allowing you to feel cool at higher temperatures.

• Features an all-aluminum evaporator coil for efficient heat transfer.
• Equipped with a multi-speed PSC blower motor.
• Designed to remove moisture from the air.

Product Highlights

The Goodman ARUF37D14 air handler provides efficient air distribution and dehumidification for enhanced home comfort.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ARUF37D14

Technical Specifications

• Item Model Number: ARUF37D14
• Brand: Goodman
• Manufacturer: Goodman
• MPN: ARUF37D14
• Voltage: 208/230 Volts
• Motor: 2.85 FLA; 1/3 HP
• Motor Type: Multi-speed blower
• Type: Air Handler
• Product Line: ARUF
• Product Category: Air Handler
• Refrigerant Type: R-410A
• Blower Motor Type: Multi-Speed
• Mount Type: Multi-Position
• Installation Location: Indoor
• Electric Heat: Available
• TXV Installed: No
• Capacity: 3.0 Tons
• Nominal Cooling Capacity: 36000 BTU
• Maximum Air Flow: 1680 CFM
• Minimum Air Flow: 1070 CFM
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 4 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 24 1/2 Inches
• Product Height: 53 7/16 Inches
• Product Width: 24 1/2 Inches
• Product Depth: 21 Inches
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• SEER Rating: 13
• BTU Rating: 36000 Btu/hr Cooling
• Nominal Capacity: 3 ton
• HP Rating: 1/3 hp
• Voltage Rating: 208 - 240 VAC
• Amperage Rating: 4 A Minimum Circuit
• Configuration: Multi-Position
• Connection Type: 7/8 in Suction, 3/8 in Liquid, 3/4 in FPT Coil Drain
• Fuse Rating: 15 A
• Finish: Galvanized, Leather Grain-Embossed
