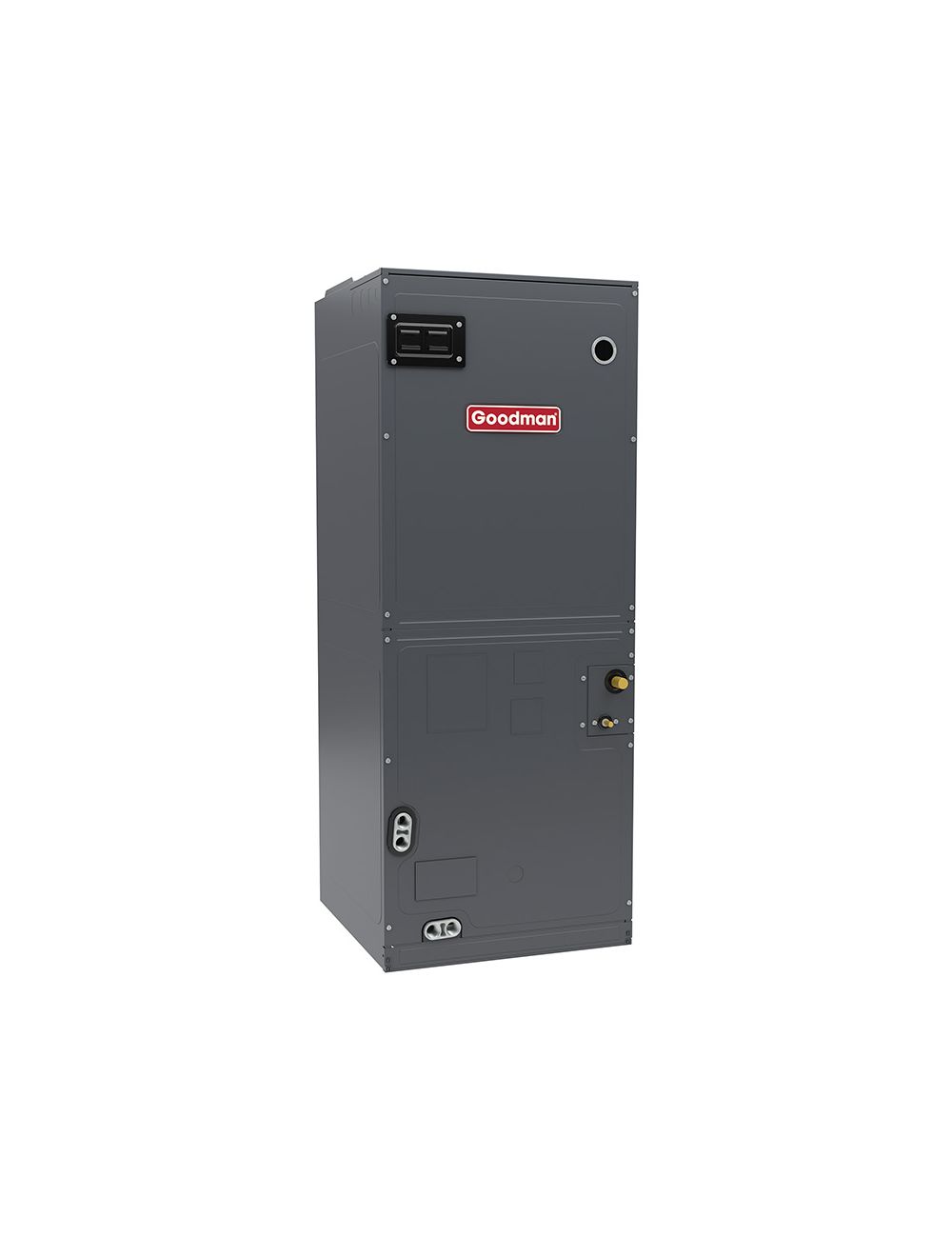

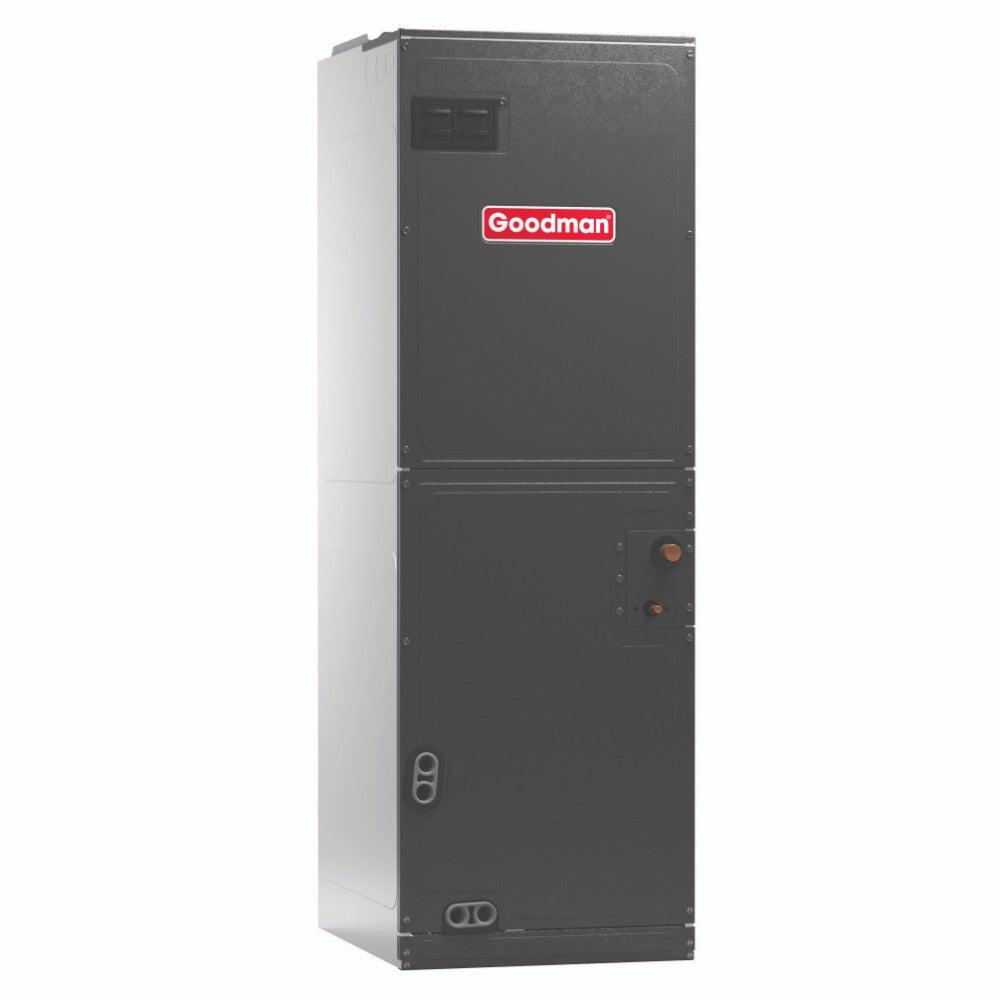

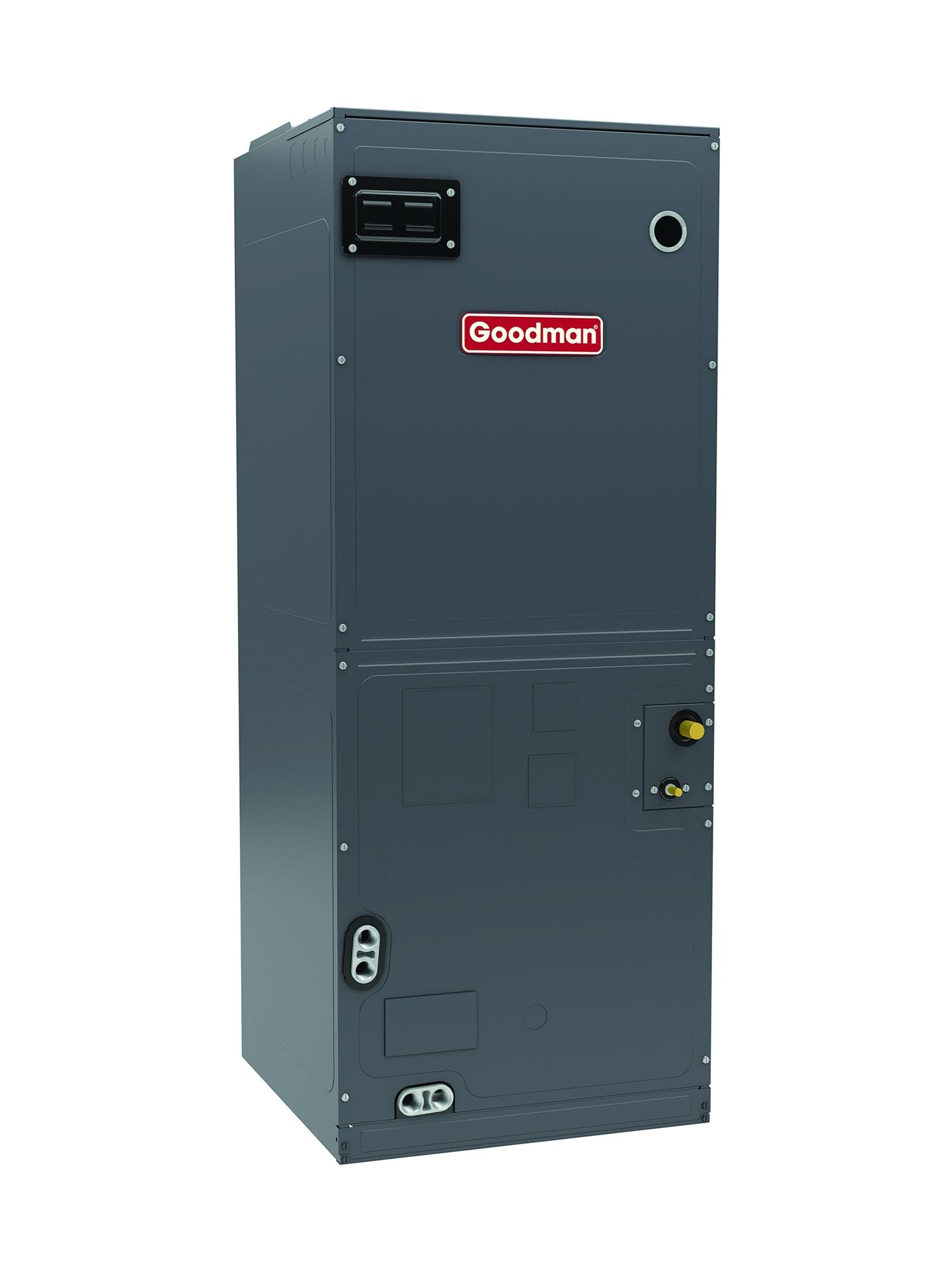

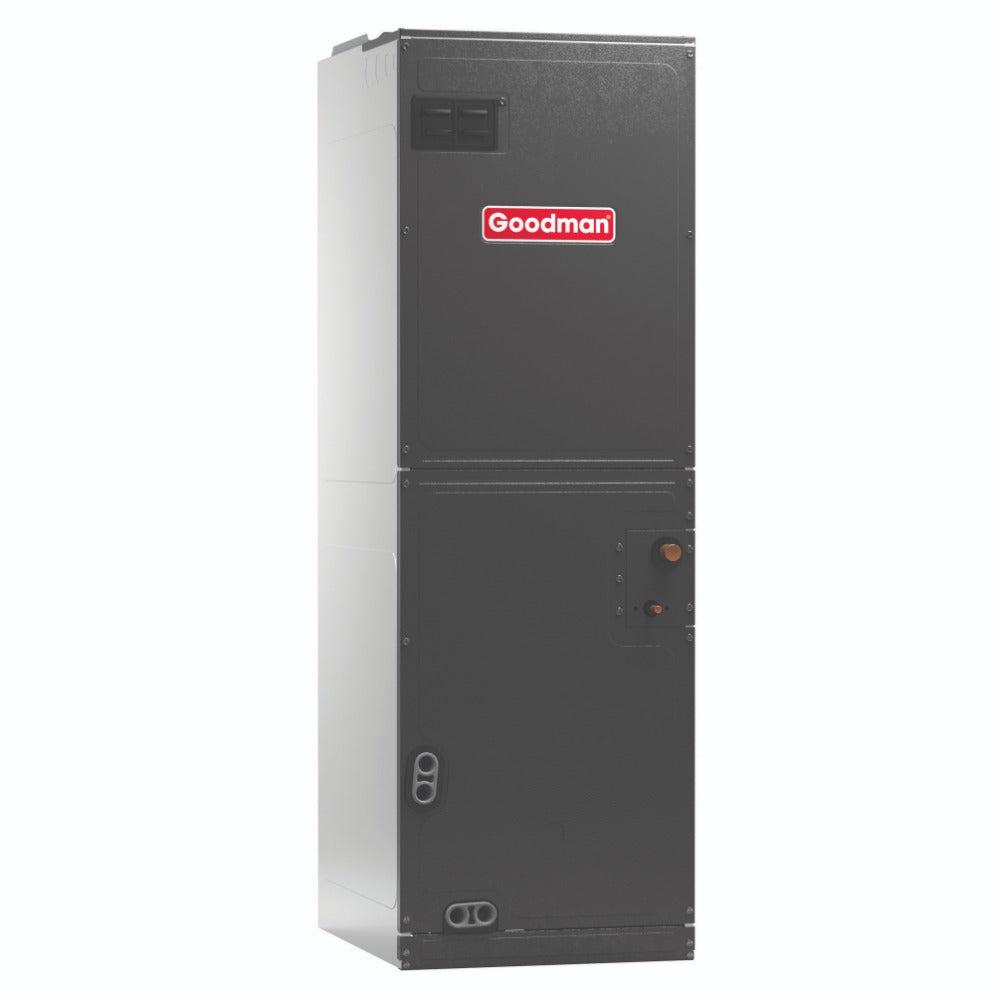

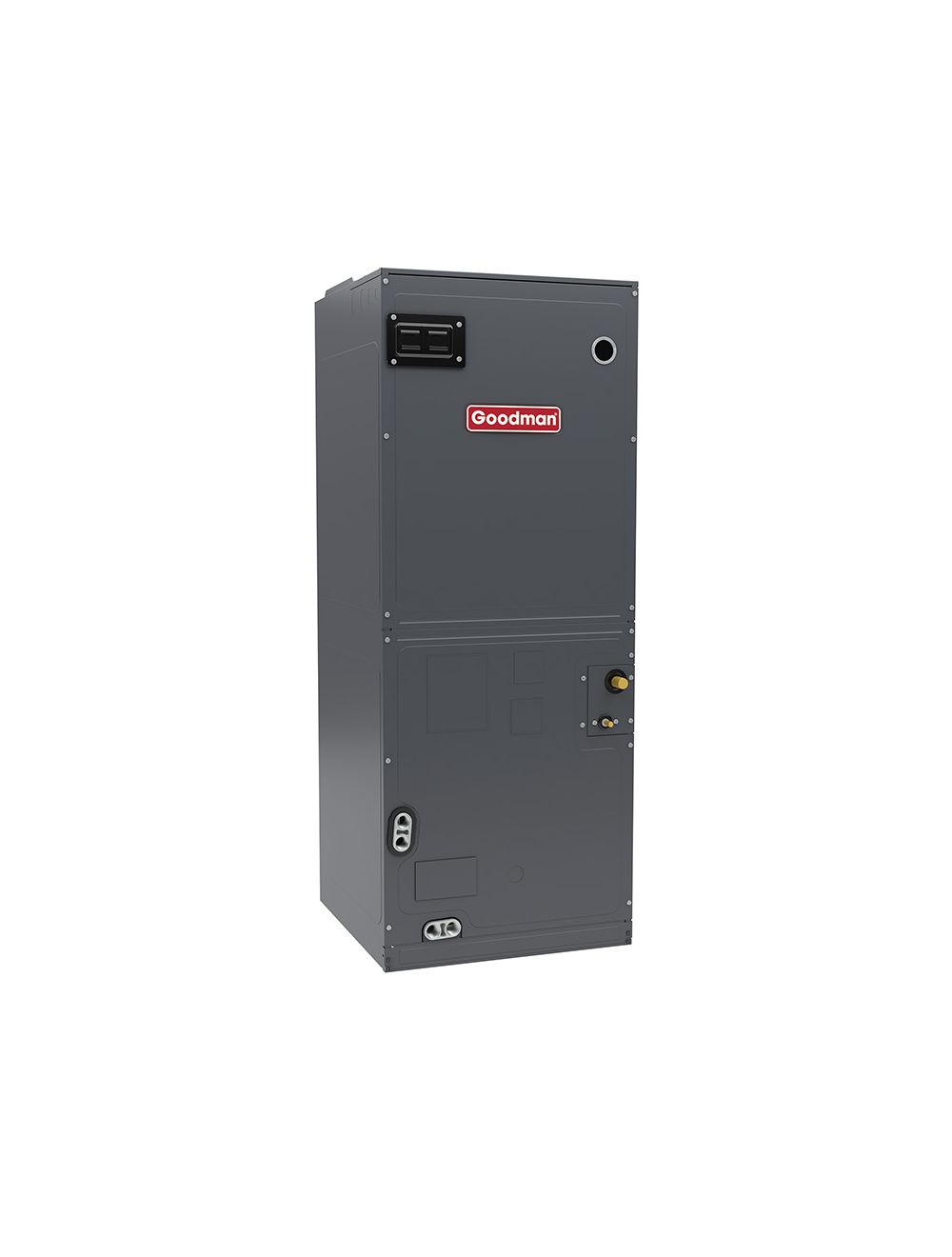

Goodman AMVT42CP1300 3.5 Ton Multi-Position Variable Speed Air Handler

Product Description

The Goodman AMVT42CP1300 is a three and a half ton air handler built for multi-position installation. It has a variable-speed ECM blower motor for effective air distribution. This air handler features an all-aluminum evaporator coil along with an internal thermal expansion valve (TXV). It is specifically designed for R-32 refrigerant and works with multi-stage heat pumps and cooling systems.

• Variable-speed ECM blower motor
• Internal factory-installed thermal expansion valve
• Compatible with R-32 refrigerant

Product Highlights

The air handler operates over a range of static pressure conditions, ensuring constant air flow. Its flexibility allows for installation in various positions, making it suitable for different setups and needs.

Product Information

Standard Information

• Brand: Goodman
• Manufacturer Part Number: AMVT42CP1300

Technical Specifications

• Product Line: AMVT
• Type: Air Handler
• Refrigerant Type: R-32
• Capacity: 3.5 Tons
• Cooling BTU: 42000 BTU
• Blower Motor Type: ECM Variable-Speed
• Configuration: Upflow/Downflow
• Mount Type: Multi-Position
• Installation Location: Indoor
• TXV Installed: Yes
• Maximum Air Flow: 1400 CFM
• Minimum Air Flow: 804 CFM
• Input Voltage: 208/230 Volts
• Frequency: 60 Hz
• Cabinet Width: 21 Inches
• Product Height: 53.4375 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Shipping Weight: 158 Pounds
• Parts Warranty: 10 Limited Years
• Fuel Type: Electricity
• Blower Type: Variable Speed
• Refrigerant Detection System: On-Board
