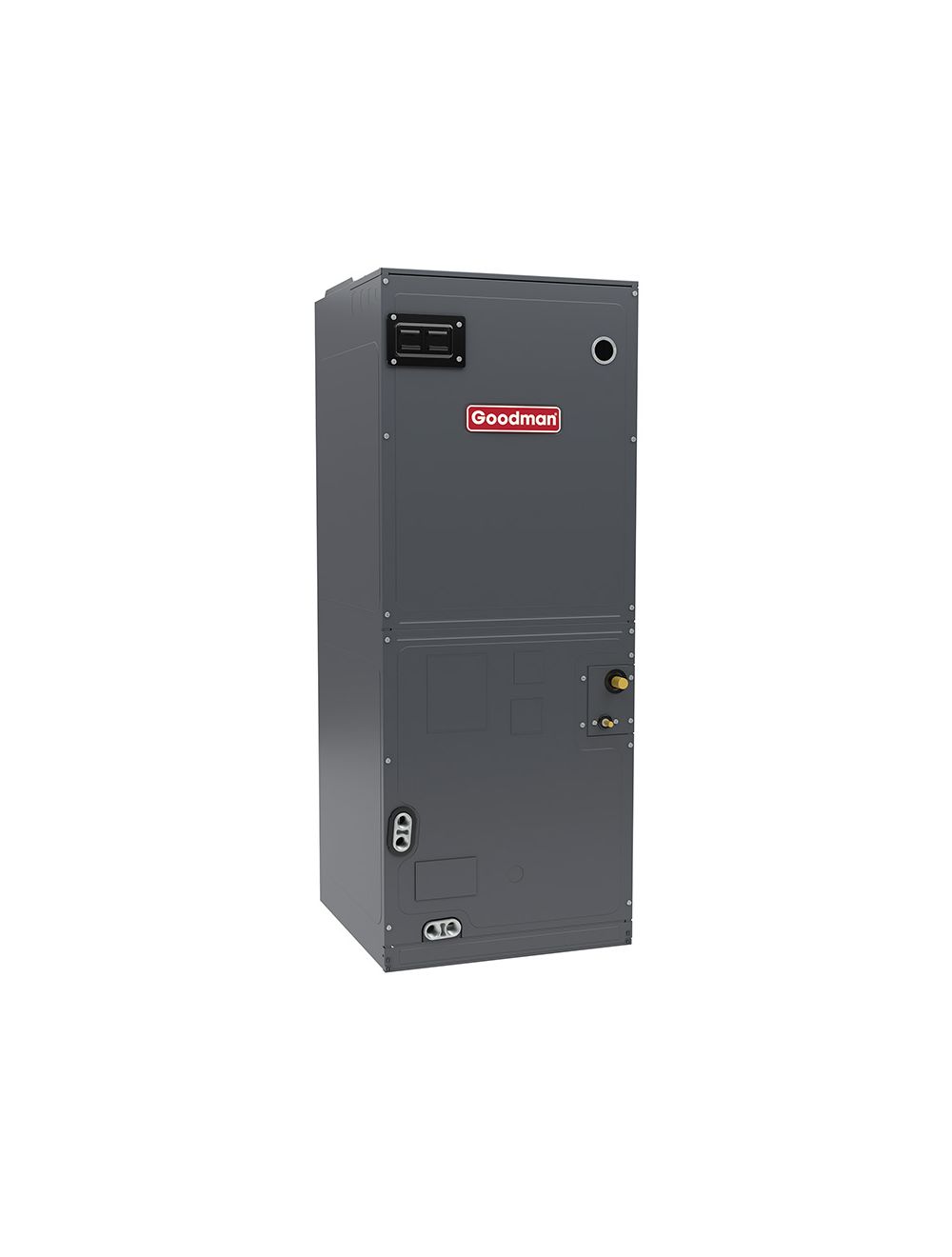

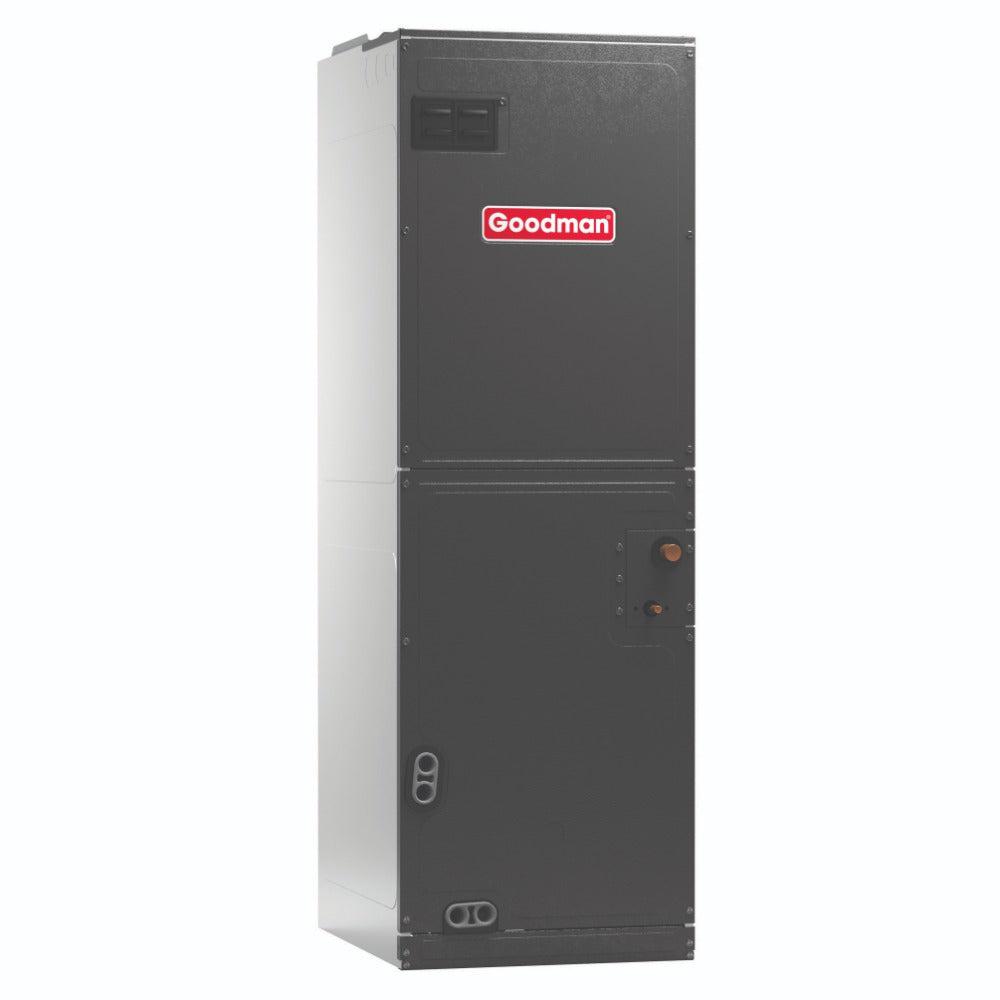

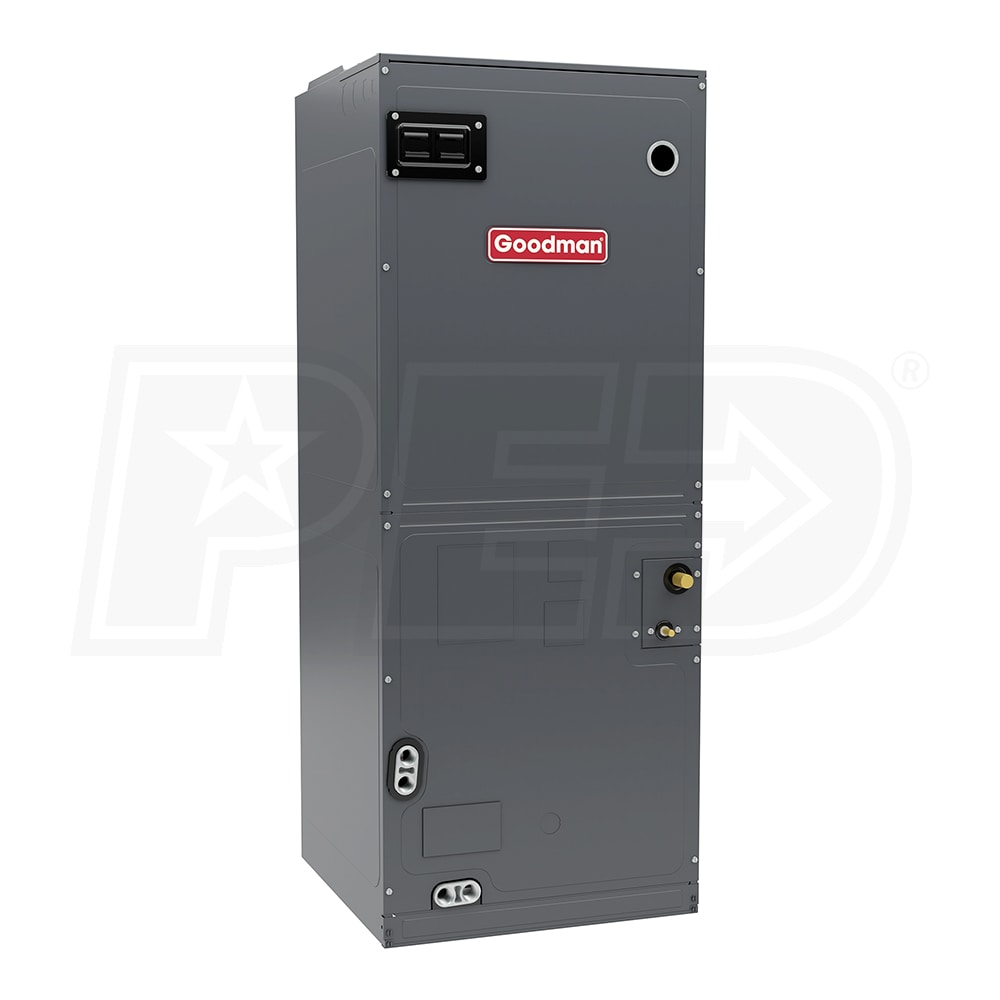

Goodman AMVT30BP1300 2.5 Ton Multi-Position Air Handler

Product Description

The Goodman AMVT30BP1300 is a multi-position air handler, suitable for effective air distribution in different home sizes. It features an all-aluminum evaporator coil and a thermoplastic drain pan for durability. The unit includes a variable-speed ECM blower motor for efficient performance and an internal thermostatic expansion valve optimized for R-32 refrigerant. The multi-position design allows for upflow, downflow, or horizontal installation to fit various setups.

• Equipped with a variable-speed ECM blower motor.
• Compatible with multi-stage heat pump and cooling applications.
• Designed for multiple installation configurations.

Product Highlights

This air handler is efficient and versatile, providing reliable airflow for your HVAC systems.

Product Information

Standard Information

• Brand: Goodman
• Product Line: AMVT

Technical Specifications

• Capacity: 2.5 Tons
• Cooling BTU: 30000
• Refrigerant Type: R-32
• Blower Motor Type: ECM Variable-Speed
• Configuration: Upflow/Downflow
• Mount Type: Multi-Position
• Indoor Installation: Yes
• Electric Heat: Available
• TXV Installed: Yes
• Maximum Air Flow: 1000 CFM
• Minimum Air Flow: 402 CFM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 4.9 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 17.5 Inches
• Height: 53.4375 Inches
• Width: 17.5 Inches
• Depth: 21 Inches
• Weight: 119 Pounds
• Shipping Weight: 134 Pounds
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
• Electric Heat Capabilities: 10 / 15 / 5 / 8 Kilowatts
• Blower Motor Horsepower: 1/2 HP
• Multi-Stage Compressor Compatible: Yes
• Return Air Opening Size: 19.5 x 12.5 Inches
• Supply Air Opening Size: 16.313 x 11.313 Inches
• ENERGY STAR Capable: Yes
• Refrigerant Metering Device: TXV
