Amana-Goodman PCBBF124S ControlBoardW/Ignitor&Harness

Product Description

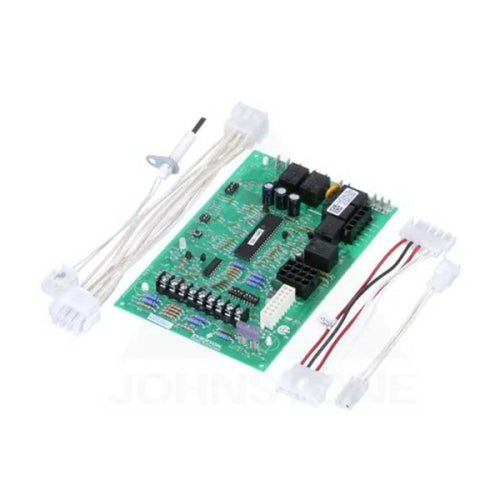

The Amana-Goodman Control Board with Ignitor and Harness (PCBBF124S) is designed for efficient operation of your heating system. The integrated ignitor and harness provide a comprehensive solution for replacing faulty or damaged components.

• Compatible with Amana-Goodman heating systems
• Integrated ignitor and harness
• Advanced circuitry for precise temperature control

Product Highlights

Ensure reliable performance with this high-quality control board. It handles various furnace functions such as ignition, flame sensing, and temperature regulation. With its durable construction, this control board is built to last.

Product Information

Standard Information

• Item Number: PCBBF124S
• Brand: Amana-Goodman
• Minimum Order Qty: 1

Technical Specifications

• Voltage Rating: 25VAC
• Amperage Rating: 500mA at 25VAC Maximum Input
• Frequency Rating: 60 Hz
• Dimensions: 8.125 inches x 5.25 inches
• Temperature Rating: -40 to 175 Degrees Fahrenheit (Operating)
• Stage: 2
• Includes: (1) PCBBF107 Hot Surface Ignition Control, (3) Wiring Harness, (1) 0130F00008S Ignitor, (1) IO-753 Installation Instructions, (1) 5001-2614 Diagnostic Flash Code Chart
