Goodman alzs5ba3010 Split Heat Pump 2.5 Ton 15.2 SEER2

Product Description

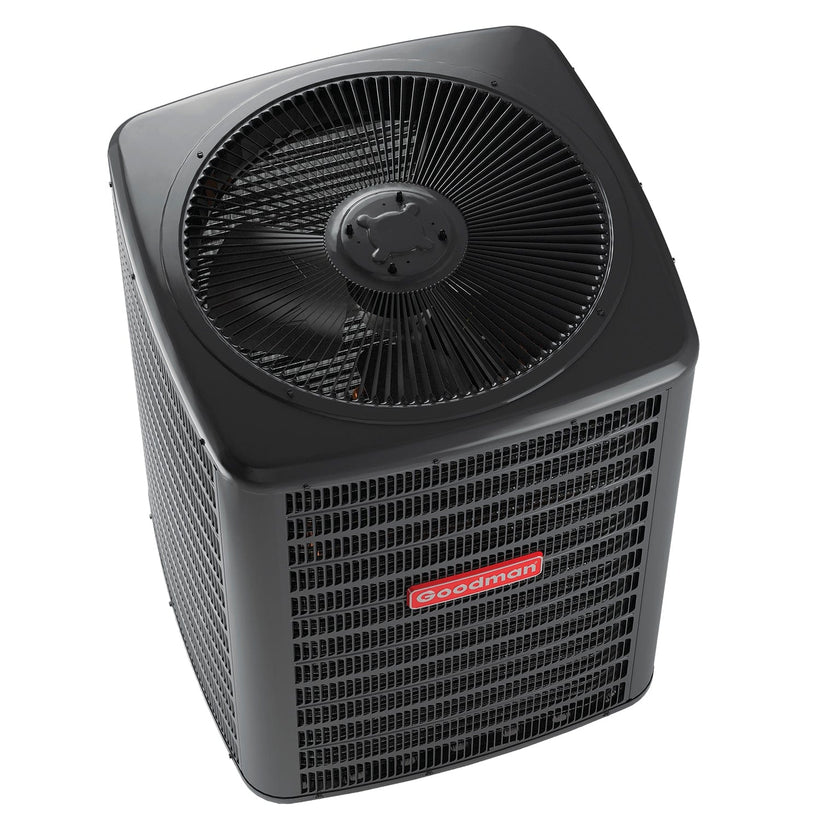

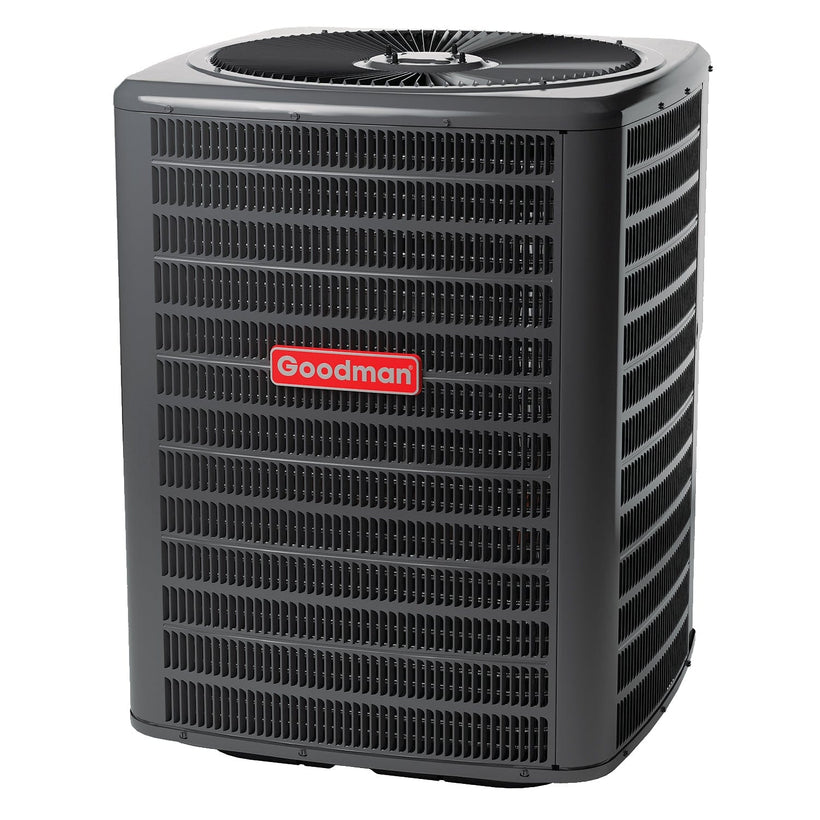

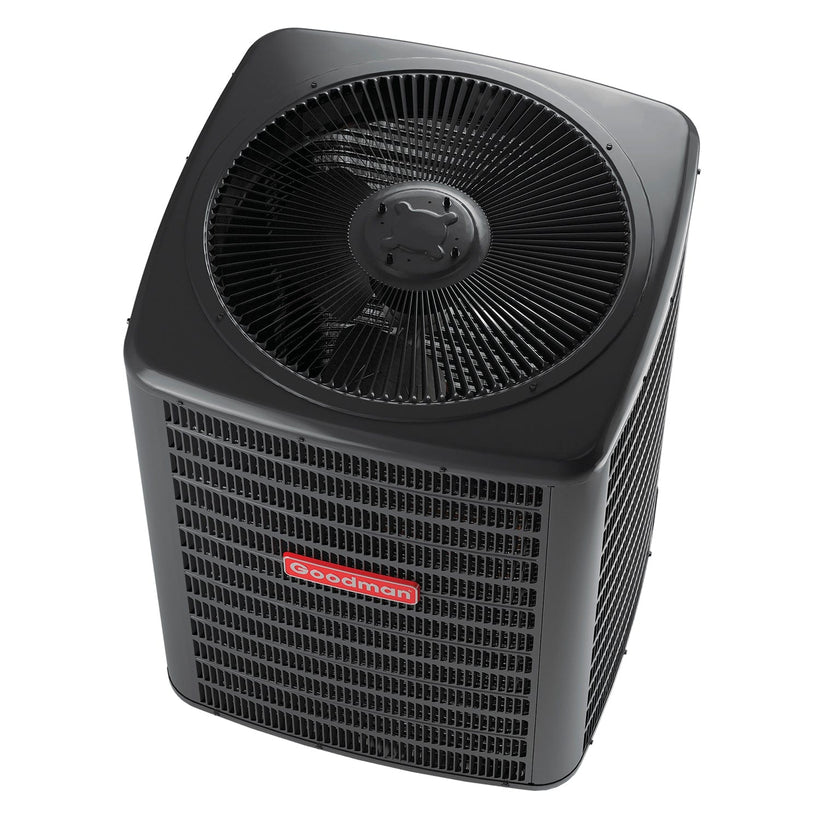

The GOODMAN alzs5ba3010 is a 2.5-ton, single-stage outdoor split heat pump designed for residential and light-commercial HVAC systems. It operates on R-32 refrigerant and delivers a rated cooling capacity of 30,000 BTU/h with a 15.2 SEER2 efficiency rating and an EER2 of 12.5. The unit uses a scroll compressor and a top-discharge cabinet configuration. Rated heating capacity is 28,600 BTU/h with an HSPF2 of 7.8. This unit is manufactured in the United States, carries ENERGY STAR certification, and meets DOE regional compliance requirements across all regions. Licensed HVAC technicians handle installation and commissioning.

The alzs5ba3010 is suited for split-system heat pump installations in residential single-family, multi-family, and light-commercial applications where non-communicating, single-stage equipment is specified. The unit is rated for cooling operation between 55 degrees F and 125 degrees F ambient, and for heating operation between -20 degrees F and 70 degrees F ambient, making it viable in cold-climate zones without supplemental lockout concerns at moderate low-ambient conditions. Top-discharge airflow supports standard pad or rooftop outdoor unit placement.

Key Features

• 15.2 SEER2 and 7.8 HSPF2 efficiency ratings meet current federal minimum standards with margin
• R-32 refrigerant with factory charge of 94 oz and pre-charged line length of 15 ft
• Single-stage scroll compressor with single-speed motor for straightforward controls integration
• Non-communicating design compatible with conventional thermostat wiring and standard low-voltage controls
• Cold-climate heating capability rated down to -20 degrees F ambient
• ENERGY STAR certified and ISO certified; manufactured in the United States

Compatibility

The alzs5ba3010 is a non-communicating split heat pump outdoor unit in the ALZS5B series. Components referenced in product data include accessory and matching-component part numbers 0161R00128, ABK-20, CSR-U-1, FSK01A, OT18-60A, and TXV-FX-KX-3T. Consult the manufacturer matchup tool or equipment submittals to confirm the appropriate indoor air handler or coil pairing for a complete rated system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing the unit. R-32 is a mildly flammable (A2L) refrigerant — technicians must follow applicable safety practices and use tools rated for A2L refrigerants during line set connection and charging. Minimum circuit ampacity is 17.1 A and maximum overcurrent protection is 25 A; field wiring must be sized accordingly per NEC requirements.

Technical Specifications

• Tonnage: 2.5 tons
• Cooling Capacity (Nominal): 30,000 BTU/h
• Heating Capacity (Rated): 28,600 BTU/h
• SEER2: 15.2
• EER2: 12.5
• HSPF2: 7.8
• Power Supply: 208/230 volts, 1-phase, 60 Hz
• Minimum Circuit Amps: 17.1 A
• Maximum Overcurrent Protection: 25 A
• Rated Load Amps: 12.9 A
• Compressor Type: Scroll, Single Stage
• Refrigerant Type: R-32
• Factory Refrigerant Charge: 94 oz
• Additional Refrigerant Charge: 0.55 lb per ft
• Pre-Charged Line Length: 15 ft
• Max Line Set Length: 200 ft
• Max Vertical Line Set: 79 ft
• Liquid Pipe Size: 3/8 inches
• Gas Pipe Size: 3/4 inches
• Liquid Valve Size (O.D.): 3/8 inches
• Suction Valve Size (O.D.): 3/4 inches
• Unit Height: 39.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Unit Weight: 215 pounds
• Sound Pressure (Cooling High): 73 dBA
• Cooling Operation Range: 55 degrees F to 125 degrees F ambient
• Heating Operation Range: -20 degrees F to 70 degrees F ambient
• Discharge Configuration: Top Discharge
• Communication Type: Non-Communicating
• DOE Regional Compliance: All Regions
• ENERGY STAR Certified: Yes
• ISO Certified: Yes
• Country of Origin: United States
• Residential Parts Warranty (Registered): 10 years parts; compressor 10 years unit replacement
• Residential Parts Warranty (Standard): 5 years parts
• Commercial Parts Warranty: 5 years parts

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: alzs5ba3010
