Goodman alxs5ba4810 Split Ac 15.2 SEER2 4 Ton R-32

Product Description

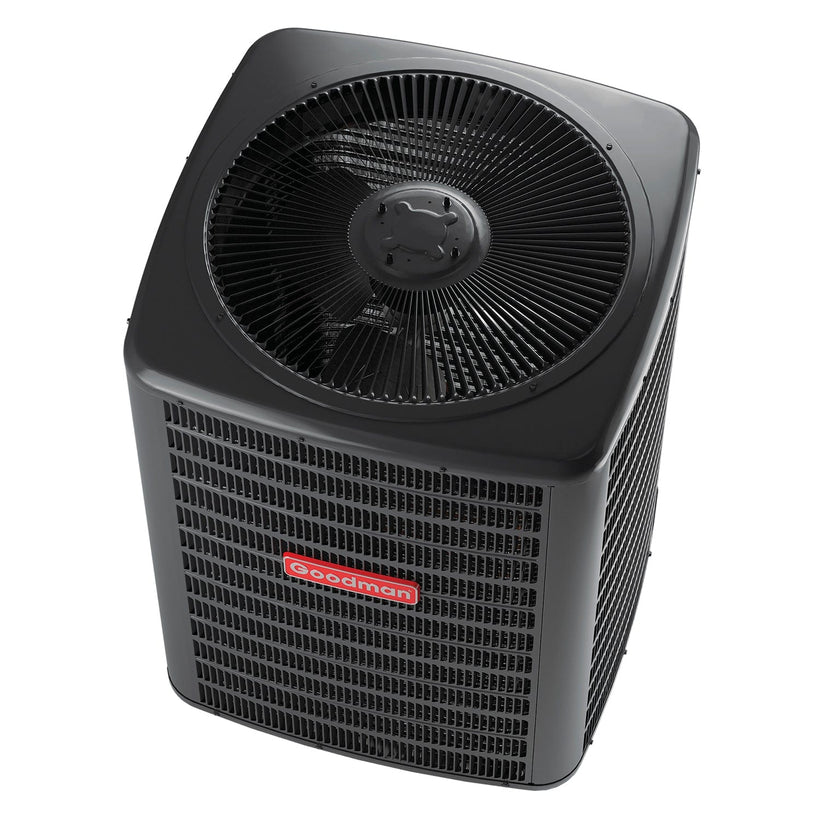

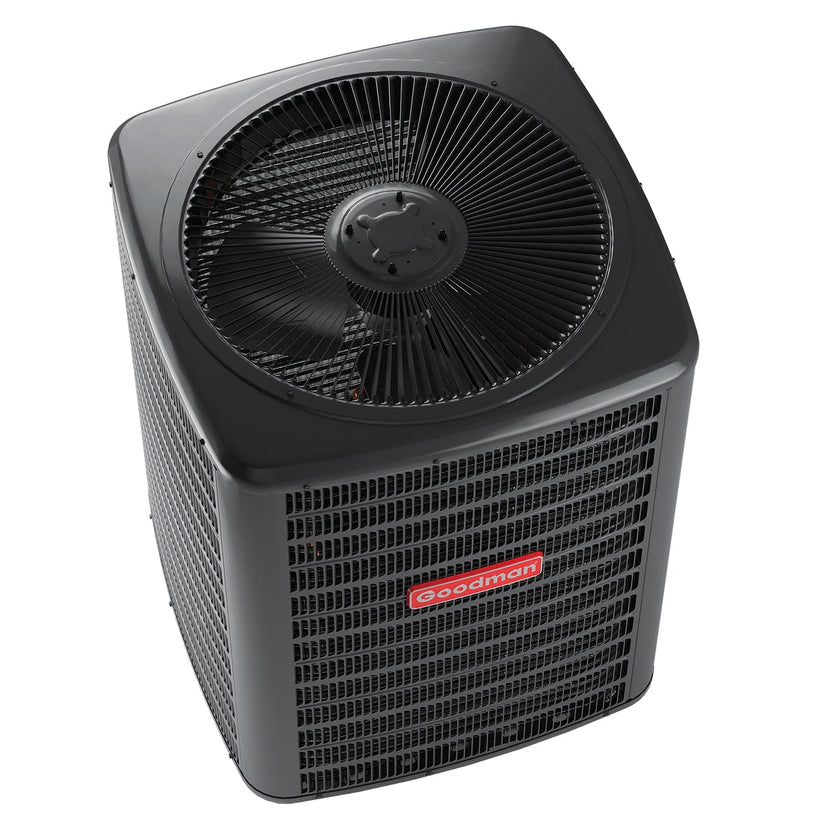

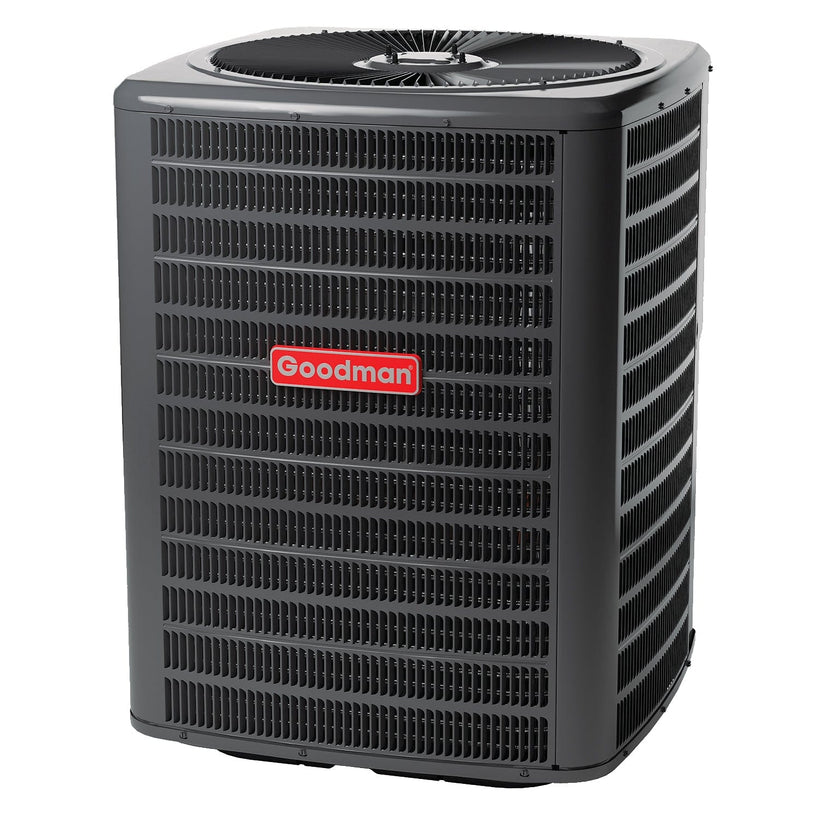

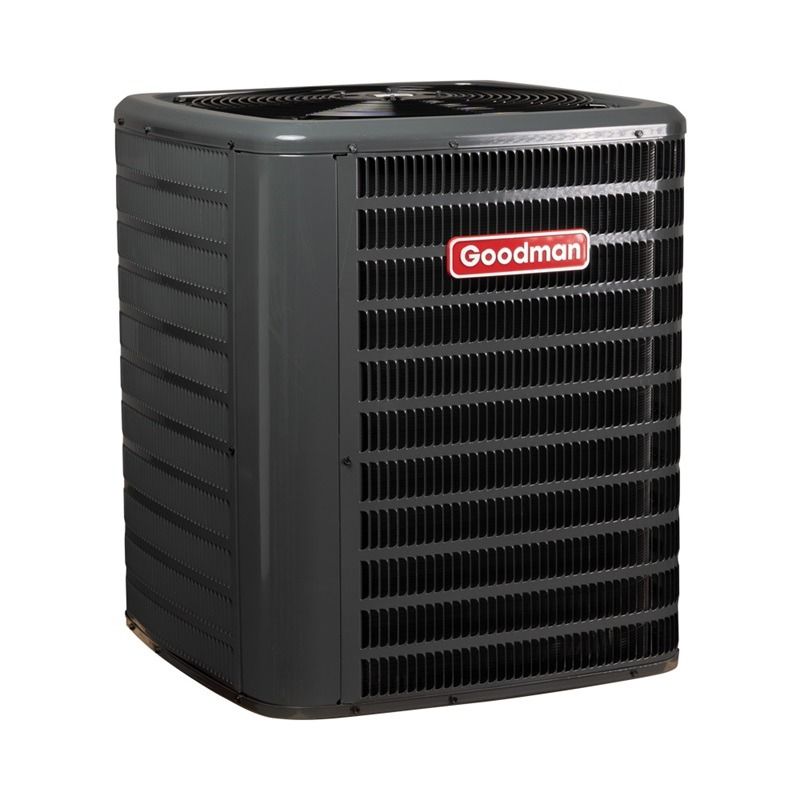

The Goodman alxs5ba4810 is a 4-ton, single-stage split system air conditioner designed for outdoor installation in residential and light commercial cooling applications. Operating on R-32 refrigerant and rated at 15.2 SEER2, this unit meets DOE regional compliance requirements across all regions. It uses a scroll compressor with a top-discharge cabinet configuration and runs on single-phase, 208/230-volt power at 60 Hz. Licensed HVAC technicians install this unit as the outdoor condensing section of a split system, pairing it with a compatible indoor coil and air handler. The unit is produced in the United States and is part of the ALXS5B series.

This condensing unit is suited for residential new construction and replacement installations, as well as multi-family and light commercial projects where a non-communicating, single-stage outdoor unit is specified. It operates within a cooling range of 55 degrees F to 115 degrees F ambient dry-bulb, making it appropriate for a wide range of U.S. climate zones. The top-discharge design is compatible with standard pad or rooftop mounting configurations. HVAC contractors selecting this unit for multi-family or commercial applications should note that warranty terms vary by installation category.

Key Features

• 15.2 SEER2 efficiency rating with DOE compliance for all regions
• R-32 refrigerant with a factory-standard charge of 138 oz and 15 ft pre-charged line length
• Single-stage scroll compressor for reliable cooling operation
• Top-discharge cabinet, 35.5 inches deep x 35.5 inches wide x 36.5 inches tall
• Non-communicating design for straightforward integration with standard thermostats and air handlers
• Produced in the United States; active release status

Compatibility

The alxs5ba4810 is a non-communicating outdoor condensing unit designed for use with compatible indoor coils and air handlers in a split system configuration. No specific compatible indoor unit model numbers were provided in the available product data. Consult the ALXS5B series application guide for approved indoor coil and air handler pairings.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with applicable local codes and the manufacturer installation instructions. Shut off all electrical power to the system at the disconnect and breaker before making any connections. Minimum circuit ampacity is 25.5 A and maximum overcurrent protection is 40 A; size disconnect and wiring accordingly per NEC requirements. The liquid line connection is 3/8 inch O.D. and the suction line connection is 7/8 inch O.D.; do not exceed the maximum line set length of 79 ft or the maximum vertical separation of 50 ft without consulting the manufacturer guidelines.

Technical Specifications

• Cooling Efficiency: 15.2 SEER2
• Tonnage: 4 Ton
• Refrigerant Type: R-32
• Factory Standard Refrigerant Charge: 138 oz
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• Power Voltage: 208/230 volts
• Power Phase: 1 Ph
• Power Frequency: 60 Hz
• Compressor RLA: 19.4 A
• Minimum Circuit Amps: 25.5 A
• Maximum Overcurrent Protection: 40 A
• Unit Height: 36.5 inches
• Unit Width: 35.5 inches
• Unit Depth: 35.5 inches
• Sound Pressure (Cooling High): 73.3 dBA
• Liquid Pipe Size: 3/8 inch
• Gas Pipe Size: 1-1/8 inch
• Liquid Valve Size (O.D.): 3/8 inch
• Suction Valve Size (O.D.): 7/8 inch
• Pre-Charged Line Length: 15 ft
• Maximum Standard Line Set Length: 79 ft
• Maximum Vertical Line Set Length: 50 ft
• Cooling Operation Range (Min Ambient): 55 degrees F
• Cooling Operation Range (Max Ambient): 115 degrees F
• Installation Configuration: Top Discharge
• Communication Feature: Non-Communicating
• Motor Speed Type: Single Speed
• DOE Regional Compliance: All Regions
• Country of Origin: United States
• Residential Registered Parts Warranty: 10 Years All Parts
• Residential Registered Compressor Warranty: 10 Years Unit Replacement
• Standard Parts Warranty (Residential): 5 Years All Parts
• Commercial Registered Parts Warranty: 5 Years All Parts
• Multi-Family Registered Parts Warranty: 10 Years All Parts

Standard Information

• Brand: Goodman
• Manufacturer Part Number: alxs5ba4810
