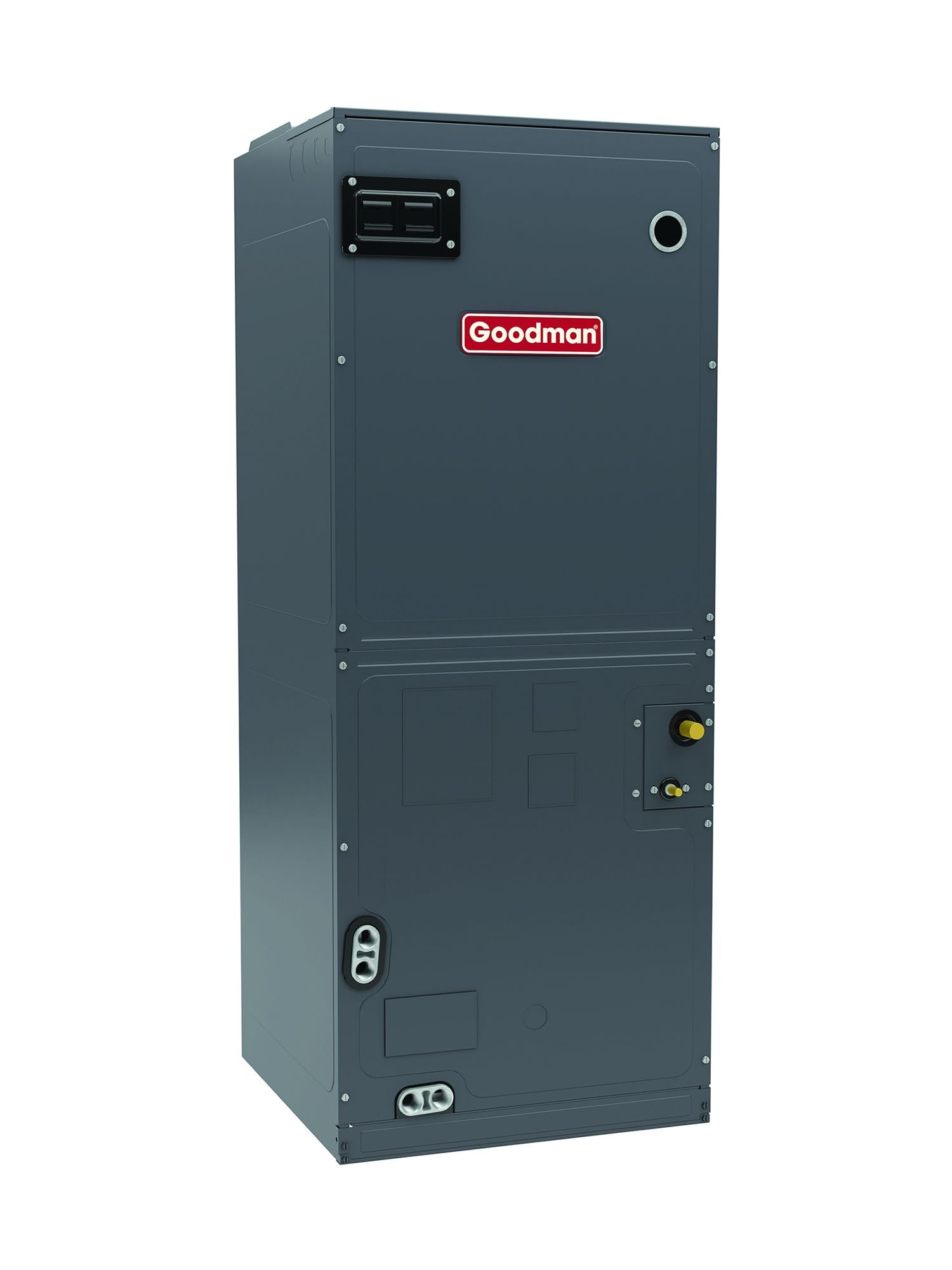

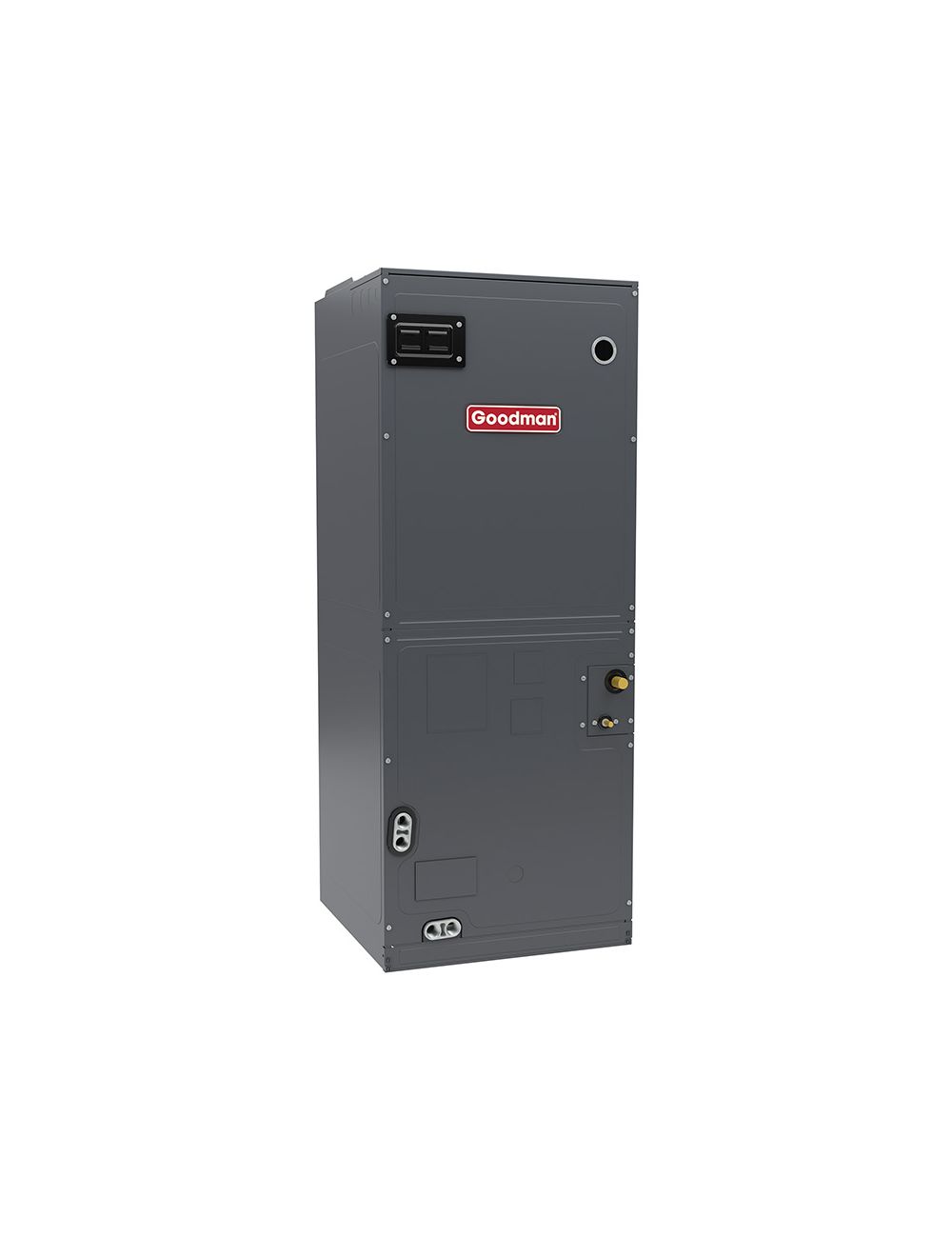

Goodman AHVE48DP1300 Air Handler 4.0 Ton R-32

Product Description

The Goodman AHVE48DP1300 is an efficient air handler designed for optimal air distribution in residential settings. This unit features an all-aluminum evaporator coil and a robust thermoplastic drain pan. It includes a variable-speed ECM blower motor for enhanced air flow control and comfort. The Electronic Expansion Valve (EEV) is another key feature that helps in maximizing system efficiency. Versatile in its installation, this air handler can be configured for both horizontal and vertical applications. It is suitable for indoor use and supports electric heating options.

• All-aluminum evaporator coil.
• Variable-speed ECM blower motor for flexible air flow.
• Configurable for horizontal or vertical installation.

Product Highlights

This air handler is a reliable choice for those seeking efficient indoor climate control. It works seamlessly with R-32 refrigerant and can accommodate indoor installations.

Product Information

Standard Information

• Brand: Goodman
• Model Number: AHVE48DP1300

Technical Specifications

• Product Line: AHVE
• Product Category: Air Handler
• Type: Air Handler
• Capacity: 4.0 Tons
• Cooling BTU: 48000
• Refrigerant Type: R-32
• Configuration: Horizontal
• Installation Location: Indoor
• Electric Heat: Available
• Blower Motor Type: ECM Variable-Speed
• Motor Type: ECM
• Voltage: 208/230 Volts
• Phase: 1
• Frequency: 60 Hz
• Maximum Air Flow: 1380 CFM
• Minimum Air Flow: 1260 CFM
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 24.5 Inches
• Product Height: 53.4375 Inches
• Product Depth: 21 Inches
• Cabinet Width: 24.5 Inches
• Product Weight: 135 Pounds
• Shipping Weight: 150 Pounds
• TXV Installed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 10 Limited Years
