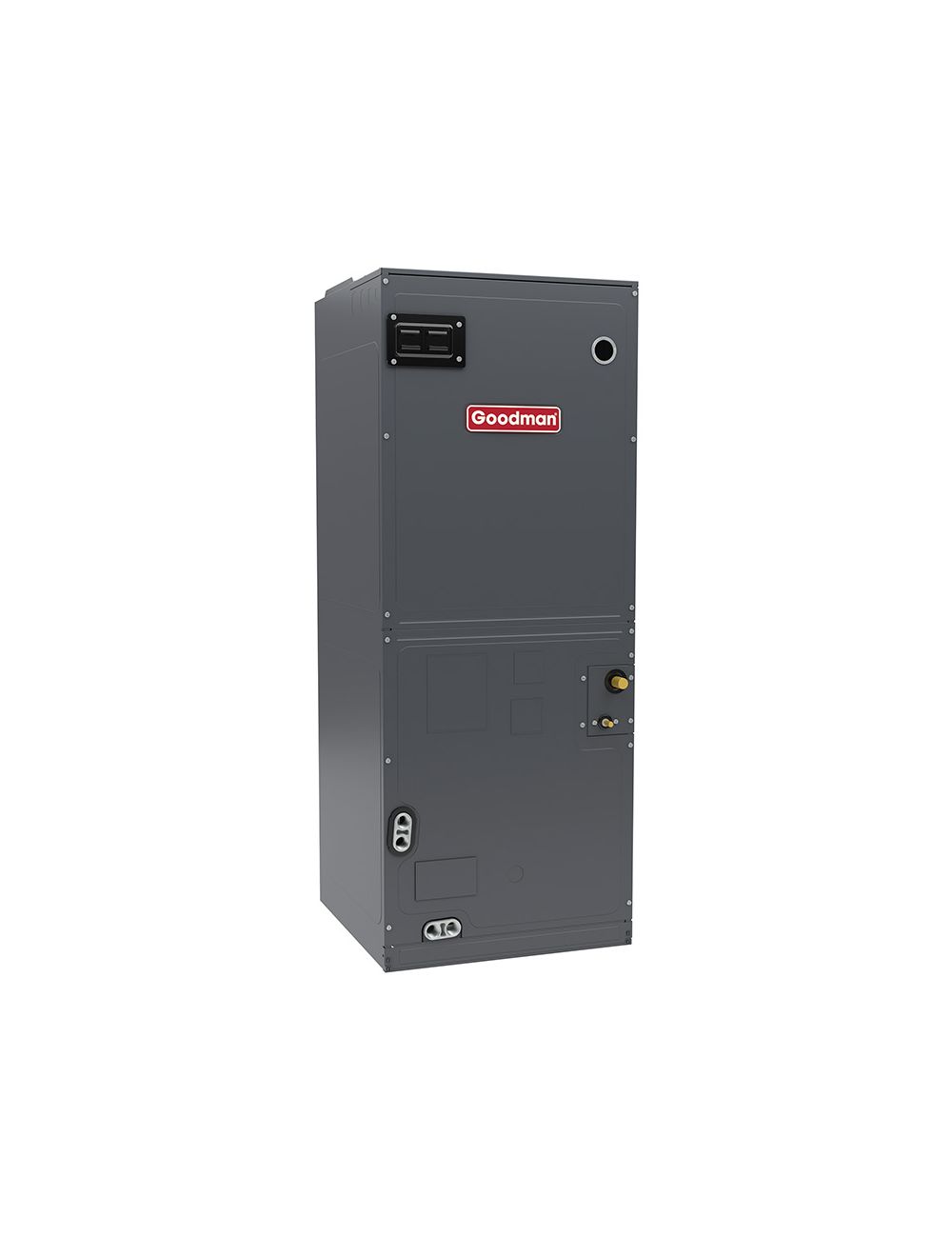

GOODMAN AHVE48DP0300 Goodman AHVE48DP0300 4.0 Ton Air Handler

Product Description

The Goodman AHVE48DP0300 is an air handler designed for efficient air distribution in homes. It features an all-aluminum evaporator coil, which enhances durability and performance. The unit is equipped with a thermoplastic drain pan that resists corrosion. Its variable-speed ECM blower motor ensures that airflow is adjusted according to need, providing optimal comfort.

• Capable of horizontal and vertical installations.
• Supports R-32 refrigerant for improved energy efficiency.
• Includes an Electronic Expansion Valve for precise cooling control.

Product Highlights

The Goodman AHVE48DP0300 is ideal for residential HVAC systems requiring a reliable air handler that can be adapted to various installation settings.

Product Information

Standard Information

• Brand: GOODMAN
• MPN: AHVE48DP0300

Technical Specifications

• Product Type: Air Handler
• Product Line: AHVE
• Refrigerant Type: R-32
• Capacity: 4.0 Tons
• Cooling BTU: 48000
• Configuration: Horizontal
• Installation Location: Indoor
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1380 CFM
• Minimum Air Flow: 1260 CFM
• Input Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Width: 24.5 Inches
• Product Height: 53.4375 Inches
• Product Depth: 21 Inches
• Product Weight: 135 Pounds
• Shipping Weight: 150 Pounds
• Certifications: AHRI Certified, ETL Listed, ISO Certified
• Warranty: 10 Limited Years
