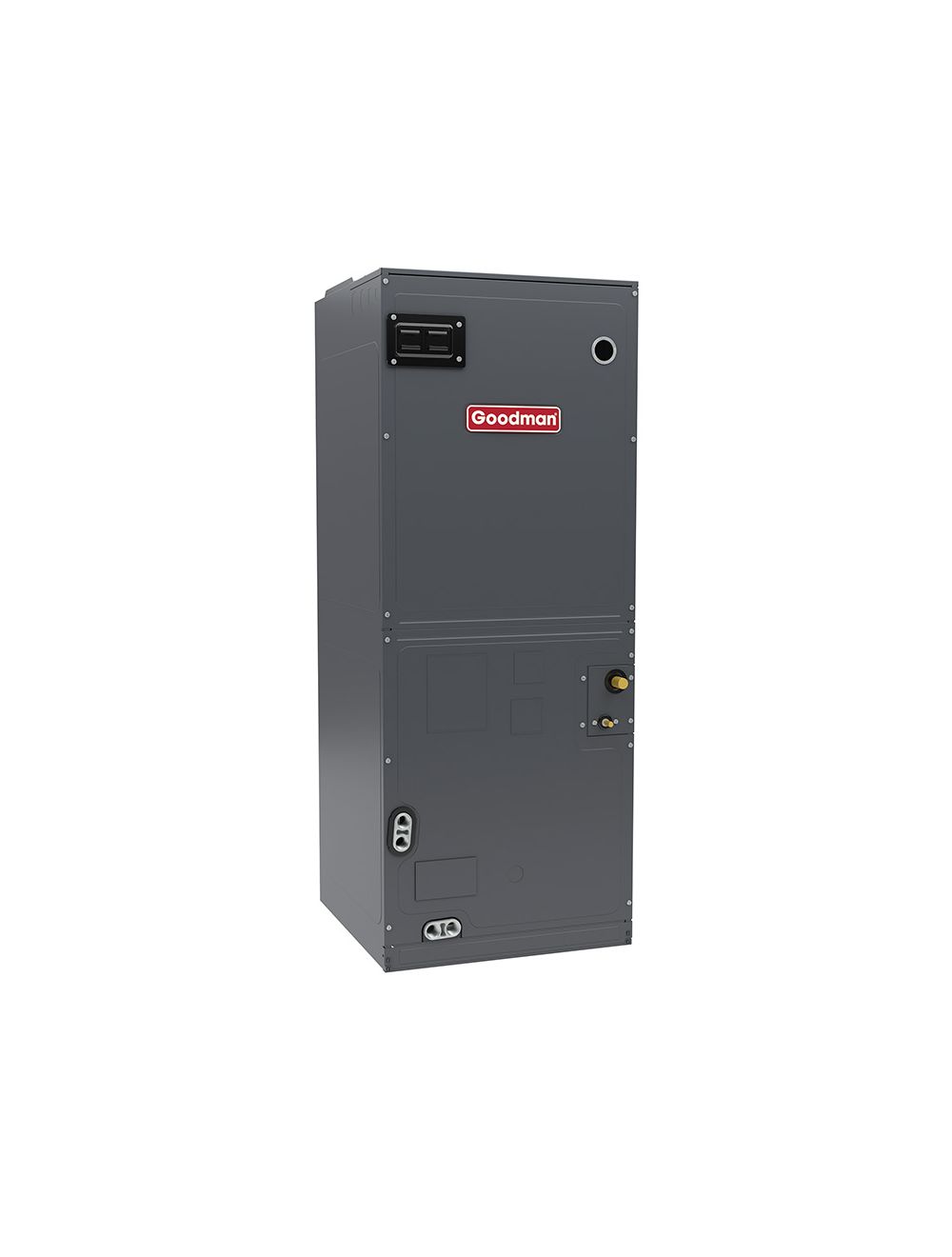

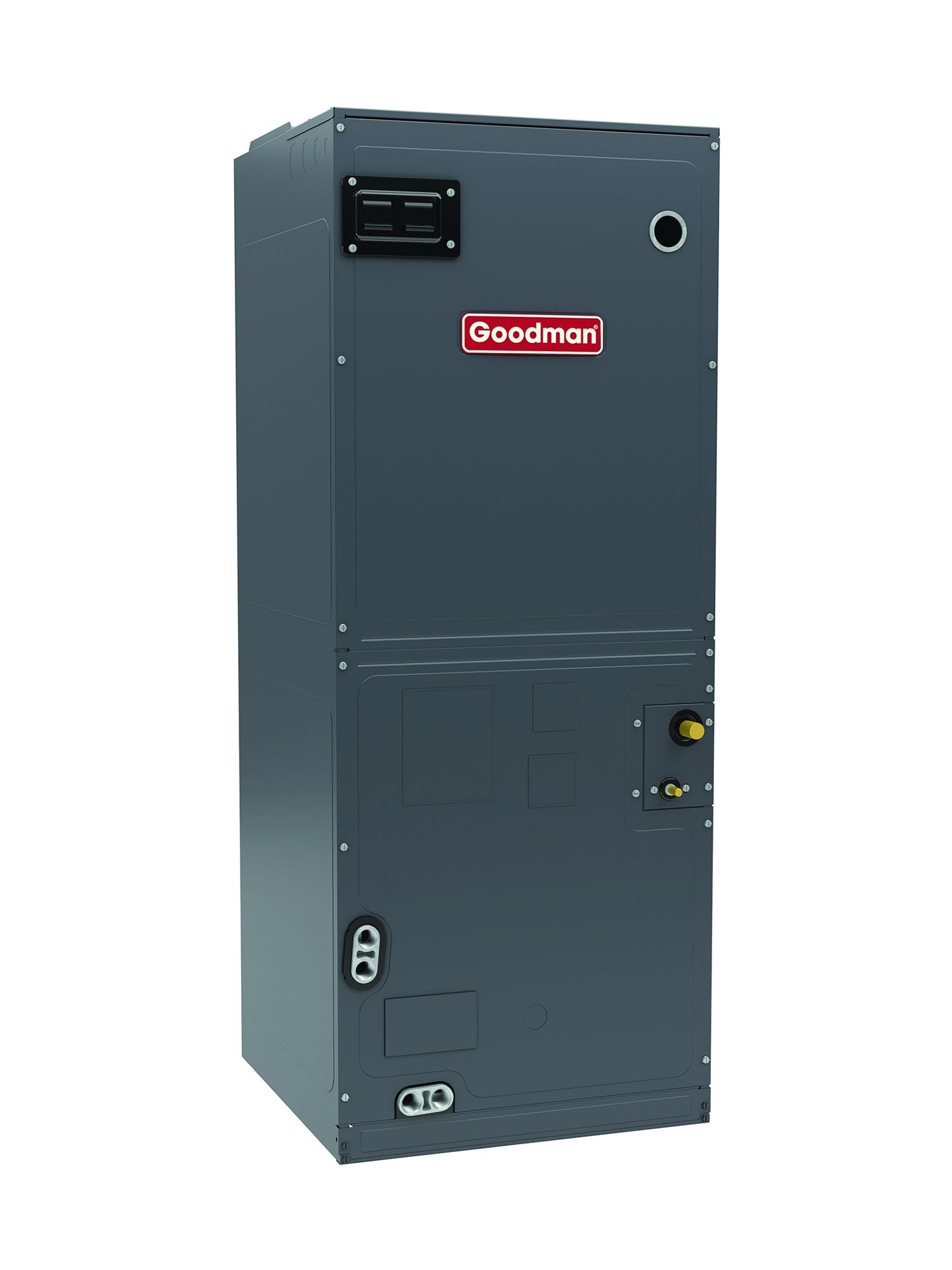

Goodman AHVE36CP1300 Air Handler 3 Ton Variable Speed ECM Blower

Product Description

The Goodman AHVE36CP1300 air handler offers versatile air distribution for optimal comfort in various settings. This unit allows for both horizontal and vertical installation, making it suitable for different layout configurations. Built with an all-aluminum evaporator coil and a thermoplastic drain pan, it enhances durability and efficiency. The variable-speed ECM blower motor ensures proper airflow while adapting to varying demand.

• Includes an Electronic Expansion Valve (EEV) for precise refrigerant flow.
• Equipped with an ECM variable-speed blower motor for efficient performance.
• Compatible with R-32 refrigerant for modern applications.

Product Highlights

This air handler is AHRI certified and ETL listed, ensuring high standards of quality and performance. Its efficient design supports a cooling capacity of three tons, making it an excellent choice for central split systems.

Product Information

Standard Information

• Brand: Goodman
• MPN: AHVE36CP1300

Technical Specifications

• Product Line: AHVE
• Type: Air Handler
• Configuration: Horizontal
• Installation Location: Indoor
• Refrigerant Type: R-32
• Cooling Capacity: 3.0 Tons
• Cooling BTU: 36000
• Blower Motor Type: ECM Variable-Speed
• Maximum Air Flow: 1260 CFM
• Minimum Air Flow: 800 CFM
• Input Voltage: 208/230 Volts
• Electrical Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 6.5 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Product Height: 53 7/16 Inches
• Product Width: 21 Inches
• Product Depth: 21 Inches
• Product Weight: 125 Pounds
• Shipping Weight: 140 Pounds
• Parts Warranty: 10 Limited Years
• Compressor Warranty: 10 Years
• Heat Strip Compatibility: Up to 18 kW
• System Application Type: Central Split Systems
• Voltage: 240
