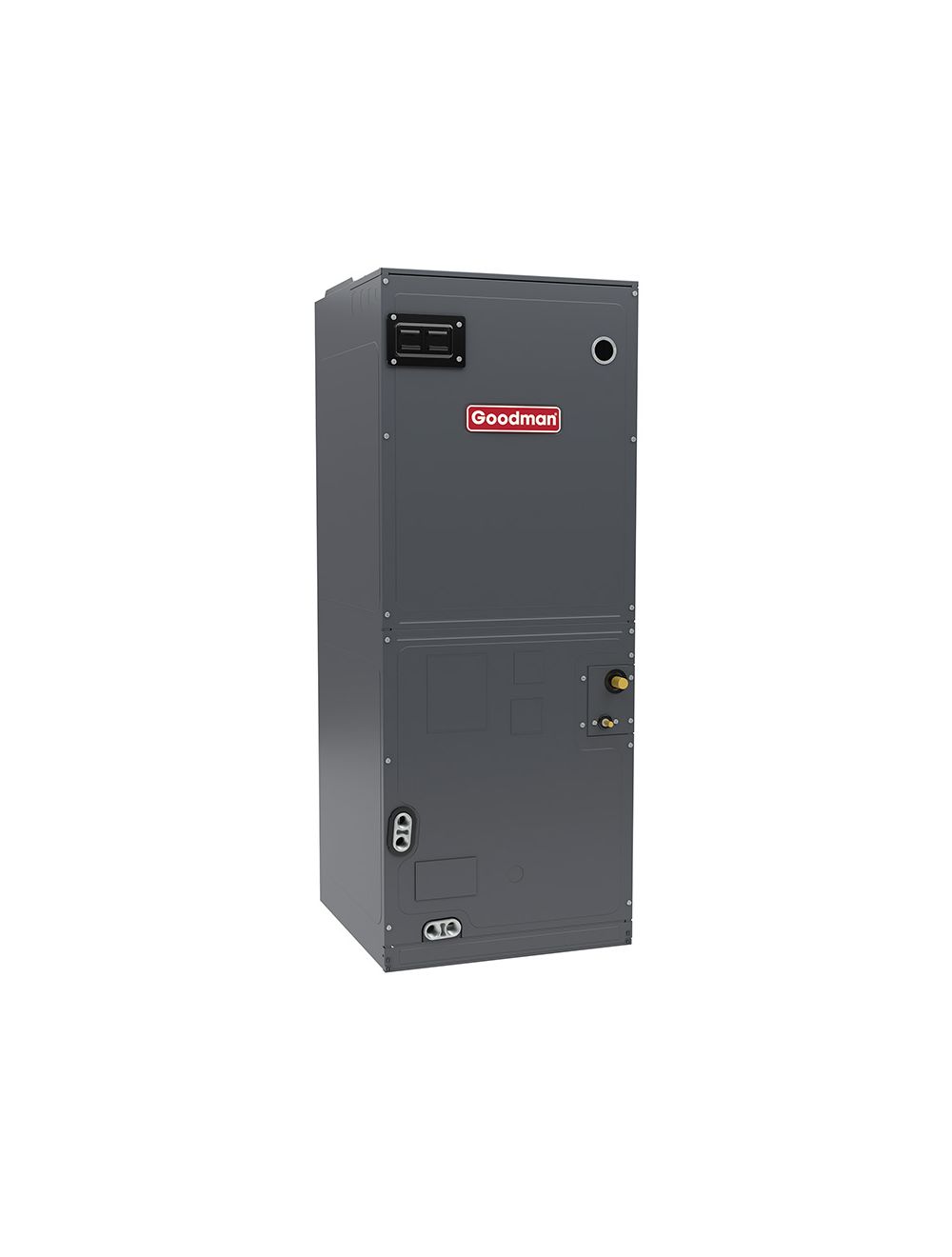

Goodman AHVE24BP0300 2.0 Ton Air Handler

Product Description

The Goodman AHVE24BP0300 air handler ensures efficient air distribution in residential spaces. It features an all-aluminum evaporator coil, a thermoplastic drain pan, and a variable-speed ECM blower motor. The unit supports both horizontal and vertical mounting and is optimized for R-32 refrigerant.

• Internal Electronic Expansion Valve (EEV)
• All-aluminum evaporator coil
• Variable-speed ECM blower motor

Product Highlights

This air handler is built for durability and performance, making it suitable for various indoor environments including homes and small buildings.

Product Information

Standard Information

• Brand: Goodman
• Product Type: Air Handler

Technical Specifications

• MPN: AHVE24BP0300
• Product Line: AHVE
• Capacity: 2.0 Tons
• Cooling BTU: 24000
• Refrigerant Type: R-32
• Blower Motor Type: ECM Variable-Speed
• Configuration: Horizontal
• Installation Location: Indoor
• Electric Heat: Available
• TXV Installed: Yes
• Maximum Air Flow: 800 CFM
• Minimum Air Flow: 610 CFM
• Input Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Minimum Circuit Ampacity: 4.9 Amps
• Recommended Breaker Size: 15 Amps
• Suction Connection Size: 7/8 Inch
• Liquid Connection Size: 3/8 Inch
• Drain Outlet Diameter: 3/4 Inch
• Cabinet Width: 17 1/2 Inches
• Product Height: 45 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 21 Inches
• Product Weight: 100 Pounds
• Certifications: AHRI Certified, ETL Listed, ISO Certified
• Parts Warranty: 10 Limited Years
• Dimensions: 17-1/2 W x 21 D x 45 H
