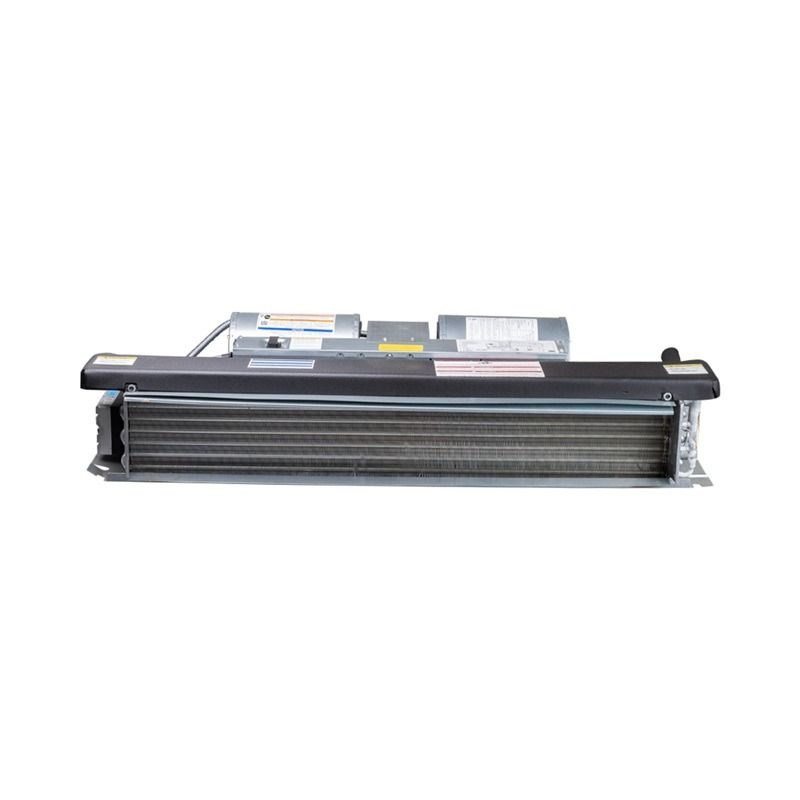

Goodman ACSF24LN1608 Air Handler 2.0 Ton 8 kW

Product Description

The Goodman ACSF24LN1608 air handler is an integral part of a total home environment control system. This ceiling-mount unit reduces indoor humidity for a more comfortable environment. It features an all-aluminum evaporator coil, an internal thermal expansion valve and a multi-speed ECM motor to efficiently move air throughout your home.

• Features galvanized-steel construction for corrosion resistance.
• Equipped with an all-aluminum coil for efficient heat transfer.
• Includes a factory-installed internal thermostatic expansion valve.

Product Highlights

The ACSF series air handlers are easy to install with a 21" depth for attic access. They also feature a high-temperature plastic drain pan with primary and secondary drain connections.

Product Information

Standard Information

• Brand: GOODMAN
• Manufacturer Part Number: ACSF24LN1608
• Country of Origin: UNITED STATES

Technical Specifications

• Capacity: 2.0 Tons
• Phase: 1 Phase
• Electric Heat Capacity (kW): 8.0
• Voltage: 208/230 Volts
• Cooling BTU: 24000
• Product Depth: 11.25 Inches
• Product Width: 49.25 Inches
• Type: Air Handler
• ETL Listed: Yes
• Product Height: 10 Inches
• Frequency: 60 Hz
• ISO Certified: Yes
• Maximum Air Flow: 927 CFM
• Minimum Air Flow: 781 CFM
• AHRI Certified: Yes
• Motor Type: ECM
• Drain Outlet Diameter: 0.75 Inch
• Product Line: ACSF
• Liquid Connection Size: 0.375 Inch
• Configuration: Ceiling Mounted
• Electric Heat: Yes
• Suction Connection Size: 0.75 Inch
• Product Category: Air Handler
• Refrigerant Type: R-410A
• Blower Motor Type: Multi-Speed
• Minimum Circuit Ampacity: 44 Amps
• Recommended Breaker Size: 45 Amps
• Installation Location: Indoor
• Brand: Goodman
• Application: Air Handler
• Tonnage: 2 ton
• Cooling Capacity: 24000 BtuH
• KW: 8kw
• Air Handler Type: Single Piece
• CFM @ 0.5" ESP: 728
• CFM High @ 0.3 ESP: 833
• Suction Fitting: 3/4"
• TXV Included: No
• Max. Fuse Size: 45
• Electrical: 208/230v 1 Phase 60 Hz
• Liquid Line: 3/8"
