GOODMAN
Brand: GOODMAN
SKU: GSZB404810 AMVT48CP1400
Availability: Out Of Stock
Free Shipping
$5,000.00
$5,000.00
Bundle Includes
Goodman GSZB404810 GSZB 4 Ton 14.3 SEER2 Heat Pump 208/230V Single Phase R-410A Quantity: 1
Goodman AMVT48CP1400 AMVT Series 4 Ton Variable Speed Air Handler Quantity: 1
Manuals:

Specification Highlights

Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A

View More

LTL Delivery

This product weighs 461 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Features

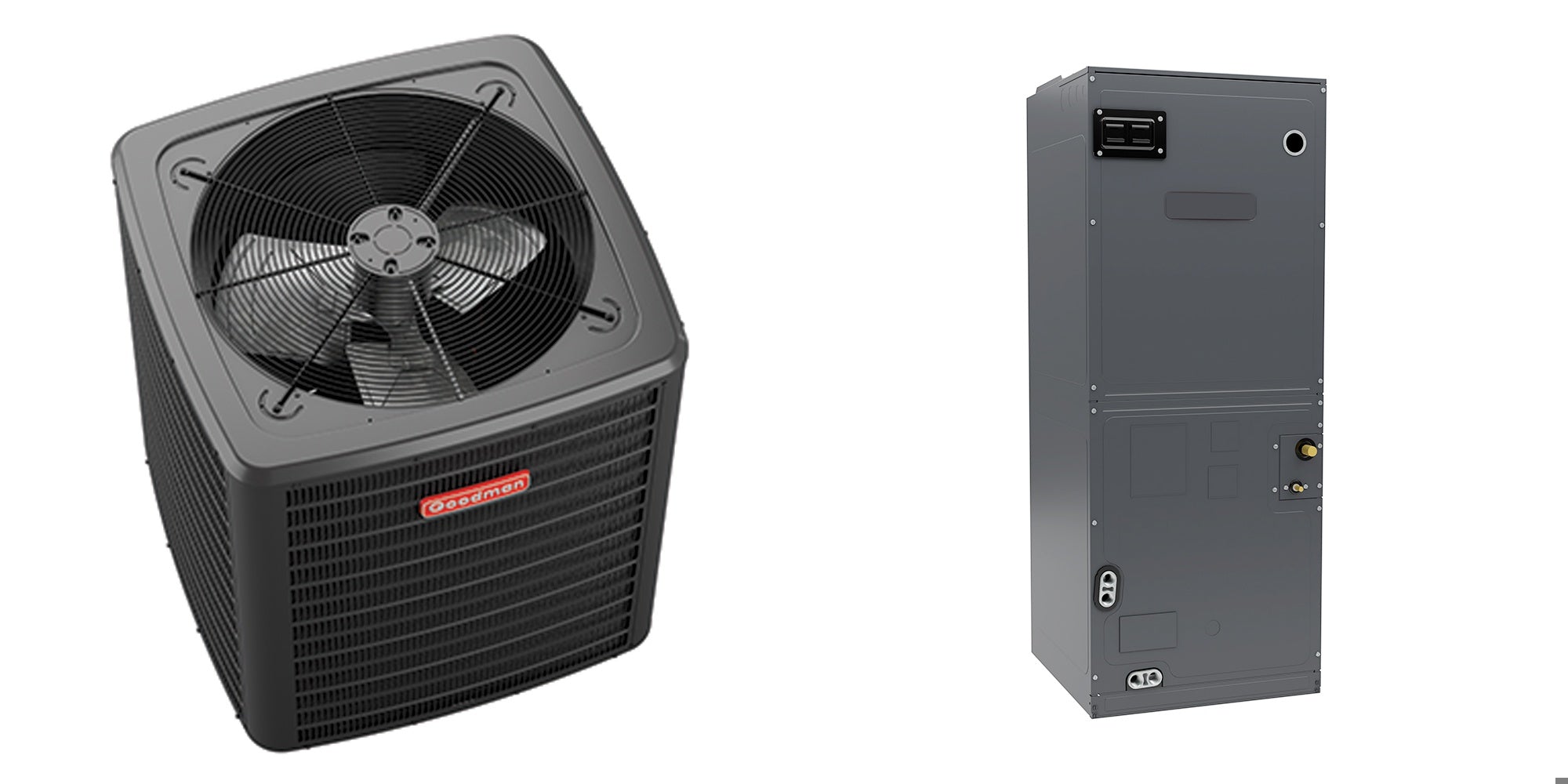

The Goodman GSZB404810 AMVT48CP1400 bundle system is designed for both heating and cooling applications. It features a GSZB404810 heat pump that efficiently manages your homes temperature year-round with an air handling unit AMVT48CP1400. This system delivers an impressive 14.3 SEER2 (Seasonal Energy Efficiency Ratio) and 7.5 HSPF2 (Heating Seasonal Performance Factor).

Goodman GSZB404810 Heat Pump

The Goodman GSZB404810 heat pump offers reliable heating and cooling performance. It includes several built-in features:

  • Energy-Efficient Compressor: Provides efficient refrigerant flow.
  • Smartshift™ Technology: Ensures smooth, time-delay defrost transitions.
  • Factory-Installed Components: Includes key components such as a suction-line accumulator, compressor crankcase heater, and high-capacity muffler for performance and reliability.
  • Sturdy Construction: Heavy-gauge, galvanized steel cabinet with a durable powder-paint finish, compliant with UL 60335-2-40 standards.

Product Highlights

Includes aluminum fin coil, pressure switches, and an all-aluminum evaporator coil for enhanced efficiency.

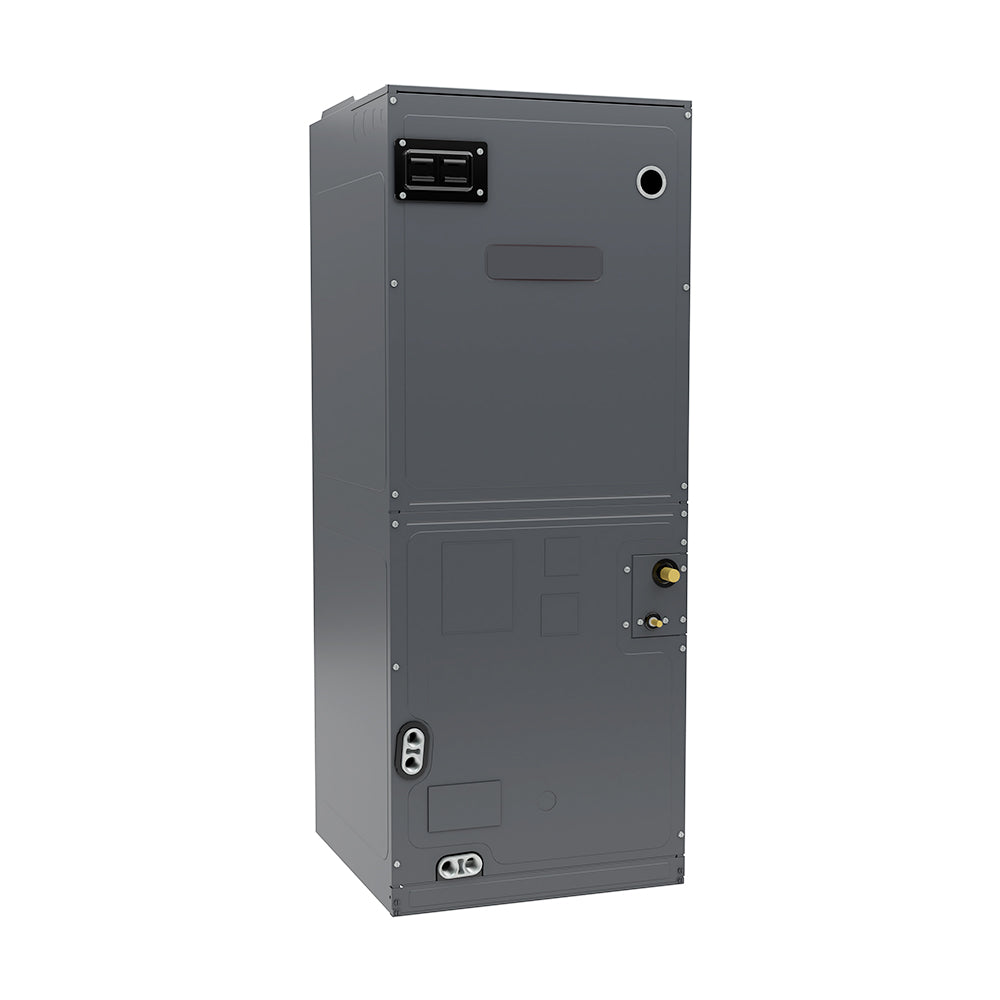

Goodman AMVT48CP1400 Air Handler

The AMVT48CP1400 air handler features:

  • Variable Speed ECM Blower Motor: Allows for multiple air speed settings and customized comfort.
  • Internal Thermostatic Expansion Valve: Facilitates efficient refrigerant flow.
  • ComfortBridge™ Compatible: Enables advanced diagnostics and troubleshooting via ComfortBridge™ controls.
  • SmartFrame™ Technology: Enhances installation and maintenance accessibility.

Product Highlights

Designed for multi-position installation, ensuring flexibility in varying HVAC setups. The units condensate management system includes molded diverters, foil-faced insulation, and a streamlined construction process.

Product Information

Standard Information

  • Heat Pump Capacity: 4.0 Tons
  • Cooling Capacity: 48,000 BTU
  • Heating Capacity: 48,000 BTU
  • SEER2: 14.3
  • HSPF2: 7.5
Specifications
Overview
Product Category
Heat Pump & Air Handler Package
Operating Mode
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
ECM Variable-Speed
Configuration
Multi-Position
Compressor Stages
Single Stage
DOE Regional Compliance
Nationwide
Capacity
4.0 Tons
Cooling Capacity
48,000 BTU
Nominal Cooling Capacity
48,000 BTU
Heating Capacity
48,000 BTU
Maximum Air Flow
1600 CFM
SEER2
14.3
EER2
12.0
HSPF2
7.5
Cabinet Width
21 Inches
Product Weight
430 Pounds
Shipping Weight
450 Pounds
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
211121065
Heat Pump Condenser Width
35 1/2 Inches
Heat Pump Condenser Height
36 7/16 Inches
Heat Pump Condenser Depth
35 1/2 Inches
Heat Pump Condenser Weight
272 Pounds
Single Stage
Single Stage
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.2 Amps
Recommended Breaker Size
45 Amps
High & Low Pressure Switches
Included
Factory Installed Components
Accumulator, Crankcase Heater, Muffler
Secure Cabinet
Galvanized Steel with Powder Paint
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
ISO Certified
Yes
Energy Star Listed
No
Parts Warranty
5 Years
Compressor Warranty
Limited* 10 Years
AHRI Certified
Yes
Air Handler Type
Air Handler
Air Handler Product Line
AMVT
Air Handler Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Variable-Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
TXV Installed
Yes
Performance Capacity
4.0 Tons
Cooling BTU
48,000 BTU
Maximum Air Flow
1600 CFM
Minimum Air Flow
938 CFM
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15/15 Amps
Cabinet Width
21 Inches
Product Height
58 Inches
Product Width
21 1/8 Inches
Product Depth
21 Inches
Drain Outlet Diameter
3/4 Inch
Shipping Weight
158 Pounds
ETL Listed
Yes
ISO Certified
Yes
Warranty
10 Years
Parts Warranty
10 Limited Years
