Goodman 10123536sp Manual Reset Limit Switch

Product Description

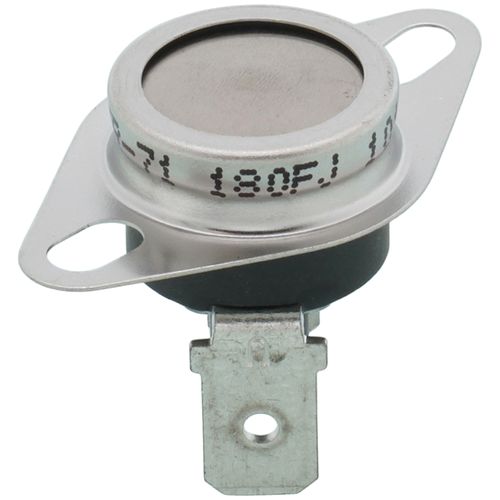

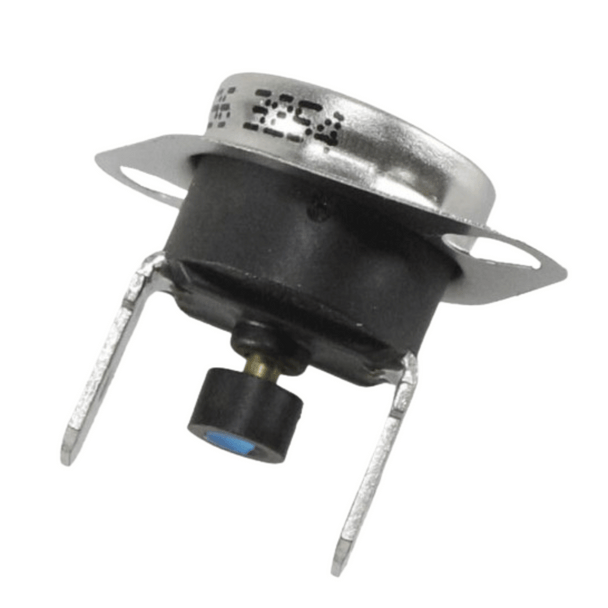

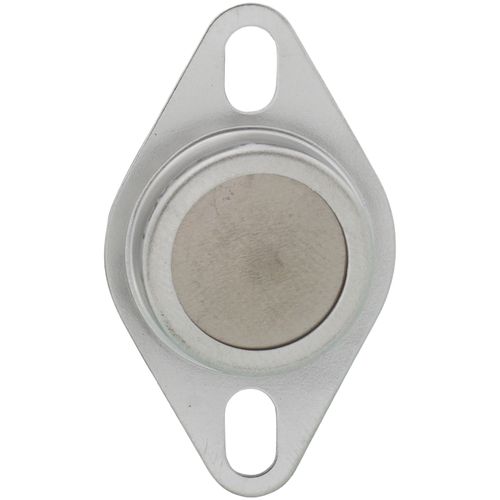

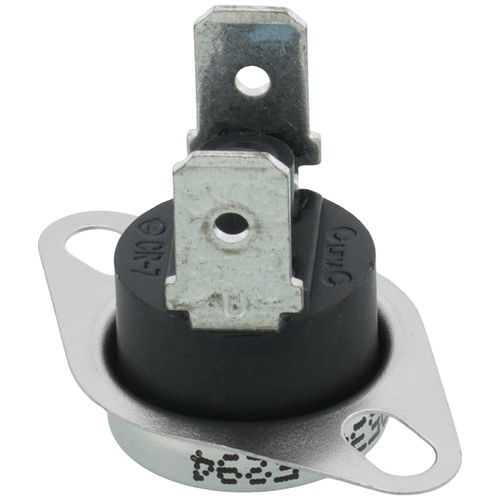

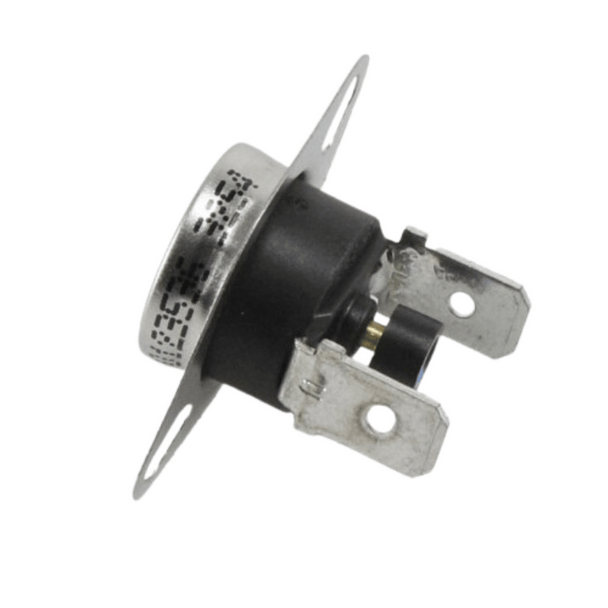

The Goodman 10123536sp is a manual reset limit switch, identified by its light blue color coding, used as a safety accessory in residential and commercial HVAC systems. Limit switches protect heating equipment by interrupting the circuit when a temperature threshold is exceeded. This switch requires manual reset after a fault condition, meaning the technician must physically reset it before the system can resume operation. It is installed by licensed HVAC technicians during routine service, troubleshooting, or component replacement on gas furnaces and air handlers.

This switch functions as a replacement accessory component suited for HVAC heating systems where manual reset limit protection is required. The light blue color designation aids in identification during installation and service. It is typically found in residential gas furnace applications where automatic reset is not desired, ensuring the system does not restart without a technician confirming the fault condition has been resolved.

Key Features

• Manual reset operation requires technician intervention after a fault, preventing automatic restart
• Light blue color coding for quick field identification
• OEM accessory sourced directly from Goodman Manufacturing
• Packaged in multiples of 5, suitable for stocking in service vehicles or supply rooms
• Manufactured in Mexico to Goodman specifications

Compatibility

Designed as an OEM-style replacement limit switch accessory for Goodman HVAC heating systems requiring a manual reset limit control.

Installation Notes

Manual reset limit switches are installed by licensed HVAC technicians. Always disconnect power to the unit at the breaker and confirm the system is de-energized before replacing any limit switch. Inspect the surrounding area for conditions that may have caused the original limit to trip, such as restricted airflow or a dirty filter, before resetting the replacement switch. Follow applicable local codes and manufacturer wiring diagrams during installation.

Technical Specifications

• Reset Type: Manual
• Color Code: Light Blue
• Unit Type: Accessory
• Product Class: Switches
• Pack Multiple Quantity: 5
• Country of Origin: Mexico

Standard Information

• Brand: Goodman
• Manufacturer Part Number: 10123536sp
