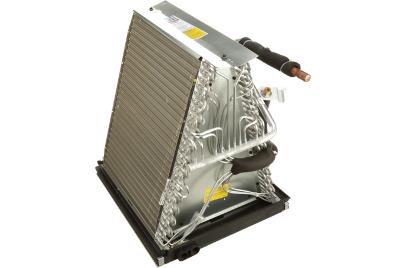

Goodman 0270D01820S CAPFA3626C6 3 Ton

Product Description

The Goodman 0270D01820S is designed for split system air conditioners and heat pumps, featuring a multi-louvered fin design for efficient condensate drainage. This evaporator coil is optimized for R-410A refrigerant and has a corrosion-resistant thermoplastic drain pan. The coil measures twenty-one inches wide, twenty-one inches deep, and twenty-six inches high, making it a suitable choice for various installations.

• Compact all-aluminum design with AlumaFin7 technology
• Corrosion-resistant drain pan with no water-retention
• Single piece access panel ensures minimal air loss

Product Highlights

The Goodman CAPFA coil combines durability with effective performance for cooling needs.

Product Information

Standard Information

• Configuration: Downflow / Upflow
• Product Type: Evaporator Coil

Technical Specifications

• Primary Refrigerant: R-410A
• Tonnage: 3 Ton(s)
• High Output Cool: 36000 BTU
• Liquid Line Size: 3/8 inches
• Suction Line Size: 7/8 inches
• Weight: 49 lbs
• Width: 21 inches
• Depth: 21 inches
• Height: 26 inches
