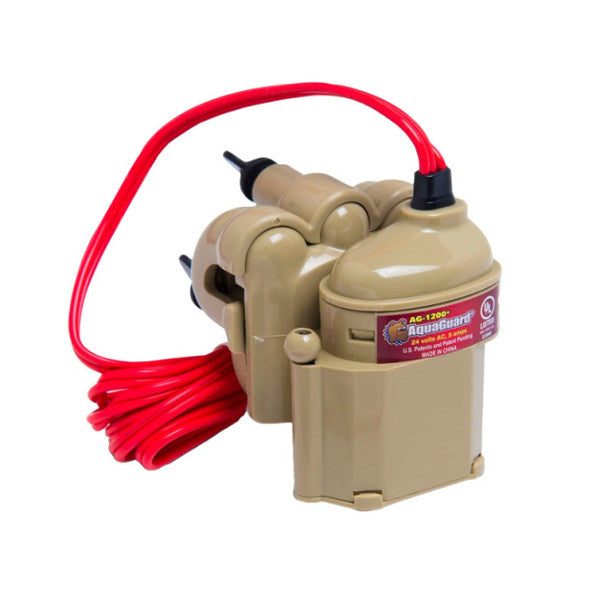

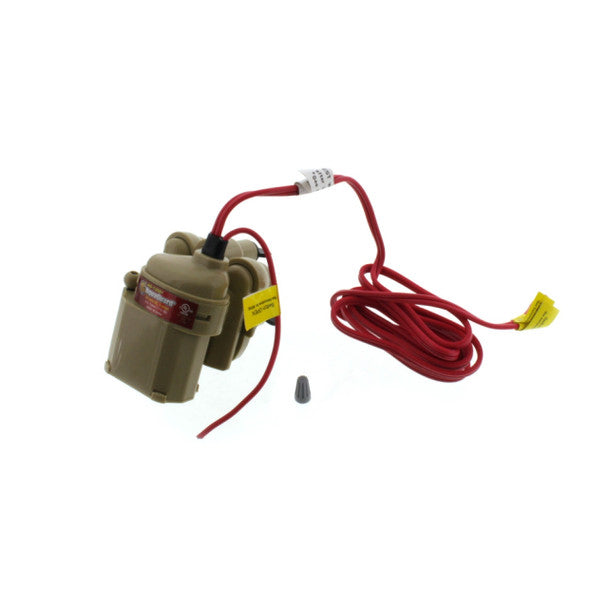

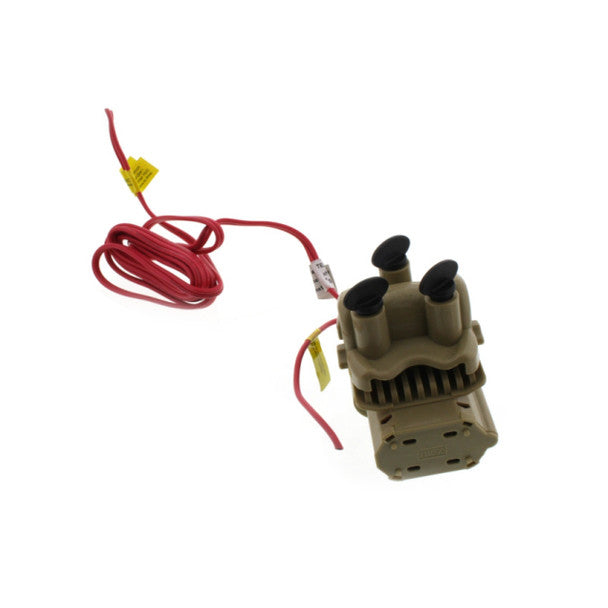

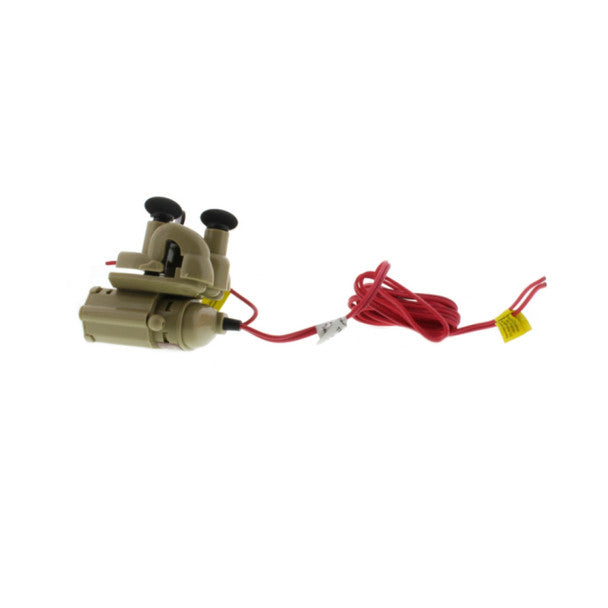

GOLIATH 96106 AG-1200+ AquaGuard Condensate Pan Magnetic Float Switch

Product Description

The GOLIATH 96106 AG-1200+ AquaGuard is a reliable magnetic float switch suitable for both metal and plastic secondary drain pans. It includes a two-piece clamp for secure installation to different types of pans. This switch activates when condensate overflow occurs, turning off the HVAC/R system and alerting users through a connected alarm. A test knob is integrated for function verification.

• Compatible with metal and plastic pans
• Magnetic triggering mechanism
• Includes protective cover

Product Highlights

The GOLIATH AG-1200+ AquaGuard provides peace of mind by preventing overflow issues in HVAC/R systems.

Product Information

Standard Information

• Voltage: 24 Volt AC
• Current: 5 Amp

Technical Specifications

• Installation: Easy, drill-free installation
• Application: Suitable for residential and commercial use
• Test Knob: Lift float pin test knob
• Housing: Protective housing against insulation and debris
• Wiring: Normally open third wire for optional alarm
• Approvals: UL 508 approved
• Weight: 0.46 pounds
• Dimensions: 3.50 inches (L) x 2.70 inches (W) x 3.40 inches (H)
