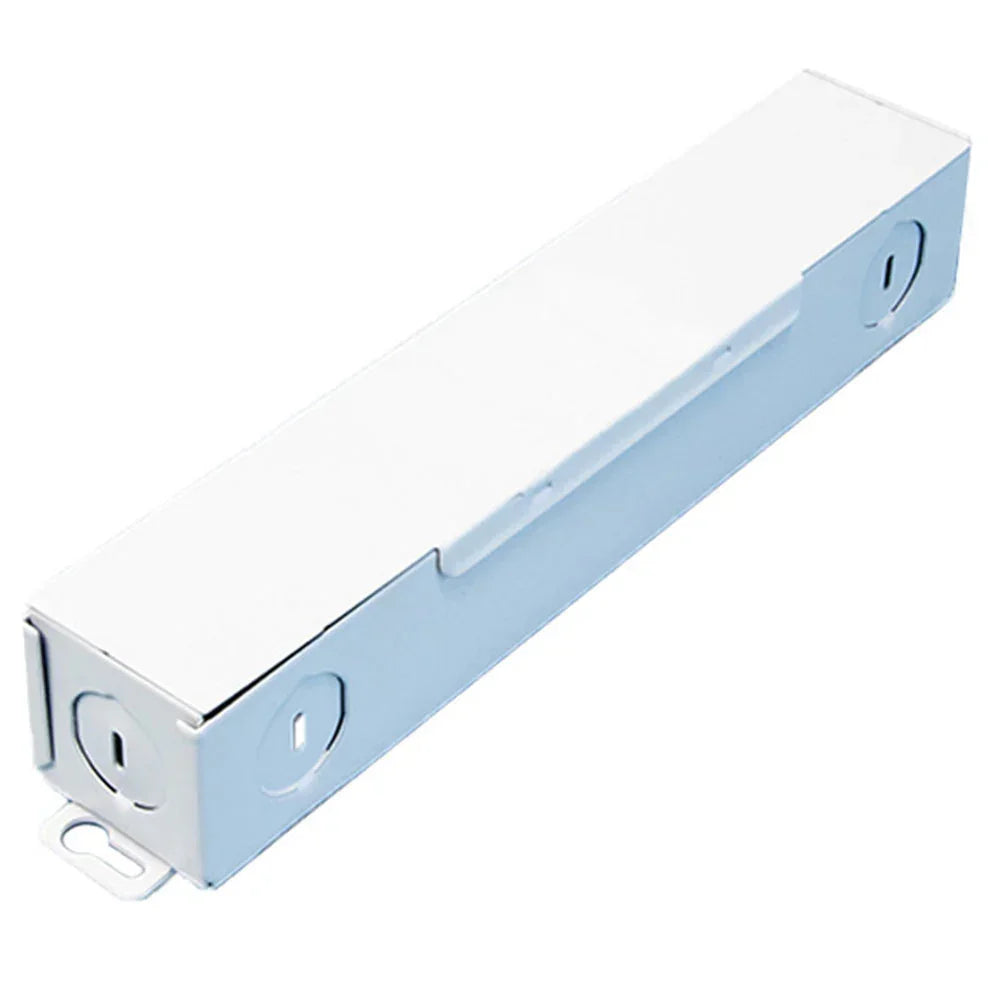

Gm Lighting PSD1512 Electronic LED Driver 15W 12VDC Output 120VAC Input

Product Description

The GM Lighting PSD1512 is a 12VDC constant voltage, phase/TRIAC dimmable LED power supply. This 15W driver, with an input voltage of 120V, is suitable for GM Lighting LED Slim Pucks, LED Slim Puck Mini, tape lights, and lightbars. It features an integrated junction box for hard wire installation, high efficiency up to 80%, and flicker-free 20%-100% dimming. This Class 2 rated driver provides reliable performance for residential and commercial applications.

• 12VDC constant voltage output for consistent LED performance
• Flicker-free dimming from 20% to 100% with compatible phase-cut dimmers
• Built-in junction box for hard wire installation with easy access

Product Highlights

Professional-grade 15W 12VDC constant voltage LED driver with phase/TRIAC dimming and integrated junction box.

Product Information

Standard Information

• Brand: GM LIGHTING
• Manufacturer Part Number: PSD1512
• Country of Origin: Canada

Technical Specifications

• Dimmable: Yes
• Input Voltage: 120V
• Output Voltage: 12V DC
• Output Power: 15.0W
• UPC: 849951011204
• Location Rating: Dry Rated
• Type: Dimmable, Electronic, Constant Voltage, Class 2
• Material: Metal
• Efficiency: 80%
• IP Rating: IP20
• Certifications: cETLus Listed
