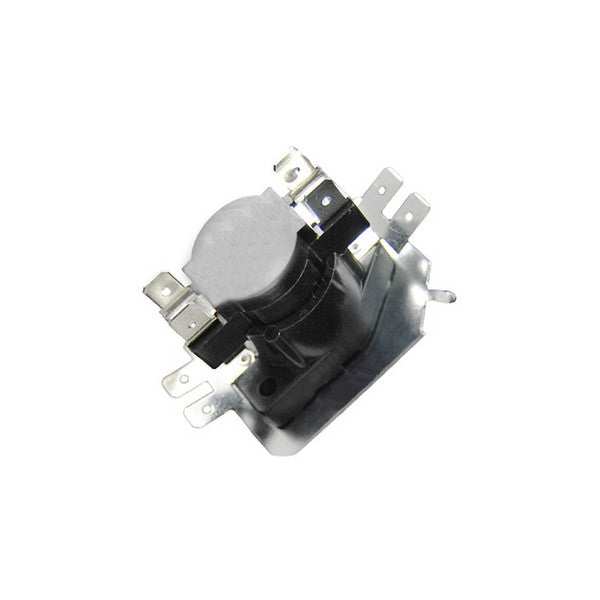

Global The Source 24ZC1 SPST Heat Sequencer 1 Timing, 1 Switches Replacement 611-241

Product Description

The GLOBAL THE SOURCE 24ZC1 SPST Heat Sequencer replaces Robertshaw 611-241. It features contact ratings up to 25 Amps at 120 or 240 Volts and 12.5 Amps at 480 Volts. Designed with full-load rated auxiliary contacts and quick-connect terminals, this solid-state sequencer is shock and vibration resistant.

• Contact ratings: up to 25 Amps at 120 or 240 Volts and 12.5 Amps at 480 Volts
• Full-load rated auxiliary contacts
• Standard operating ambient between -50°F (-45.5°C) and 165°F (73.8°C)

Product Highlights

This SPST heat sequencer offers reliable performance in various mounting positions and is suitable for a range of applications.

Product Information

Standard Information

• Brand: GLOBAL THE SOURCE
• Manufacturer Part Number: 24ZC1
• Country of Origin: CHINA

Technical Specifications

• Switches: 1
• Timings: 1
• Timings-Off: (M1-M2) 40-110
• Timings-On: (M1-M2) 1-20
• Direct replacement for: Diversitech DGS101
• Gemline: GS101
• Goodman: B1290906
• Industry No.: 60000A0M
• Klixon: 60000AOMA012
• Lennox: 58C9701
• Mars: 33841
• Robertshaw: 611-241
• Supco: Q101
• White-Rodgers: 24A34-1
• York: 525-37322-000
• Napco: NS101
• Watsco: TDR10
• Global: 24ZC1
• Zettler: ZC24A341-1
• Interstate Electric: IES24A34-1
• A1 Components: TDR10
• Therm-O-Disc: 12S20
