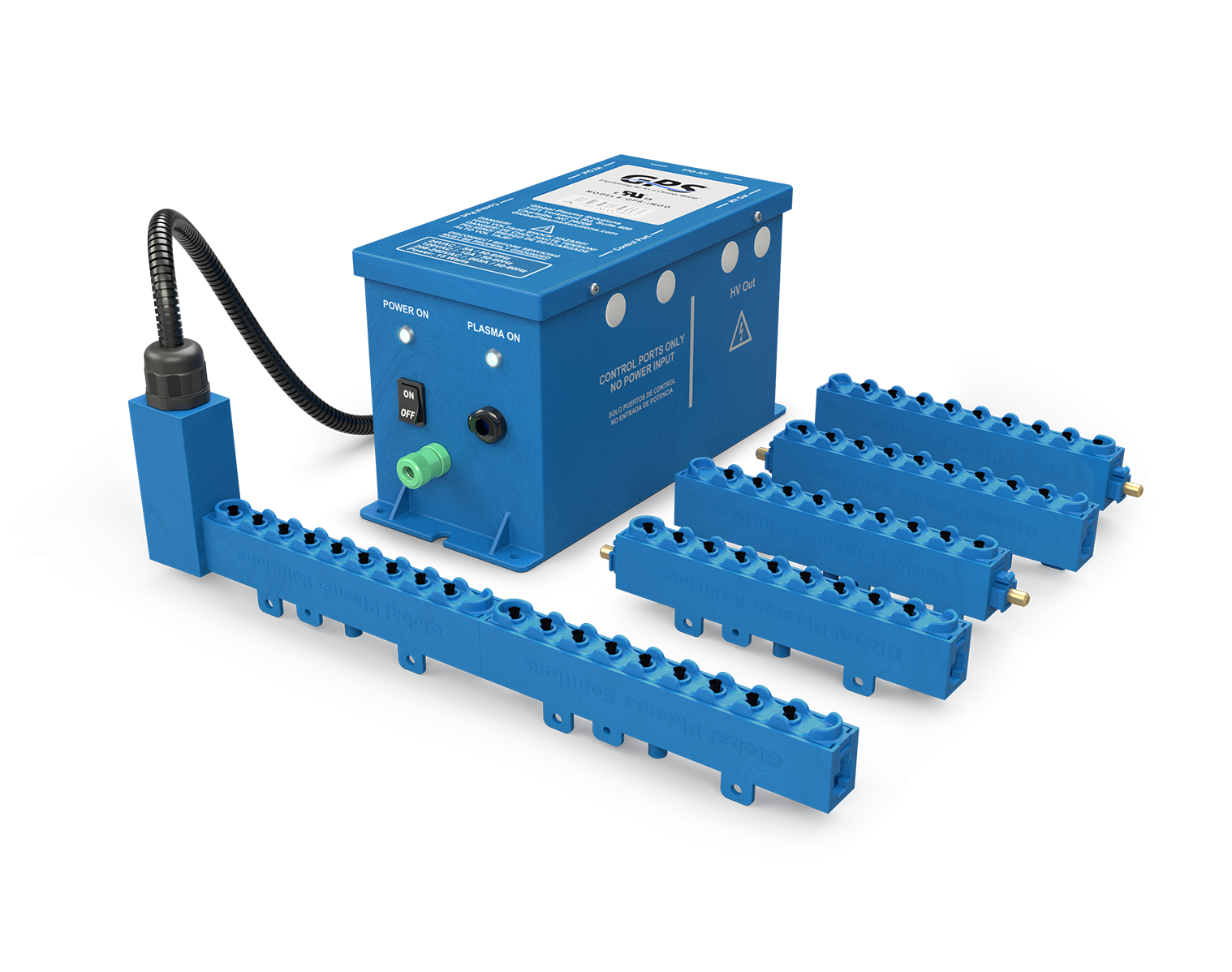

Global Plasma Solutions GPS-IMOD-120-SNAP Modular Ionization System

Product Description

The Global Plasma Solutions GPS-IMOD-120-SNAP is a modular ionization system intended for coil cleaning in HVAC systems. It uses NPBI technology to create ions, which helps improve air quality. This system needs field assembly and provides adjustable coverage, which can be set in increments. The system is ideal for various air purification applications.

• Modular coil cleaning system for HVAC.
• Total Ion Output: over 140 million ions per cubic centimeter per inch of bar.
• Adjustable assembly for customized configurations.

Product Highlights

This system enhances air quality and is designed for easy assembly and adjustment.

Product Information

Standard Information

• Brand: Global Plasma Solutions
• MPN: GPS-IMOD-120-SNAP

Technical Specifications

• Total Ion Output: >140 million ions per cc per inch of bar
• Power Unit Dimensions: 9 inches long × 3.25 inches wide × 4.75 inches high
• Power Unit Weight: 4.63 lbs
• Ionizer Bar Dimensions: 1.6 inches high × 0.75 inches wide, Length = 6.0 inches per section + 1.2 inches (144 Max)
• Ionizer Bar Weight: 0.24 lbs per section
• Input Voltage: 24/120/208-240 VAC
• Output Voltage: 5 kV RMS
• Output Current: 0.500A/0.120A/0.065A
• Power Consumption: 12W (standard), 15W (cleaning cycle)
• Frequency: 50/60Hz
• Electric Approvals: UL, cUL
• Power Entry: UL Listed, Line Cord with 3-Prong Plug
• Compliance & Certifications: UL 2998, UL 867, IAQP, OSHPD Seismic (OSP), CE, CARB
• Operating Temperature: -20°F to 140°F
• Humidity Range: 0-100% RH
