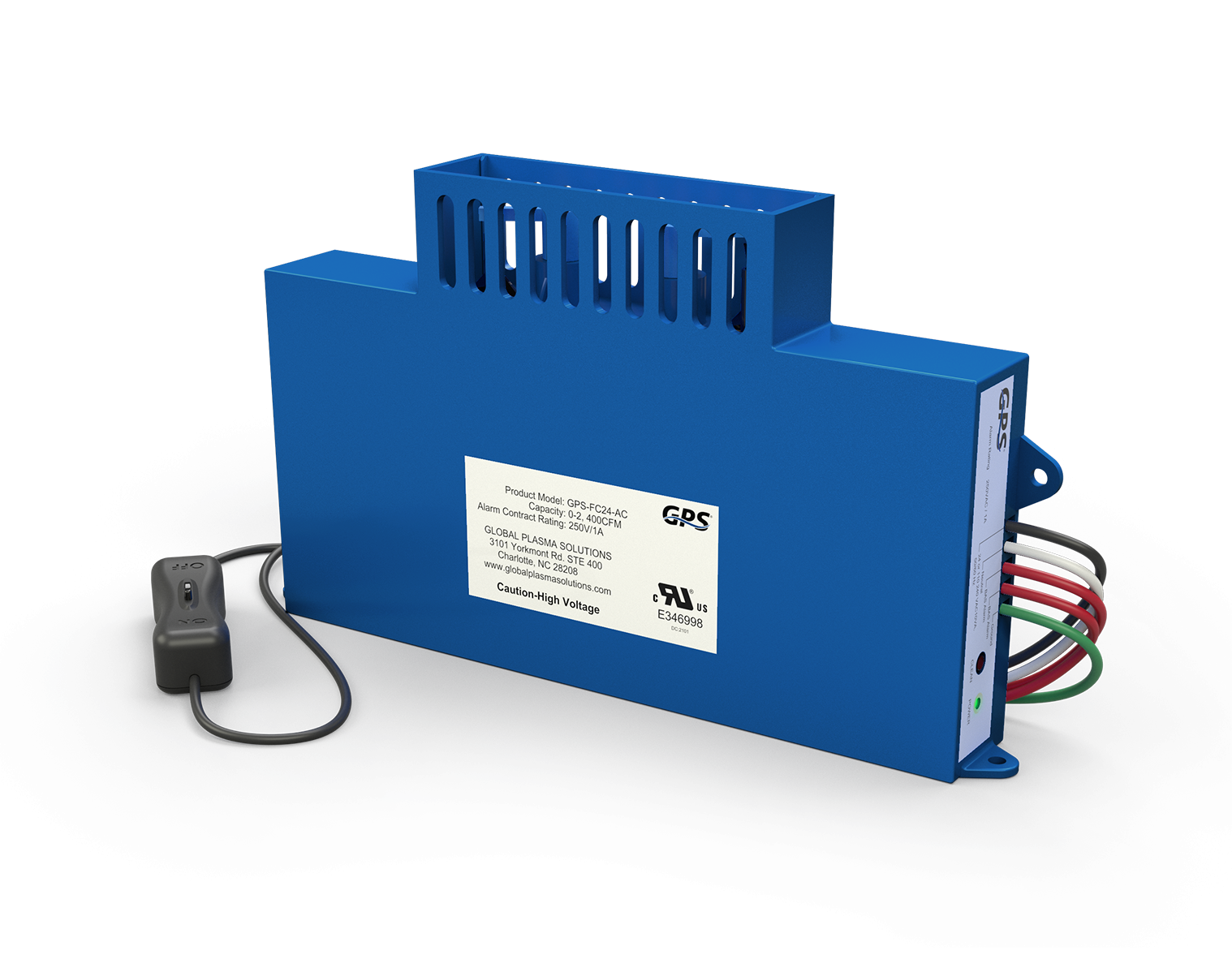

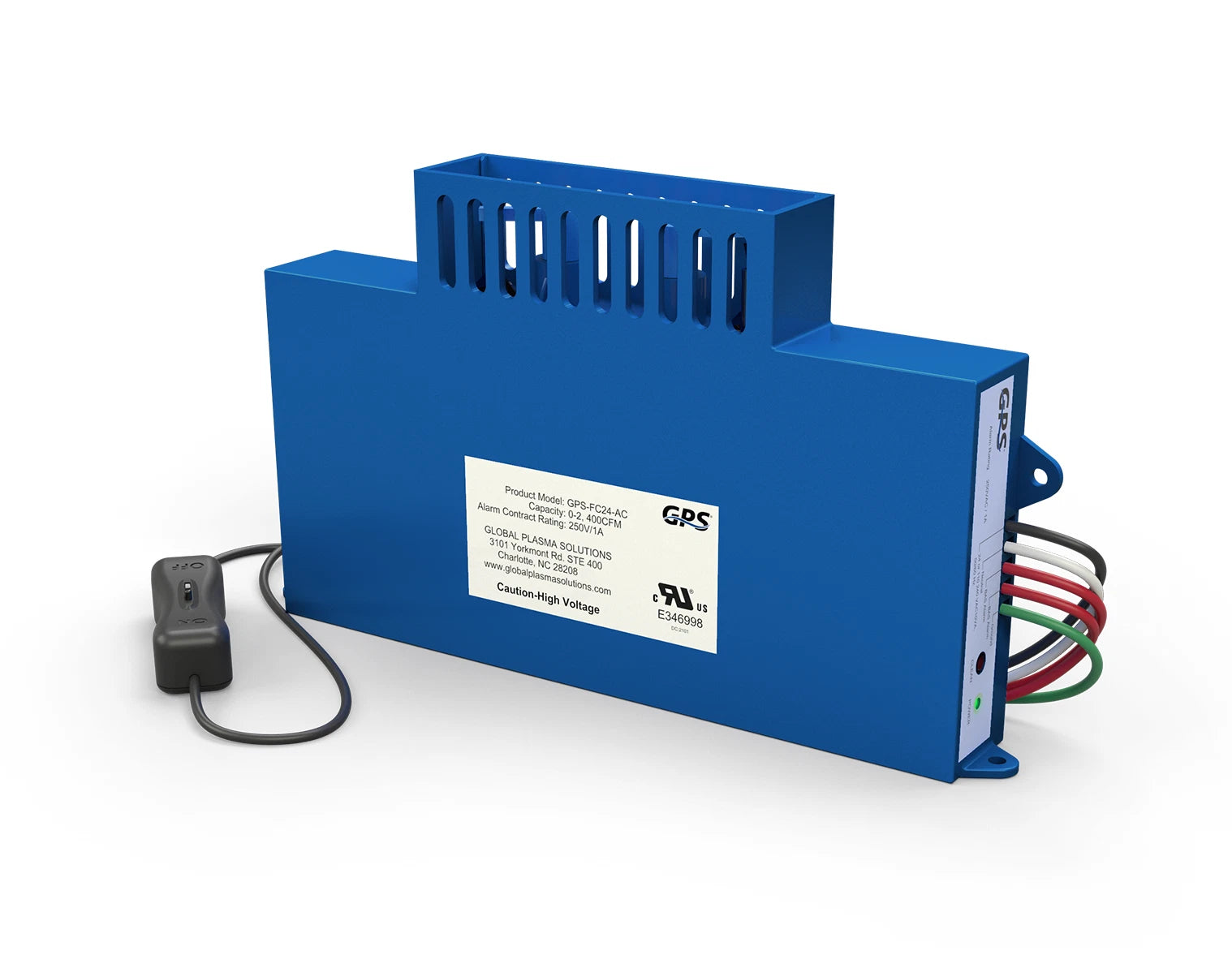

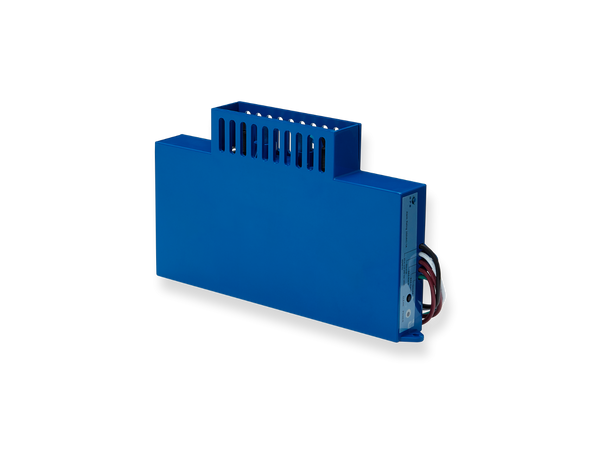

GLOBAL PLASMA SOLUTIONS GPS-FC24-AC Auto-Cleaning Ionization System

Product Description

The GLOBAL PLASMA SOLUTIONS GPS-FC24-AC is an auto-cleaning needlepoint bipolar ionization system. It is designed for airflow capacities up to two thousand four hundred cubic feet per minute or six tons. This system offers various mounting options, including fan inlet and duct walls, allowing for flexible installation. Key features include an in-line on/off switch, operational status LED, and integral alarm contacts for building automation systems.

• Self-cleaning design requires no maintenance.
• Features programmable self-cleaning cycles.
• Multiple mounting options for easy installation.

Product Highlights

This system is built to maintain quality air through ionization, supporting air purification in various environments.

Product Information

Standard Information

• Brand: GLOBAL PLASMA SOLUTIONS
• Model: GPS-FC24-AC

Technical Specifications

• Airflow Capacity: 0-2400 CFM or up to 6 tons
• Mounting Type: Interior duct wall
• Input Voltage: 24-240 VAC/DC
• Operating Current: 0.170-0.017A (operating), 0.33-0.03A (cleaning cycle)
• Power Consumption: 4 watts (operating), 8 watts (cleaning cycle)
• Temperature Range: -20°F to 140°F
• Humidity Range: 0-100% RH
• Dimensions: 7.9 inches L x 1.1 inches W x 5.0 inches H
• Unit Weight: 1.25 lbs
• Alarm Contact Rating: 125 VAC / 300mA, N.O. dry contact
• Frequency: 50/60HZ
• Ionizer Total Ion Output: >300M ions/cc
• Certifications: UL, cUL, UL 2998, UL 867, IAQP, CE, CARB
