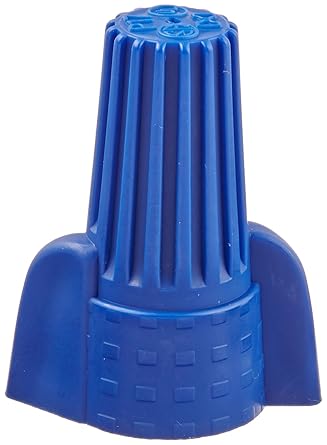

GLOBAL NSI-WWC-B-C Easy-Twist Winged Wire Connector

Product Description

The GLOBAL NSI-WWC-B-C Easy-Twist Winged Wire Connector allows for the connection of copper conductors from #14 to #6 AWG. Its design includes a flame-resistant thermoplastic shell which ensures electrical insulation. A fixed square wire spring grips the conductors securely, providing reliable connections. This connector has a voltage rating of six hundred volts and can operate in temperatures up to two hundred twenty-one degrees Fahrenheit. It is compliant with UL 94 V-2 for flame resistance and is CSA certified.

• Joins copper conductors from #14 to #6 AWG.
• Features a flame-resistant thermoplastic shell for electrical insulation.
• Certified to UL 94 V-2 and CSA standards.

Product Highlights

This connector is ideal for residential and commercial electrical applications where reliable and safe wire connections are necessary.

Product Information

Standard Information

• Brand: GLOBAL
• MPN: NSI-WWC-B-C

Technical Specifications

• Connector Color: Blue
• Wire Size Range: #14 to #6 AWG
• Minimum Wire Combination: Two #10 with one #12 AWG
• Maximum Wire Combination: One #8 with three #10 AWG
• Voltage Rating: 600V
• Standards Met: UL standard 94 V-2, CSA certified
• Temperature Rating: 221 degrees Fahrenheit
