Global Cnc Industries 8615C .750 Tool Holder Bushing Type C

Product Description

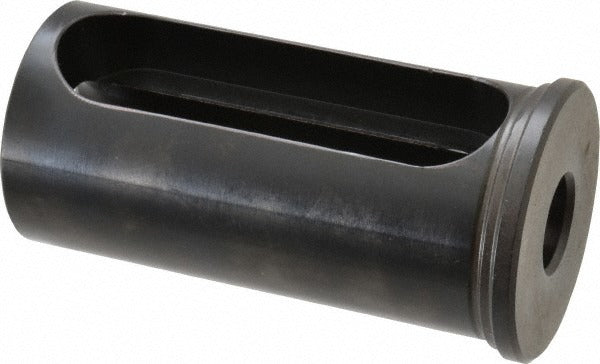

The GLOBAL CNC INDUSTRIES 8615C .750 is a Type C rotary tool holder bushing designed for use in CNC machining centers, turret lathes, and rotary tool holding systems. It features a 0.750 inch inside diameter and a 2 inch outside diameter, with a 4 inch length under the head. The 3.625 inch slot length accommodates secure tool registration and positioning. At 2.67 pounds, this is a solid, precision-machined bushing built for demanding production environments. Installation is typically performed by a machinist or CNC setup technician as part of tooling changeouts or new fixture builds.

This bushing is suited for rotary tool holder applications in production machining environments where consistent tool positioning and repeatable setup are required. The Type C designation identifies the bushing configuration, which determines head geometry and slot arrangement. It is applicable in both job shop and high-volume manufacturing settings where tool holder bushings of this bore and shank size are specified.

Key Features

• Type C bushing configuration for compatibility with corresponding tool holder systems
• 0.750 inch (0.7500 inch decimal) inside diameter for precise tool shank fit
• 2 inch outside diameter for secure seating in the holder bore
• 4 inch length under head provides extended tool support and rigidity
• 3.625 inch slot length for proper engagement and anti-rotation
• 0.303 inch head thickness for positive axial stop

Compatibility

Designed as an OEM-style replacement or direct-fit bushing for rotary tool holder systems specifying a Type C bushing with a 0.750 inch inside diameter and 2 inch outside diameter.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before removing or installing any tooling components. Verify that the bore in the tool holder is clean and free of chips or burrs before seating the bushing. Do not force the bushing into the holder; a proper press or arbor press fit should be used if an interference fit is required.
