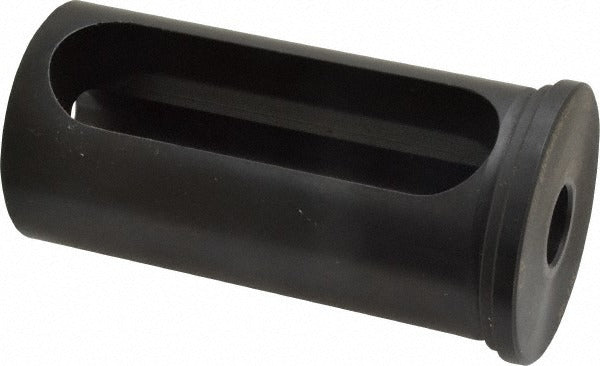

Global Cnc Industries 8615C .625 Tool Holder Bushing Type C

Product Description

The GLOBAL CNC INDUSTRIES 8615C .625 is a Type C rotary tool holder bushing designed for use in CNC machining centers, turret lathes, and rotary tool holder systems. It features a 0.625 inch inside diameter and a 2 inch outside diameter, providing a precise, secure interface between the tool holder and the machine spindle or turret. The 4 inch length under head and 3.625 inch slot length accommodate a range of tooling setups where consistent radial and axial positioning is critical. Machining professionals and toolroom technicians rely on this style of bushing to maintain alignment and reduce runout in production environments.

This bushing is suited for production machining applications in both job shop and high-volume manufacturing settings. Type C bushings of this dimensional class are commonly installed in gang tool setups, turret tooling blocks, and rotary tool holder bodies on CNC lathes and machining centers. The 0.625 inch ID is sized for standard tool shanks in that bore class, making this a practical replacement or spare for existing tooling setups. Installation is handled by machinists or toolroom personnel during setup or scheduled tooling changes.

Key Features

• Type C bushing geometry for rotary tool holder applications
• 0.625 inch (0.6250 inch decimal) inside diameter for precise shank fit
• 2 inch outside diameter with 0.3030 inch head thickness for stable seating
• 4 inch length under head accommodates deep tool holder bodies
• 3.625 inch slot length provides clearance and positive drive engagement

Compatibility

Designed as an OEM-style replacement bushing for rotary tool holder systems requiring a Type C bushing with a 0.625 inch inside diameter and 2 inch outside diameter.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Disengage and lock out all machine power before removing or installing tooling components. Inspect the bore and mating surfaces for burrs or debris before pressing or sliding the bushing into the holder. Do not force the bushing into an undersized bore; verify dimensional compatibility with the tool holder specification before installation.
