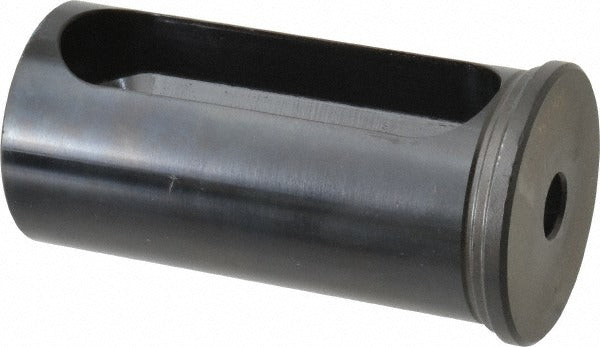

Global Cnc Industries 8615C .500 Tool Holder Bushing Type C

Product Description

The GLOBAL CNC INDUSTRIES 8615C .500 is a Type C rotary tool holder bushing designed for use in machining and toolholding applications. It features a 0.500-inch inside diameter and a 2.000-inch outside diameter, with a length under head of 4.000 inches and a slot length of 3.625 inches. The head thickness measures 0.303 inches. This bushing is used to secure and locate rotating cutting tools in tool holders, turrets, or machine spindles. Installation is typically performed by qualified machinists or tool-room technicians during setup or maintenance operations.

This Type C bushing is suited for CNC lathe turrets, machining centers, and rotary toolholding systems that require a standard bushing configuration. It is applicable in production machine shops, job shops, and tool rooms where precise tool location and secure retention are essential. The 3.625-inch slot length accommodates standard clamping configurations in compatible toolholding setups.

Key Features

• Type C bushing configuration for standard rotary toolholding applications
• 0.500-inch inside diameter for precise tool shank fitment
• 2.000-inch outside diameter for secure seating in compatible holders
• 4.000-inch length under head provides adequate tool support and engagement depth
• 3.625-inch slot length accommodates standard clamping or drive arrangements
• 0.303-inch head thickness for positive axial location

Compatibility

Designed as a standard Type C rotary tool holder bushing for use in CNC lathes, turrets, and machining center toolholding systems that accept Type C bushing configurations with a 2.000-inch outside diameter.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine before inserting or removing any toolholding components. Ensure the bushing bore and holder seat are clean and free of chips or burrs before installation. Follow machine manufacturer guidelines and applicable shop safety procedures during tool setup.
