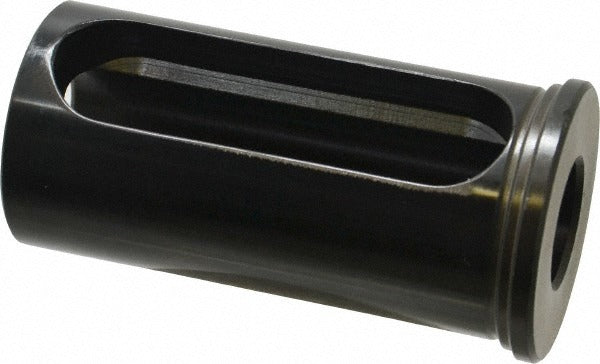

Global Cnc Industries 8615C 1.000 Tool Holder Bushing Type C

Product Description

The GLOBAL CNC INDUSTRIES 8615C 1.000 is a Type C rotary tool holder bushing designed for use in machining and tooling setups where precise bore alignment and secure tool retention are required. With a 1 inch inside diameter, 2 inch outside diameter, and a length under head of 4 inches, this bushing provides stable support for rotating tooling in drill press, milling, and lathe applications. The head thickness measures 0.303 inches, contributing to a low-profile seating surface. Machinists and CNC operators install this component to reduce tool runout and maintain accurate positioning during high-cycle production work.

This bushing is suited for industrial machining environments, including job shops and production facilities running CNC or manual equipment. It fits into tool holder assemblies and fixture plates that accept Type C bushing geometry. The 3.625 inch slot length accommodates standard locking configurations used in common tooling setups. This part is typically installed by machinists or tool-and-die professionals during tooling setup or fixture maintenance.

Key Features

• Type C bushing geometry for compatibility with standard rotary tool holder systems
• 1 inch inside diameter and 2 inch outside diameter for consistent bore-to-OD concentricity
• 4 inch length under head provides extended support depth in thick fixture plates
• 3.625 inch slot length suits standard locking mechanisms
• Head thickness of 0.303 inches for a controlled seating surface
• Weighs 2.38 pounds, indicating solid, heavy-duty construction

Compatibility

Designed as an OEM-style replacement or direct-fit component for rotary tool holder assemblies accepting Type C bushings with a 1 inch bore and 2 inch outside diameter.

Installation Notes

Installation is typically performed by a machinist or tooling technician during fixture assembly or scheduled tool holder maintenance. Power down and lock out all machine drives before removing or inserting any tooling bushing. Ensure the bore and mating surfaces are clean and free of chips or burrs before seating the bushing. Follow your facility's tooling and fixturing procedures and applicable OSHA machine guarding requirements during service.
