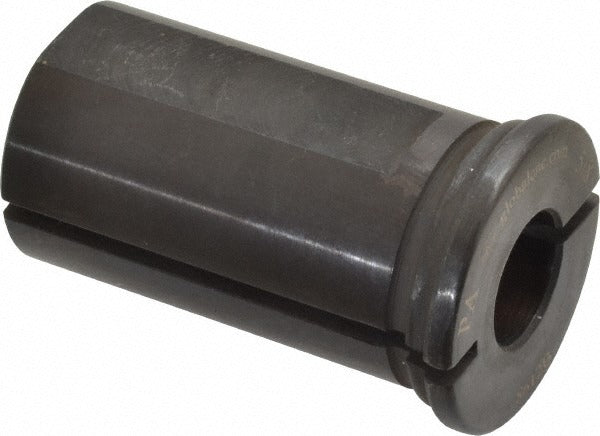

Global Cnc Industries 8612B .625 Type B Tool Holder Bushing

Product Description

The GLOBAL CNC INDUSTRIES 8612B .625 is a Type B rotary tool holder bushing designed for use in drill presses, milling machines, and CNC tooling setups. It provides a precision bore for locating and supporting rotating tools or workholding components within a tool holder assembly. With an inside diameter of 0.625 inches and an outside diameter of 1.25 inches, this bushing delivers accurate tool alignment in demanding machine shop environments. The 0.265-inch head thickness and 2.125-inch length under head make it suitable for standard Type B bushing pocket applications. Machinists and CNC operators are the primary installers of this component.

This Type B bushing is intended for use in jig and fixture tooling applications found in production machining, job shops, and maintenance operations. It fits standard Type B tool holder bushing seats. The 0.625-inch bore accommodates tooling shanks of that diameter, and the 2.125-inch length under head suits moderate-depth applications. No specific machine model compatibility is stated by the manufacturer for this part.

Key Features

• Type B bushing configuration fits standard Type B tool holder pockets
• Inside diameter of 0.625 inches for precise tool shank fit
• Outside diameter of 1.25 inches for positive seating in the holder bore
• Length under head of 2.125 inches for adequate tool support depth
• Head thickness of 0.265 inches provides a positive stop against the holder face

Compatibility

Designed as a direct-fit replacement or new-installation Type B rotary tool holder bushing for standard Type B bushing seat applications in jig, fixture, and machine tool assemblies.

Installation Notes

Installation is typically performed by a machinist or CNC technician. Power down and lock out the machine before inserting or removing any tooling bushing. Verify that the mating tool holder bore is clean and free of debris before seating the bushing. Follow applicable shop safety procedures and equipment manufacturer guidelines during installation.
