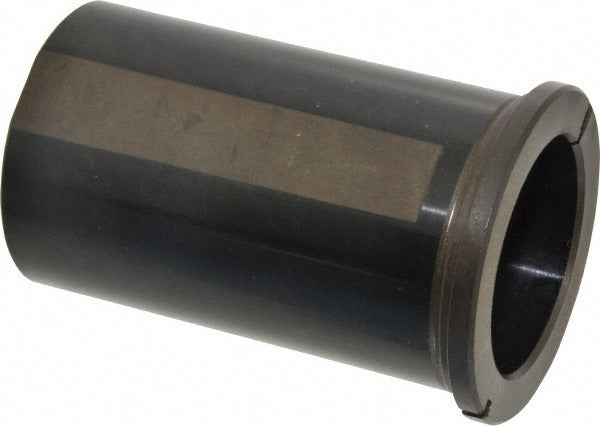

Global Cnc Industries 8606B 2.000 Tool Holder Bushing Type B

Product Description

The GLOBAL CNC INDUSTRIES 8606B 2.000 is a Type B rotary tool holder bushing engineered for use in machine tool setups requiring precise bore alignment and secure tool retention. With a 2.0000-inch inside diameter and a 2.5000-inch outside diameter, this bushing provides a close-tolerance fit in standard tooling blocks and holder bodies. The 4.0000-inch length under head gives sufficient depth for stable tool engagement in demanding machining operations. Weighing 2.31 pounds, it is built for durability in production environments. Installation is typically performed by machinists and toolroom technicians working with rotary tooling systems.

This bushing is suited for use in rotary tool holder applications found in CNC machining centers, lathes, and similar machine tool platforms where repeatable, rigid tool positioning is required. The Type B configuration follows a standard geometry recognized across compatible tooling systems. It is appropriate for both production shops and maintenance toolroom applications where consistent bore sizing and head depth are critical to setup accuracy.

Key Features

• Type B bushing configuration for compatibility with standard rotary tool holder systems
• 2.0000-inch inside diameter for precise tool shank fitment
• 2.5000-inch outside diameter for secure seating in holder body bores
• 4.0000-inch length under head provides stable, deep tool engagement
• 0.3340-inch head thickness for positive axial location and stop reference
• 2.31-pound construction indicates solid, heavy-duty material build

Compatibility

Designed as a standard Type B rotary tool holder bushing for use in machine tool holder bodies and tooling blocks requiring a 2.0000-inch bore and 2.5000-inch outer diameter seating surface.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Ensure the machine spindle and tool holder are fully de-energized and locked out before servicing or replacing bushings. The bushing should be pressed or fitted into the holder body bore without forcing; verify bore condition and cleanliness before installation. Confirm dimensional compatibility with the existing tooling block or holder body before use.
