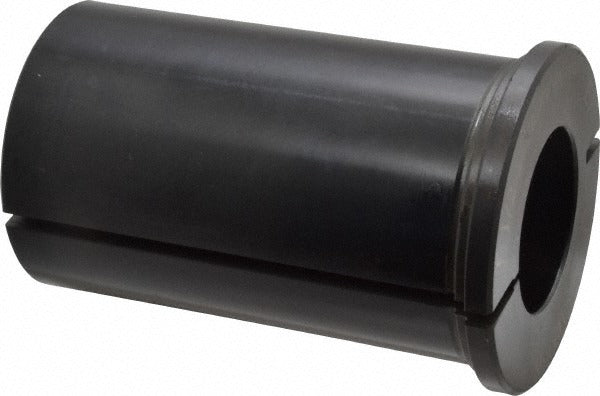

Global Cnc Industries 8606B 1.500 Tool Holder Bushing Type B

Product Description

The GLOBAL CNC INDUSTRIES 8606B 1.500 is a Type B rotary tool holder bushing designed for use in CNC machining and tooling setups. It features a 1.5-inch inside diameter, a 2.5-inch outside diameter, and a 4-inch length under the head, with a head thickness of 0.334 inches. This bushing serves as a precision interface component between the tool holder and the machine spindle or turret, maintaining accurate tool alignment during rotary operations. Installation is performed by qualified CNC machinists and toolroom technicians as part of tooling changeovers or machine setup procedures.

This bushing is suited for use in CNC lathes, machining centers, and rotary tooling systems requiring a Type B bushing configuration. The 1.5-inch bore accommodates tooling shanks of that diameter, while the 2.5-inch OD provides a stable seating surface within the holder body. At 3.81 pounds, this is a solid, substantial component appropriate for production machining environments where repeatable tool positioning is required.

Key Features

• Type B bushing configuration for compatibility with corresponding Type B tool holder bodies
• 1.5-inch inside diameter for precise shank fitment
• 2.5-inch outside diameter for secure seating in holder
• 4-inch length under head provides extended support for tooling stability
• 0.334-inch head thickness for positive axial location
• 3.81-pound solid construction suited for production machining use

Compatibility

Designed as an OEM-style replacement or direct-fit component for Type B rotary tool holder systems requiring a 1.5-inch ID and 2.5-inch OD bushing with a 4-inch length under head.

Installation Notes

Installation is performed by CNC machinists or toolroom technicians during tooling setup or changeover. Ensure the machine spindle is fully stopped and the tool holder is de-energized before inserting or removing the bushing. Verify bore and OD dimensions against the tool holder body specifications before installation to confirm proper fit and seating. Follow the machine manufacturer guidelines and applicable shop safety procedures throughout the process.
