Global Cnc Industries 8602J .375 Tool Holder Bushing Type J

Product Description

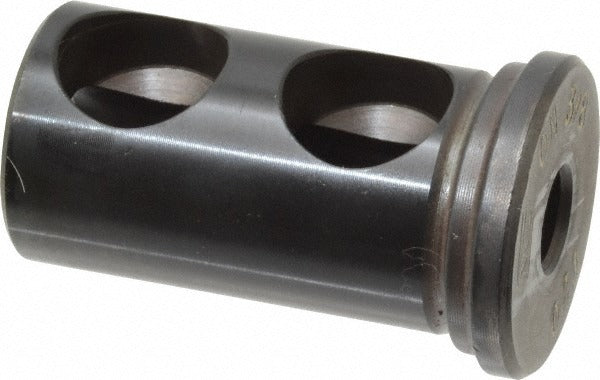

The GLOBAL CNC INDUSTRIES 8602J .375 is a Type J rotary tool holder bushing designed for use in drill jigs, fixtures, and precision tooling setups. It features a 0.375-inch inside diameter and a 1.000-inch outside diameter, with a length under the head of 1.750 inches. The head thickness measures 0.265 inches. This bushing is installed by machinists and toolroom technicians in CNC and manual machining environments where accurate hole location and repeatable tool guidance are required.

This Type J bushing is suited for drill jig applications in both production and job-shop settings. The 5/8-inch hole diameter and 7/8-inch distance between hole centers make it compatible with standard jig plate configurations. It is appropriate for use in fixed or renewable bushing systems where dimensional consistency and close tolerances are critical to part quality.

Key Features

• Type J bushing configuration for standard drill jig and fixture applications
• 0.375-inch (3/8-inch) inside diameter for precise tool guidance
• 1.000-inch outside diameter for a secure fit in the jig plate
• 1.750-inch length under head accommodates typical workpiece thickness ranges
• 5/8-inch hole diameter with 7/8-inch distance between hole centers
• Compact 0.265-inch head thickness minimizes interference with surrounding features

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard Type J drill jig bushing applications in rotary tool holder systems.

Installation Notes

Installation of drill jig bushings is performed by machinists or tooling technicians. The mating jig plate bore should be verified to the correct tolerance before pressing or locking the bushing in place. Ensure all cutting tools and machine spindles are fully stopped and de-energized before servicing jig components. Do not force the bushing into an undersized bore, as this can distort the inside diameter and compromise tool guidance accuracy.
