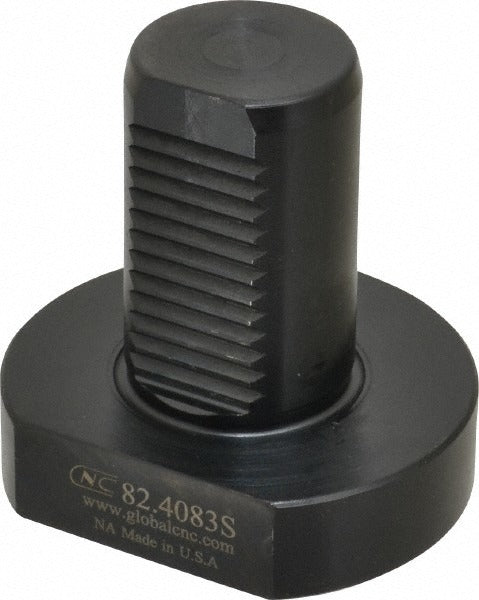

Global Cnc Industries 82.4083S Vdi Static Tool Holder

Product Description

The GLOBAL CNC INDUSTRIES 82.4083S is a VDI static tool axis holder designed for use on CNC turning centers and lathes equipped with VDI turret systems. It holds cutting tools in a fixed, non-rotating position, making it suitable for turning, boring, and facing operations where live tooling is not required. With a 40 mm shank diameter and a 20-inch projection, this holder provides the reach and rigidity needed for precise, repeatable tool positioning in demanding production environments. At 1 pound, the unit is machined to close tolerances and is intended for professional CNC machinists and toolroom technicians.

This holder is used on CNC lathes and turning centers that accept VDI-style turret tooling. It is well-suited for high-volume production shops, job shops, and maintenance toolrooms running VDI-compatible machines. The static configuration makes it appropriate for applications where driven or live tooling is not needed, and the 20-inch projection accommodates setups requiring extended tool reach beyond the standard turret face. Installation is performed by qualified CNC setup technicians or machinists familiar with VDI turret systems.

Key Features

• VDI static (non-live) tool holder for turning center turrets
• 40 mm shank diameter for secure turret engagement
• 20-inch projection provides extended reach for deep or offset setups
• Lightweight at 1 pound for reduced turret load
• Compatible with standard VDI turret systems used on CNC lathes

Compatibility

Designed as an OEM-style replacement and standard fitment holder for CNC turning centers and lathes equipped with VDI-style turret systems accepting a 40 mm shank diameter tool holder.

Installation Notes

Installation should be performed by a qualified CNC machinist or setup technician. Power down and lock out the machine spindle and turret before mounting or removing any tooling. Ensure the turret seat and holder shank are clean and free of chips or burrs before seating the holder. Verify tool projection and runout with a dial indicator before returning the machine to production.
