Global Cnc Industries 53.4040 Vdi Static Axis Holder ER40

Product Description

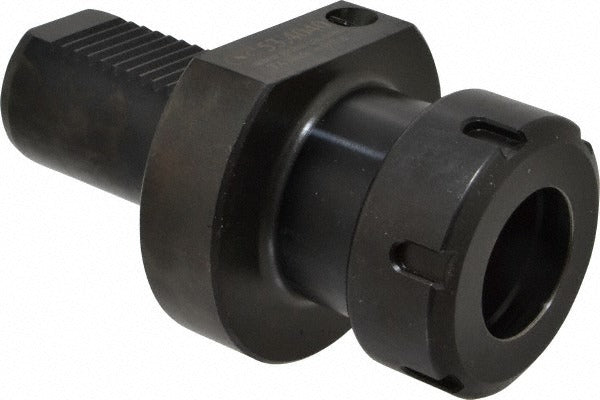

The GLOBAL CNC INDUSTRIES 53.4040 is a VDI static tool axis holder designed for CNC turning centers equipped with VDI-style turrets. Built to E3 VDI form standards, this holder accepts ER40 collet series tooling and features a 40mm shank diameter with a 61mm projection. Through-coolant capability delivers cutting fluid directly to the tool tip, improving chip evacuation and extending tool life in demanding turning operations. It is installed and serviced by CNC machinists and tool room technicians working with live or static turret configurations.

This holder is suited for static tool positions on CNC lathes and turning centers that use VDI turret interfaces. The ER40 collet series accommodates a wide range of shank diameters, making this holder versatile across common turning and boring applications. The 61mm projection provides clearance for workpieces and chucks in typical lathe setups. Through-coolant support makes it appropriate for high-speed or difficult-to-machine materials where direct coolant delivery is required.

Key Features

• E3 VDI form compliance for precise turret registration and repeatability
• ER40 collet series compatibility for broad tooling range
• 40mm shank diameter for rigid interface with VDI turret pocket
• 61mm projection to clear workpiece and chuck geometry
• Through-coolant design for direct coolant delivery to the cutting zone

Compatibility

Designed as an OEM-style static axis holder for CNC turning centers equipped with VDI turret systems accepting E3 VDI form tooling with a 40mm shank interface.

Installation Notes

Installation is performed by qualified CNC machinists or tool room technicians. Power down and lock out the machine before inserting or removing any turret tooling. Verify that the turret pocket and holder shank are clean and free of chips before seating the holder. If through-coolant is used, confirm that coolant passages are clear and that all connections are secured before resuming machine operation.
