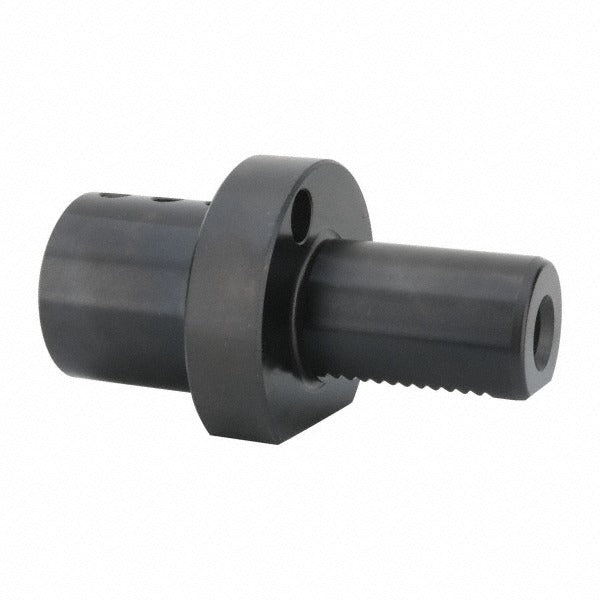

Global Cnc Industries 52.4012 Vdi Static Tool Holder

Product Description

The GLOBAL CNC INDUSTRIES 52.4012 is a VDI static tool axis holder designed for use on CNC lathes and turning centers equipped with VDI tooling interfaces. Built to E2 VDI form standards, this holder features a 75mm projection and through-coolant capability, directing coolant directly to the cutting zone for improved chip evacuation and tool life. With a 40mm shank diameter, the 52.4012 provides a rigid, repeatable connection between the turret and the cutting tool. It is suited for turning, facing, and other static tooling operations where precise positioning and coolant delivery are required.

This holder is intended for CNC turning centers and lathes that use VDI-style turret tool stations. The E2 VDI form designation indicates compatibility with the corresponding VDI radial and axial tooling standard, making it a direct fit for turrets designed around that interface. The through-coolant feature makes it particularly well suited for operations involving difficult-to-machine materials or deep-reach applications where flood coolant alone is insufficient. Installation is typically performed by a CNC setup technician or machinist during a tooling change or turret setup.

Key Features

• E2 VDI form construction meets standardized VDI toolholder interface requirements
• 75mm projection provides extended reach for clearance-sensitive applications
• 40mm shank diameter delivers a rigid, stable connection to the turret
• Through-coolant design channels coolant directly to the cutting edge
• Static holder configuration for non-driven, fixed-tool turning operations

Compatibility

Designed as an OEM-style static toolholder for CNC lathes and turning centers equipped with VDI E2 form turret interfaces accepting a 40mm shank diameter.

Installation Notes

Installation should be performed by a qualified CNC machinist or setup technician. Power down and lock out the machine before accessing the turret or changing tooling. Ensure the turret station and holder mating surfaces are clean and free of chips or burrs before seating the holder. Verify through-coolant port alignment with the machine coolant supply before resuming operation.
