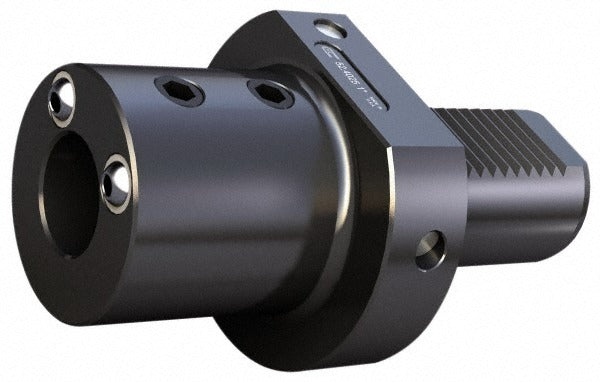

Global Cnc Industries 52.4010 Vdi Static Tool Holder

Product Description

The GLOBAL CNC INDUSTRIES 52.4010 is a VDI static tool axis holder designed for use on CNC turning centers equipped with VDI tooling interfaces. Built to the E2 VDI form standard, this holder features a 75mm projection and through-coolant capability, directing cutting fluid directly to the cutting zone for improved chip evacuation and tool life. With a 40mm shank diameter, it provides a rigid, repeatable mount for static turning and boring tools. This holder is installed by CNC machinists and tooling setup technicians as part of a turret tooling configuration.

This holder is suited for CNC lathes and turning centers that accept VDI-style tooling on the turret. The E2 VDI form designation makes it compatible with standard VDI turret systems used in both production and job-shop environments. The 75mm projection accommodates tooling clearance requirements common in medium-duty turning applications. The through-coolant feature is particularly useful when machining deep bores, difficult materials, or in high-speed finishing passes where flood coolant alone is insufficient.

Key Features

• E2 VDI form standard for consistent turret interface fitment
• 75mm projection provides clearance for a range of tooling setups
• Through-coolant design channels fluid directly to the cutting edge
• 40mm shank diameter for rigid, stable tool mounting
• Static holder configuration for turning and fixed-tool operations

Compatibility

Designed for use with VDI turret systems accepting E2 VDI form toolholders with a 40mm shank diameter. Consult your machine tool documentation to confirm turret interface and projection requirements before installation.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician familiar with VDI turret systems. Power down and lockout the machine before accessing the turret or installing any tooling. Ensure the turret interface and holder seating surfaces are clean and free of chips or burrs prior to installation. Verify through-coolant port alignment with the machine spindle coolant supply before operation.
