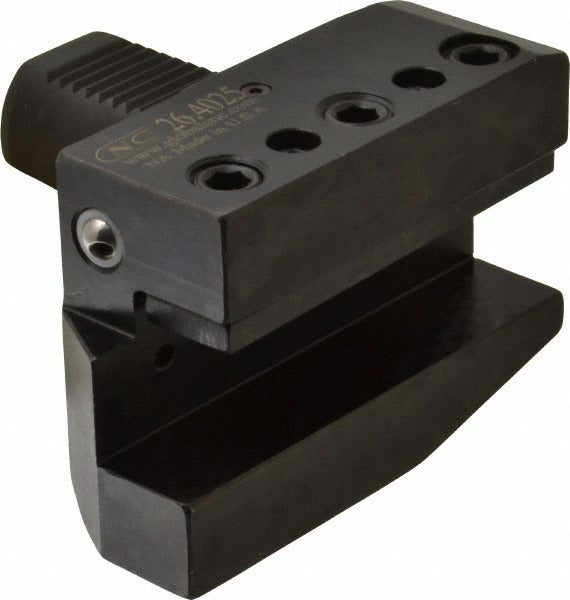

Global Cnc Industries 26.4025 Vdi Static Tool Holder

Product Description

The GLOBAL CNC INDUSTRIES 26.4025 is a VDI static tool axis holder designed for use on CNC turning centers and lathes equipped with VDI-style turret interfaces. Built to B6 VDI form standards, this holder provides a 44mm projection and a 118mm head length, with through-coolant capability to direct cutting fluid directly to the tool tip. The 40mm shank diameter ensures a rigid, repeatable fit in compatible VDI turret stations. At 7 pounds, it is a solid, production-grade toolholder suited for shops running high-volume turning operations.

This holder is intended for static turning and boring applications where the tool axis is aligned with the turret face. It is commonly installed in CNC turning centers with VDI 40 turret systems in both job shop and production environments. The through-coolant feature makes it well suited for deep-bore operations, hard materials, or any application where flood coolant alone is insufficient for chip evacuation and heat control. Installation and setup are typically performed by CNC machinists or tooling technicians during turret configuration or tool changeover.

Key Features

• B6 VDI form construction for standardized turret interface fitment
• 44mm projection provides clearance for a range of cutting tool setups
• 118mm head length accommodates various insert tooling configurations
• Through-coolant design directs fluid to the cutting zone for improved chip control and tool life
• 40mm shank diameter for rigid, low-runout seating in VDI 40 turret pockets

Compatibility

Designed as a static VDI toolholder for use with CNC turning centers equipped with VDI 40-style turret systems. Specific machine compatibility should be confirmed against the turret interface specification of the target machine tool.

Installation Notes

Installation should be performed by a qualified CNC machinist or tooling technician with the machine in an E-stop or powered-down state and the turret fully locked. Fastener torque should follow the machine tool manufacturer specifications for VDI pocket clamping hardware. Verify through-coolant port alignment with the turret coolant supply before tightening. Confirm tool projection and centerline height with a presetter or indicated bore bar before returning the machine to cycle.
