Global Cnc Industries 22.5032 Vdi Static Tool Axis Holder

Product Description

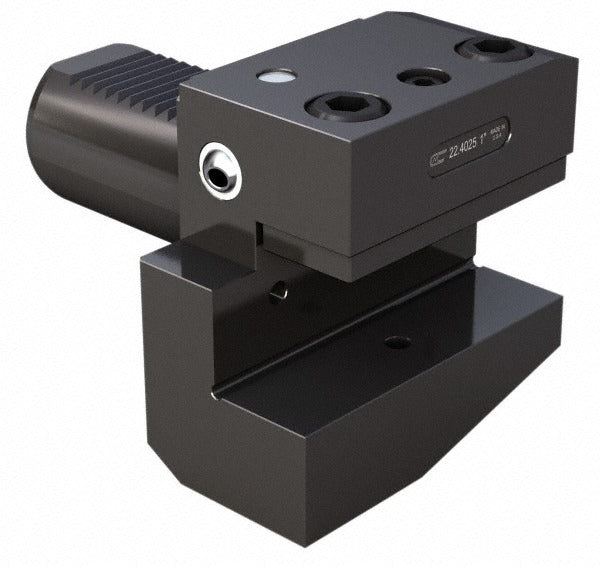

The GLOBAL CNC INDUSTRIES 22.5032 is a VDI static tool axis holder engineered for precision CNC lathe and turning center applications. Built to B2 VDI form standards, it features a 55mm projection and a 100mm head, providing the rigidity and dimensional consistency required for static (non-driven) tooling operations. Through-coolant capability allows direct coolant delivery to the cutting zone, extending tool life and improving chip evacuation during high-volume turning operations. With a shank diameter of 50mm and a weight of 8 pounds, this holder is suited for medium-to-heavy duty tooling setups on VDI-equipped turrets.

This holder is intended for use on CNC lathes and turning centers equipped with VDI turrets accepting B2 form toolholders. It is a static holder, meaning it is designed for fixed, non-rotating tooling such as turning, boring, and grooving inserts rather than live or driven tools. The through-coolant feature makes it particularly well-suited for deep-bore turning, hard material machining, and applications where flood coolant alone is insufficient. Installation and tooling changes are typically performed by CNC machinists and setup technicians in production or job shop environments.

Key Features

• B2 VDI form compliance for accurate, repeatable turret indexing
• 55mm projection for extended reach in turning and boring applications
• 100mm head dimension provides a stable mounting platform for static tooling
• Through-coolant design delivers coolant directly to the cutting edge
• 50mm shank diameter for secure engagement in VDI turret seats
• Solid construction at 8 pounds supports rigid, vibration-resistant tooling setups

Compatibility

Designed as an OEM-style static toolholder for CNC lathes and turning centers equipped with VDI turrets accepting B2 form holders with a 50mm shank diameter.

Installation Notes

Installation should be performed by a qualified CNC machinist or setup technician. Power down and lock out the machine following facility lockout/tagout procedures before mounting or removing any toolholder from the turret. Verify that the turret seat and clamping mechanism are clean and free of chips or coolant deposits before seating the holder. Confirm through-coolant port alignment with the turret coolant supply before torquing the clamping bolts to the machine manufacturer's specified values.
