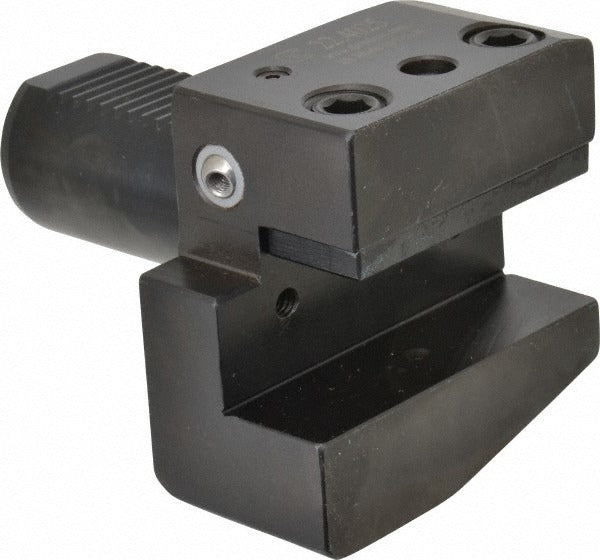

Global Cnc Industries 22.4025 Vdi Static Tool Holder

Product Description

The GLOBAL CNC INDUSTRIES 22.4025 is a VDI static tool axis holder designed for use on CNC turning centers and lathes equipped with VDI tooling systems. Built to B2 VDI form, this holder provides a 44mm projection and an 85mm head, giving machinists precise tool positioning for static (non-driven) applications. Through-coolant capability directs cutting fluid directly to the cutting edge, improving chip evacuation and extending tool life in high-production turning operations. The 40mm shank diameter ensures a rigid, repeatable interface with the turret. This holder is typically installed by CNC machinists and toolroom technicians.

This holder suits static turning and boring operations on CNC lathes and turning centers that use the VDI quick-change turret standard. The B2 VDI form and 44mm projection make it well suited for external turning, facing, and profiling applications where a fixed tool position is required. Through-coolant support makes it a practical choice for shops running demanding materials or high-cycle environments where consistent coolant delivery at the cutting zone is critical.

Key Features

• B2 VDI form for compatibility with VDI-standard quick-change turrets
• 44mm projection provides precise axial tool positioning
• 85mm head dimension supports a wide range of static tooling
• 40mm shank diameter ensures rigid turret engagement
• Through-coolant capability for direct coolant delivery to the cutting edge
• Static (non-driven) axis holder for fixed-position turning and boring operations

Compatibility

Designed as an OEM-style replacement or direct fitment for CNC lathes and turning centers equipped with VDI-standard quick-change turret systems accepting a 40mm shank diameter static holder in B2 VDI form.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician with the machine powered down and in an e-stop or lockout-tagout state per applicable machine safety procedures. Verify the turret is clean and free of chips or debris before seating the holder. Confirm through-coolant port alignment with the turret coolant supply before torquing the clamping fasteners. Refer to the machine tool manufacturer specifications for proper clamping torque and turret indexing procedures.
