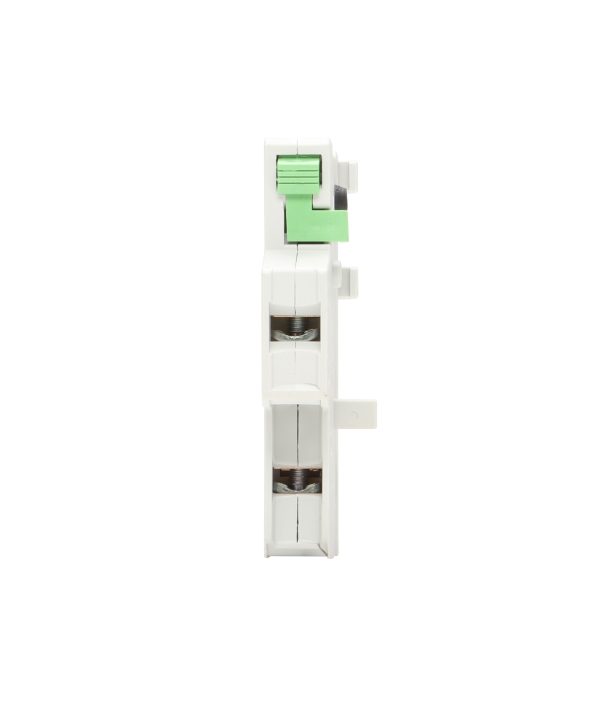

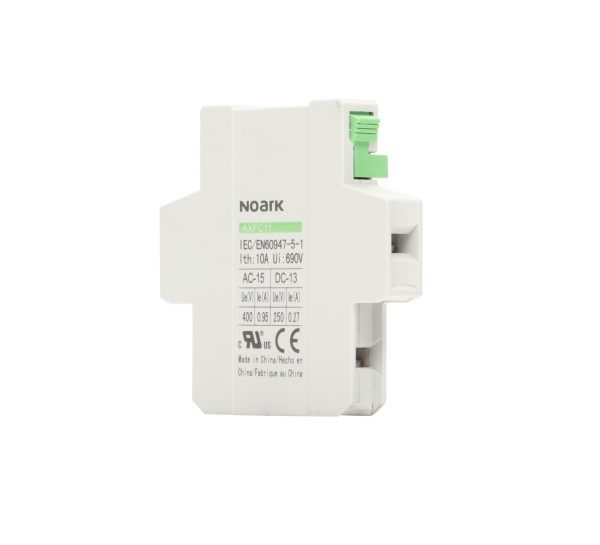

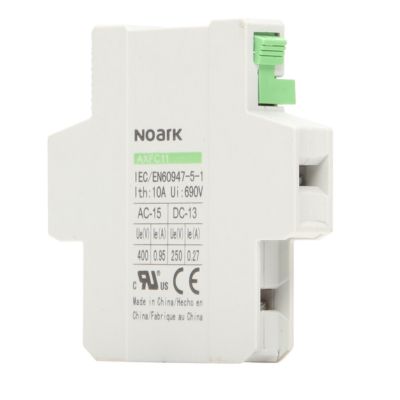

GLOBAL AXFC11 Auxiliary Contactor, 1 NO + 1 NC, Quick Connect

Product Description

The GLOBAL AXFC11 is an auxiliary contactor that belongs to the AXF series. This device includes one normally open (NO) contact and one normally closed (NC) contact, offering versatility in control applications. It is equipped with a quick connect feature, simplifying installation and ensuring reliable connections. Designed for side mounting, this contactor provides enclosed coils to protect against contamination from particles.

• Configuration: 1 normally open + 1 normally closed contacts
• Connection type: Quick connect for easy setup
• Mounting style: Specifically designed for side mounting

Product Highlights

This contactor is ideal for various automation and control tasks in electrical systems, ensuring safety and reliability.

Product Information

Standard Information

• Brand: GLOBAL
• MPN: AXFC11

Technical Specifications

• Mounting style: Side mount
• Contacts: 1 normally open + 1 normally closed
• Connection type: Quick connect
• Coil voltage: Ranges from 24 to 600 Vac, 50/60 Hz
• Coil class: Class B, operating up to 266 °F (130 °C)
• Operating voltage: 125/250 VAC
• Current rating: 10 A
