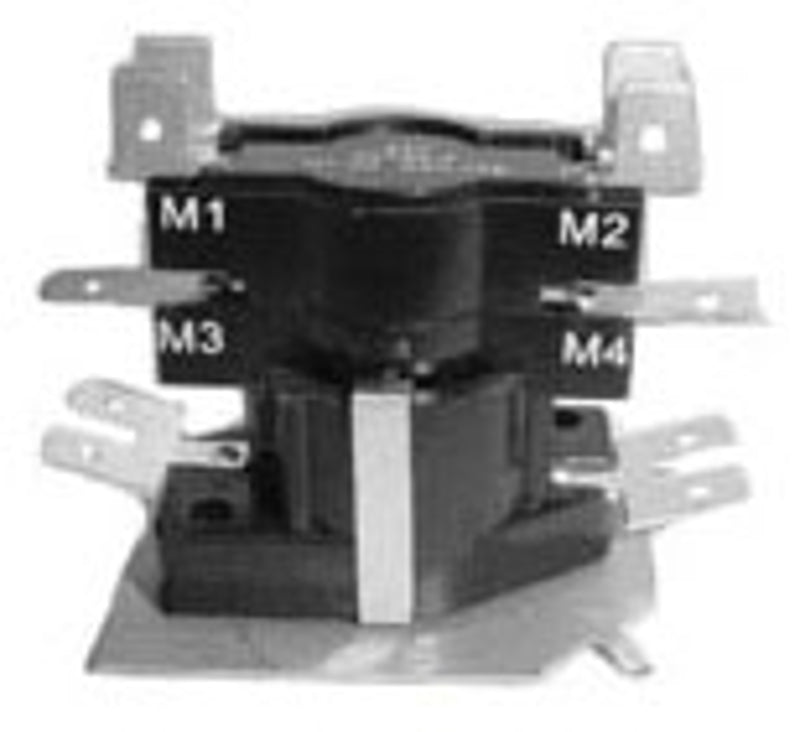

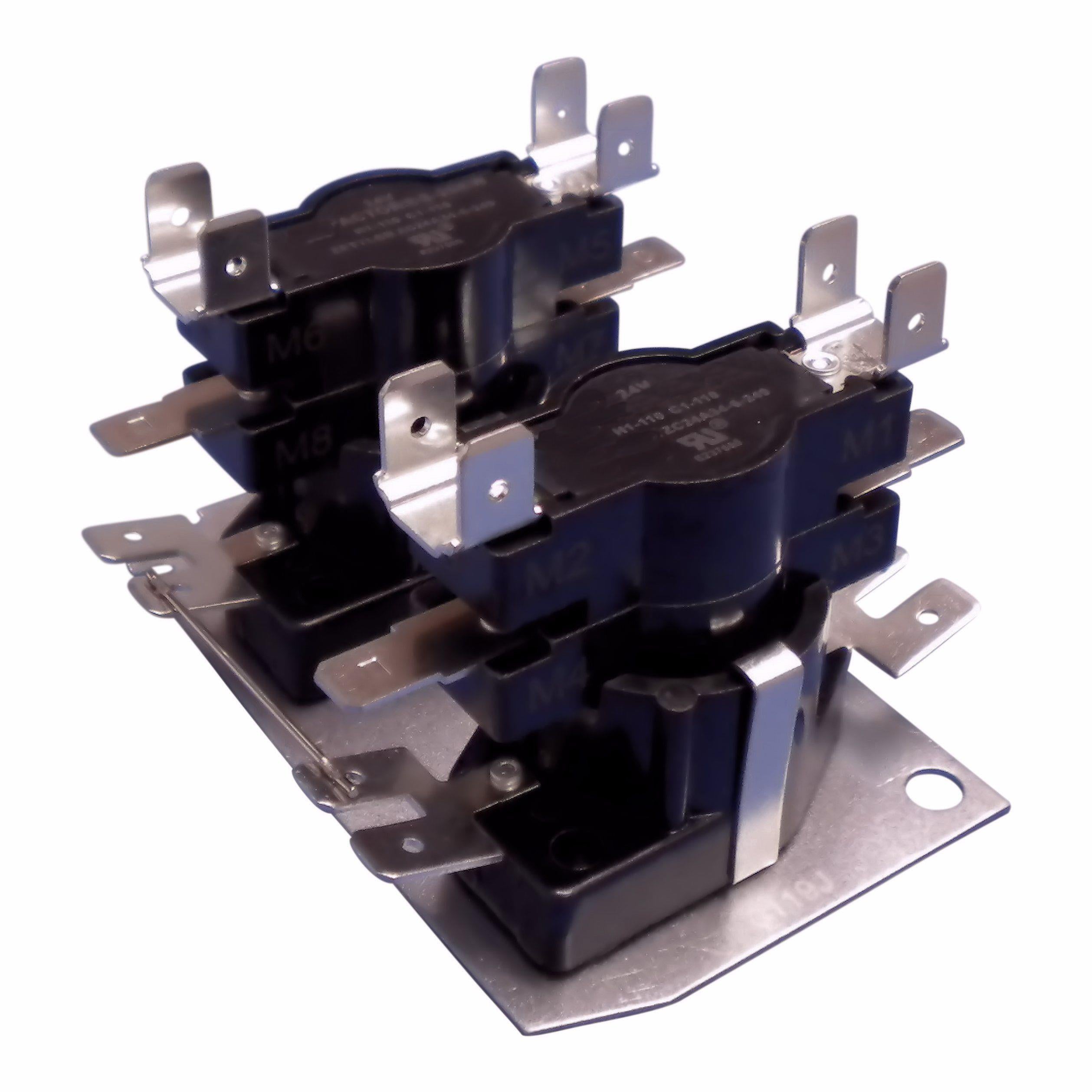

GLOBAL 24ZC-6 Electric Heat Sequencer

Product Description

The GLOBAL 24ZC-6 is an electric heat sequencer effective for electric heating systems. This unit has quick-connect terminals, which simplify installation. It is designed to resist shock and vibration for durability. The sequencer supports multi-position mounting and features auxiliary contacts rated for full-load. It uses solid-state PTC heaters for reliability and is certified by both CSA and UL.

• Double quick-connect terminal for combination load.
• Utilizes solid-state PTC heaters.
• Shock and vibration resistant design.

Product Highlights

Efficient for managing electric heating loads in diverse applications.

Product Information

Standard Information

• Manufacturer: GLOBAL
• MPN: 24ZC-6

Technical Specifications

• Application: Sequencer
• Type: Heat Sequencer
• Configuration: 2 DPST
• Mounting Type: Multi-Position
• Voltage: 120/240/480 Volts
• Current: 25/12.5 Amps
• Power: 3000 Watts
• Number of Switches: 4
• Timings for ON M1-M2: 1-110
• Timings for ON M3-M4: 1-110
• Timings for ON M5-M6: 1-110
• Timings for ON M7-M8: 1-110
• Timings for OFF M1-M2: 1-110
• Timings for OFF M3-M4: 1-110
• Timings for OFF M5-M6: 1-110
• Timings for OFF M7-M8: 1-110
