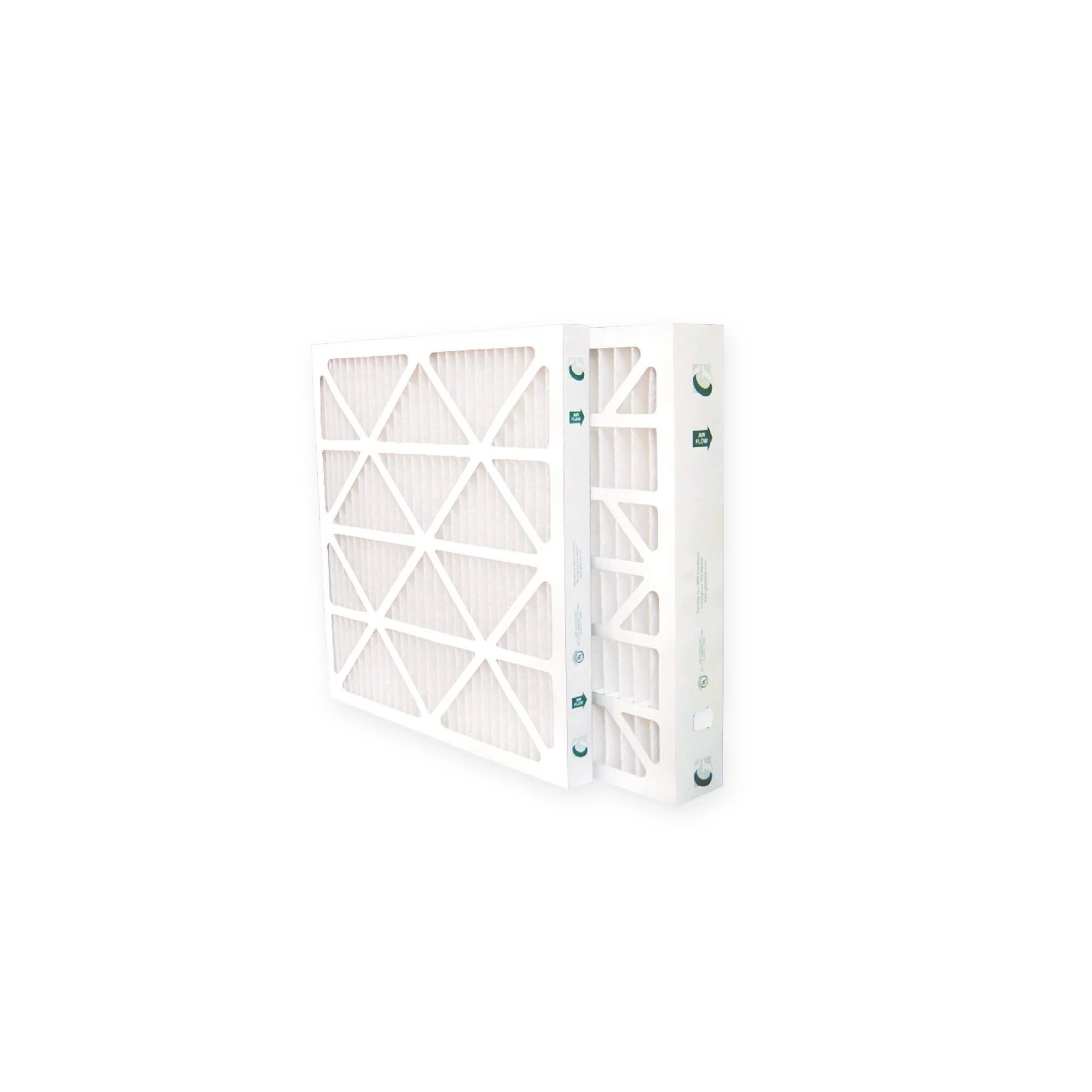

Glasfloss ZLP20242 Z-Line ZL Pleated Air Filter 20 x 24 x 2

Product Description

The Glasfloss ZLP20242 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The Glasfloss Z-Line Series SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Incorporates Media Separators

Product Highlights

Glasfloss ZLP20242 pleated filters offer excellent performance and value for a wide range of applications. Ideal for use in residential, commercial, and industrial settings.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP20242
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP20242
• Width: 20 in
• Height: 24 in
• Length: 2 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 10
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 20
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 2
• Nominal Filter Size in Inches (W x H x D): 20 x 24 x 2
• Series: Z-Line ZL
• Air Flow: 500 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.27 in wg
• Final Resistance: 1 in WG
• Media Material: Synthetic Fiber
• Temperature Rating: 180 deg F
• Flow Rate: 500 fpm
• Domestic/Import: Domestic
• Country of Origin: US
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 10 Plates/Linear-Ft
• Actual Size: 19-3/8 x 23-3/8 x 1-3/4 in
