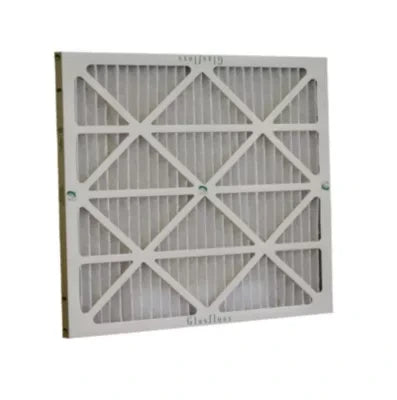

Glasfloss zlp20202 Pleated Air Filter Merv 10 20x20x2

Product Description

The GLASFLOSS zlp20202 is a MERV 10 pleated air filter designed for standard residential and commercial HVAC applications. Sized at 20 inches x 20 inches x 2 inches, this throwaway filter uses 100% synthetic fiber media arranged in a tapered radial pleat configuration. The media does not absorb moisture and will not support microbial growth, making it suitable for humid environments and geothermal unit installations. A galvanized expanded metal backing is laminated to the air-exit side to maintain pleat continuity and resist rust. The heavy-duty beverage board frame incorporates post-consumer recycled material and is moisture resistant. Rated to 180 degrees F and classified under U.L. Standard 900.

The zlp20202 fits into the Glasfloss Z-Line Series product line, covering a broad range of forced-air system types including standard residential air handlers, light commercial units, and geothermal replacement applications. With 10 pleats per linear foot and a filter efficiency range of 40% to 85%, this filter captures particles in the 1.0 to 10.0 micron range, including fine dust. It is sold individually and is suited for installation by HVAC technicians performing routine filter maintenance or equipment servicing.

Key Features

• MERV 10 rating per ANSI/ASHRAE 52.2 Test Standard
• 100% synthetic fiber media — moisture resistant, will not support microbial growth
• Galvanized expanded metal backing on air-exit side resists rust and maintains pleat shape
• Heavy-duty moisture-resistant beverage board frame with post-consumer recycled content
• Captures particles from 1.0 to 10.0 microns including fine dust
• Rated to 180 degrees F; classified under U.L. Standard 900

Compatibility

Designed as a Z-Line Series pleated replacement filter for residential and light commercial forced-air HVAC systems, including geothermal units, that accept a 20 inches x 20 inches x 2 inches filter.

Installation Notes

Installation is performed by a qualified HVAC technician. Always shut down the air handler or furnace and set the thermostat to off before removing the old filter or installing the new one. Confirm airflow direction arrow on the frame aligns with the direction of airflow through the system before seating the filter. Throwaway filters are not washable and should be replaced on the manufacturer-recommended schedule or when visibly loaded.
