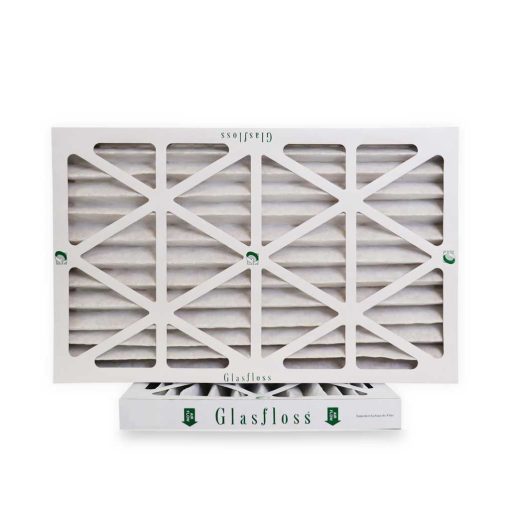

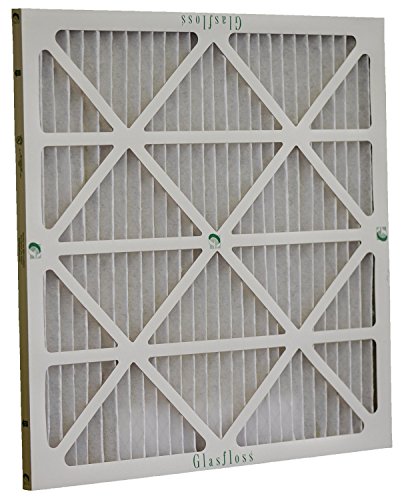

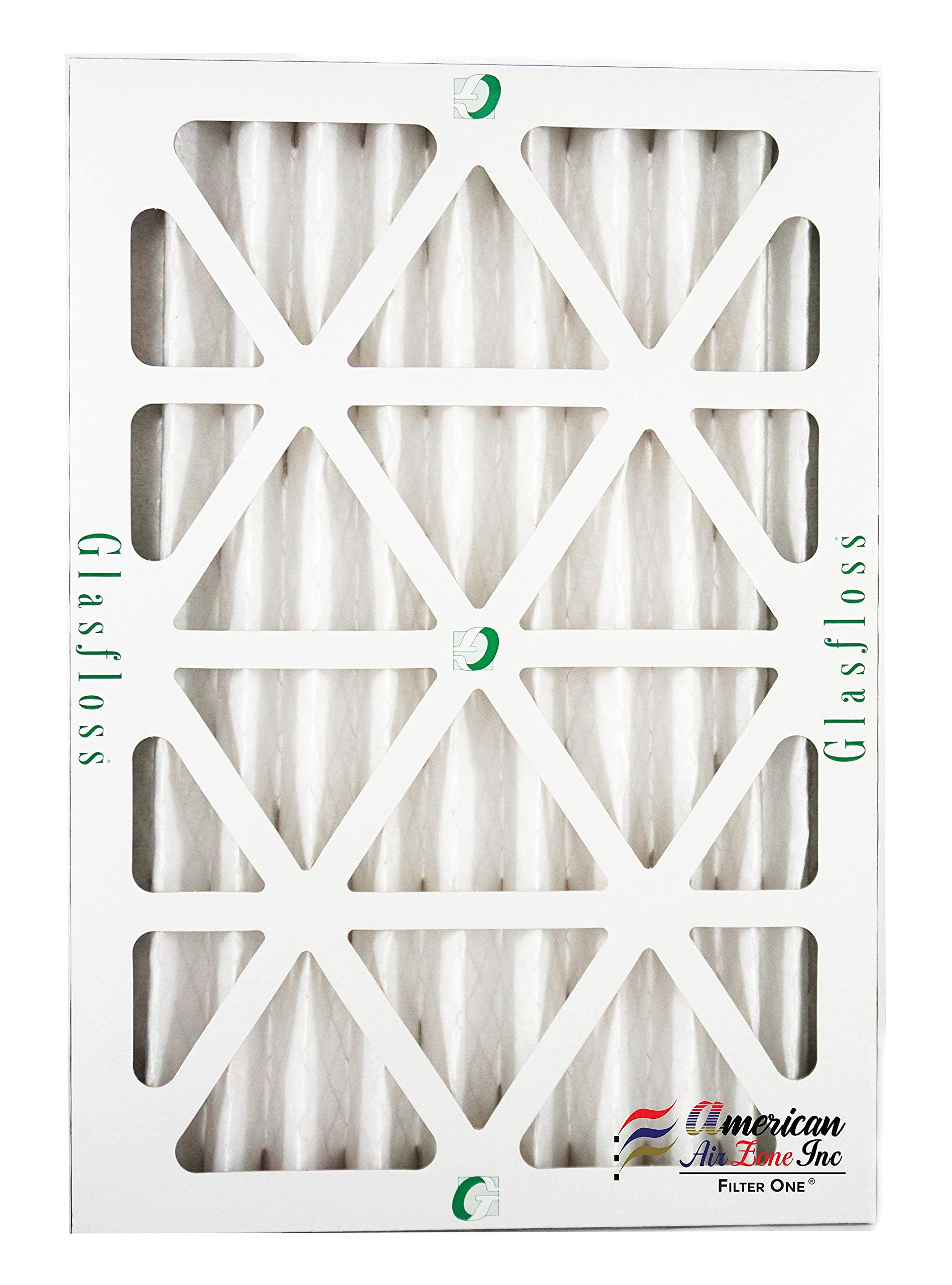

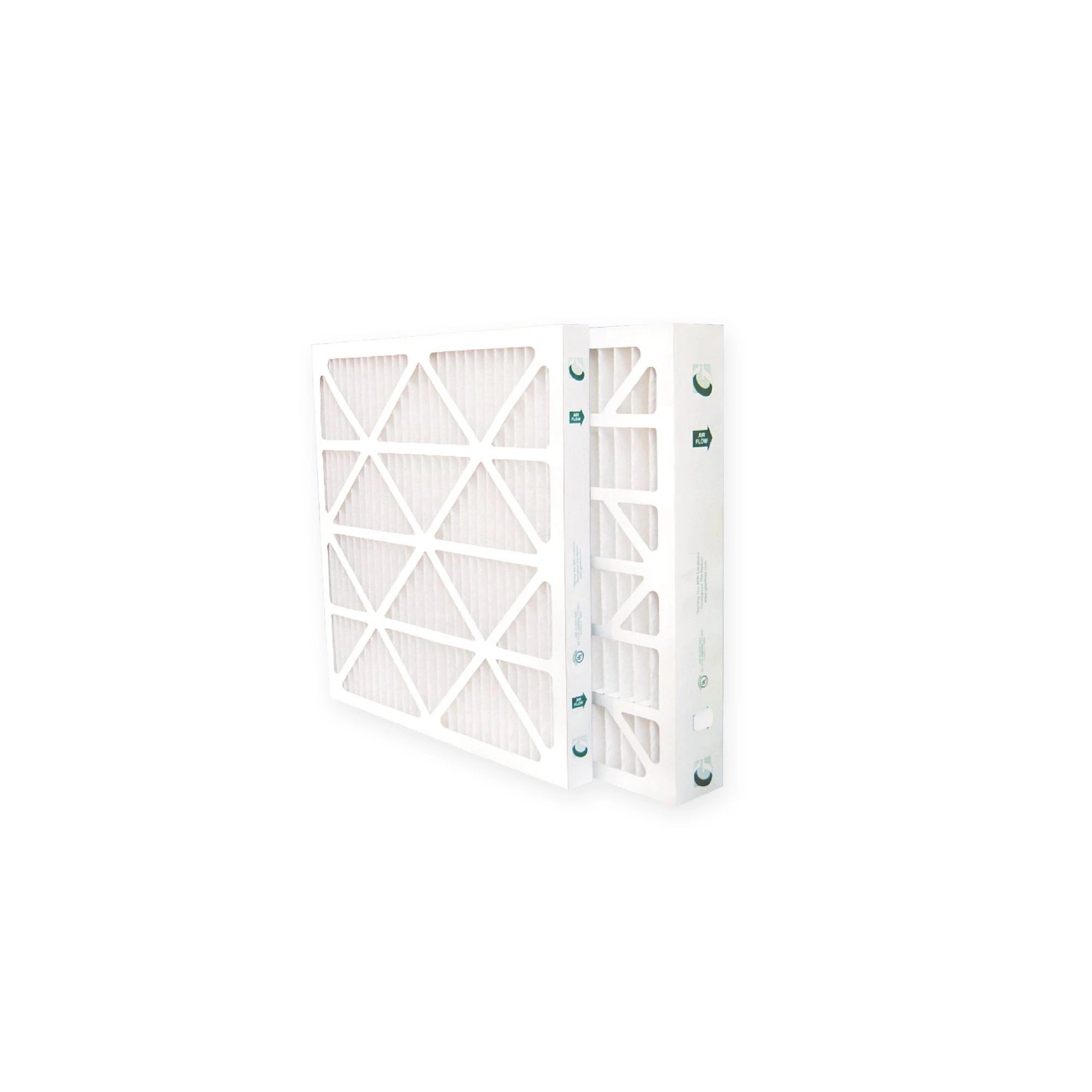

Glasfloss ZLP14252 Z-Line Standard Capacity Pleated Filter 14 x 25 x 2

Product Description

The Glasfloss ZLP14252 Z-Line series pleated filter offers improved performance for various applications. Constructed with heavy-duty, moisture-resistant materials and a galvanized expanded metal backing. The synthetic fibers do not absorb moisture and will not support microbial growth. Achieves a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Geothermal Unit Replacement Filters

Product Highlights

This Glasfloss Z-Line series filter provides excellent filtration and value for residential, commercial, and industrial use.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP14252
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• MERV Rating: 10
• Nominal Filter Size in Inches (W x H x D): 14 x 25 x 2
• Nominal Filter Thickness in Inches: 2
• Pleats per Linear Feet: 10
• Prop 65: Yes
• Removes Fine Dust: Yes
• Removes Smoke: No
• fpm: 500 fpm
• Temperature: 180 deg F
• Initial Resistance: 0.27 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Series: Z-Line® ZL
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss Industries
• Actual Size: 13-1/2 x 24-1/2 x 1-3/4
• Filter Life: 3 Month (90 day)
• Flow Rate: 500 fpm
• Media Material: Synthetic Fiber
• Overall Dimensions: 13-1/2 in W x 1-3/4 in D x 24-1/2 in H
• Temperature Rating: 180 deg F
• ASHRAE Standard: 52.2
• UL Standard: 900
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Resistance: 0.3 Inch WG
• Application: Industrial, Commercial
• Applicable Standard: ANSI/ASHRAE 52.2, UL, NAFA, HardI, USGBC
• Media Area: 7.22 sq-ft
