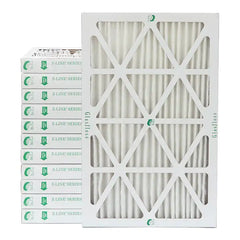

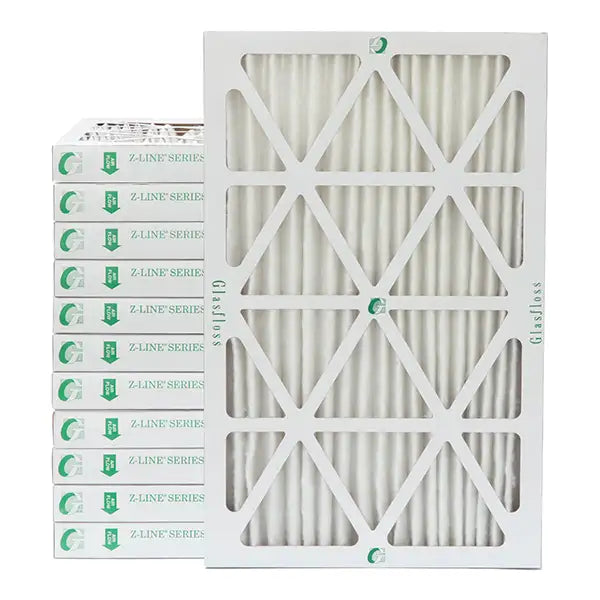

Glasfloss ZLP12242 Pleated Air Filter 12x24x2 Merv 10

Product Description

The GLASFLOSS ZLP12242 is a MERV 10 pleated air filter designed for residential and commercial HVAC systems requiring efficient particulate removal and reliable airflow management. Sized at 12 inches x 24 inches x 2 inches, this filter features 100% synthetic fiber extended-surface media arranged in a tapered radial pleat configuration at 10 pleats per lineal foot, delivering 5.77 square feet of effective media area. Initial resistance is 0.3 inches WC with a final resistance of 1 inch WC at a rated face velocity of 500 FPM. A galvanized expanded metal backing is laminated to the air-exit side of the media using a thermosetting adhesive to maintain pleat integrity. Licensed HVAC technicians and air quality professionals are the primary installers.

The ZLP12242 is suited for a wide range of HVAC applications including geothermal units, forced-air systems, and commercial air handling equipment where MERV 10 filtration is specified. The filter is rated for continuous operation up to 180 degrees F, making it appropriate for higher-temperature air streams. Its moisture-resistant frame construction supports installations in humid or variable-climate environments. Energy Star rated and manufactured in the USA, this filter meets applicable standards including UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, and NAFA requirements.

Key Features

• MERV 10 filtration with 100% synthetic fiber extended-surface pleated media
• Tapered radial pleat configuration at 10 pleats per lineal foot for consistent airflow distribution
• Galvanized expanded metal backing resists rust and corrosion while maintaining pleat shape
• 1-piece die-cut heavy-duty moisture-resistant beverage board frame incorporating post-consumer recycled material
• Rated to 180 degrees F for use in demanding or high-temperature air handling applications
• Energy Star rated and compliant with UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, and NAFA standards

Compatibility

Designed as a standard MERV 10 pleated filter replacement for forced-air HVAC systems, geothermal units, and commercial air handlers accepting a 12 inches x 24 inches x 2 inches filter cartridge.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment manufacturer's service instructions. Always shut down the air handling unit and set the thermostat to off before replacing filters. Confirm airflow direction marked on the filter frame matches the system's supply airflow path before seating the cartridge. Inspect the filter housing for frame seal integrity to prevent air bypass around the filter media.

Technical Specifications

• Dimensions: 12 inches x 24 inches x 2 inches
• MERV Rating: 10
• Media Area: 5.77 square feet
• Face Velocity: 500 FPM
• Initial Resistance: 0.3 inches WC
• Final Resistance: 1 inch WC
• Pleats: 10 per lineal foot
• Media Type: 100% synthetic fiber extended surface, pleated
• Frame: 1-piece die-cut, heavy-duty moisture-resistant beverage board
• Backing: Galvanized expanded metal
• Temperature Rating: 180 degrees F
• Application: Geothermal unit, forced-air HVAC, commercial air handling
• Applicable Standards: UL 900, ANSI/ASHRAE 52.2, USGBC LEED, HARDI, NAFA
• Energy Star Rated: Yes
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12242
