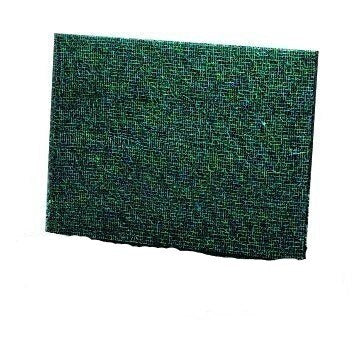

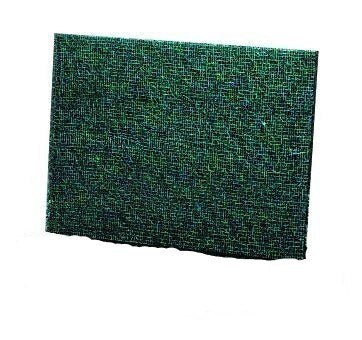

Glasfloss SM105 Hog Hair Filter Media 20x25 in

Product Description

The GLASFLOSS SM105 is a cut-to-fit hog hair filter media panel sized at 20 inches by 25 inches, intended for custom filtration applications across HVAC, ventilation, and air handling systems. Hog hair media is a coarse, fibrous material well suited for pre-filtration duty, capturing large particulates such as lint, debris, and insects before they reach finer downstream filter stages or coil surfaces. The SM105 ships as a full-size panel and can be trimmed on-site to match non-standard or irregular filter openings. Licensed HVAC technicians and mechanical contractors are the primary installers for this type of media.

This filter media is commonly used in residential and light commercial HVAC systems, evaporative cooler pads, fresh-air intake screens, and equipment rooms where a reusable, washable pre-filter is needed. It is especially practical in retrofit situations where standard-size filters do not fit available filter tracks or frames. The ability to cut the media to a precise dimension reduces waste and eliminates the need to stock multiple filter sizes for a single service route.

Key Features

• Cut-to-fit design allows field trimming to match non-standard or irregular openings
• Hog hair construction provides durable, reusable filtration media
• Effective as a coarse pre-filter to protect coils and finer downstream media
• Full panel size of 20 inches by 25 inches offers generous coverage before trimming
• Washable and reusable, reducing replacement frequency on service calls

Compatibility

Designed as a universal cut-to-fit pre-filter media for residential and light commercial HVAC systems, evaporative coolers, and air handling units requiring coarse particulate filtration.

Installation Notes

Power down or de-energize the air handling unit before accessing the filter section. Use sharp utility scissors or a utility knife and straight edge to trim the media panel cleanly to the required dimensions. Secure the trimmed media within the filter rack or frame to prevent bypass around the edges. Inspect and wash the media regularly per the equipment manufacturer's service interval recommendations.

Technical Specifications

• Media Dimensions: 20 x 25 inches
• Media Type: Hog Hair
• Filter Style: Cut-to-Fit Panel

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: SM105
