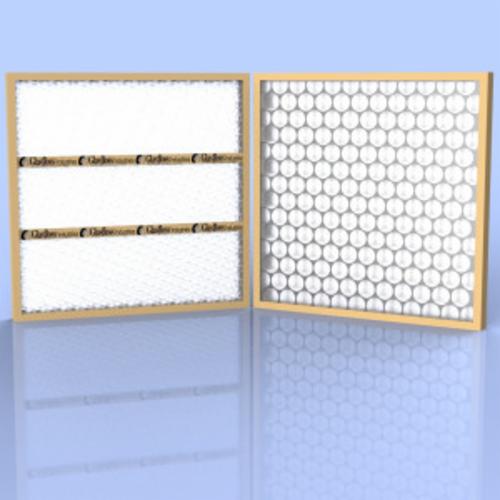

Glasfloss GDS16181 Disposable Panel Filter 180 deg F 16 in W x 1 in D x 18 in H

Product Description

The Glasfloss GDS16181 is a disposable panel filter designed for various applications. It measures sixteen inches wide, one inch deep, and eighteen inches high. This filter operates efficiently in commercial, industrial, and residential settings.

• Constructed with a heavy-duty one-piece box frame.
• Features fiberglass media that is coated with a non-toxic adhesive.
• Temperature rated to withstand up to one hundred eighty degrees Fahrenheit.

Product Highlights

This filter is effective for removing airborne particles and enhancing indoor air quality.

Product Information

Standard Information

• Brand: Glasfloss
• Part Number: GDS16181

Technical Specifications

• Application: Commercial, Industrial and Residential
• Country of Origin: US
• Depth: 1 in
• Efficiency: 20%
• Filter Rating: 3 to 10 micron
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Height: 18 in
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• MERV: 1 to 5
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, UL 900
• Overall Dimensions: 17-5/8 in H x 15-5/8 in W x 3/4 in D
• Temperature Rating: 180 deg F
• Width: 16 in
