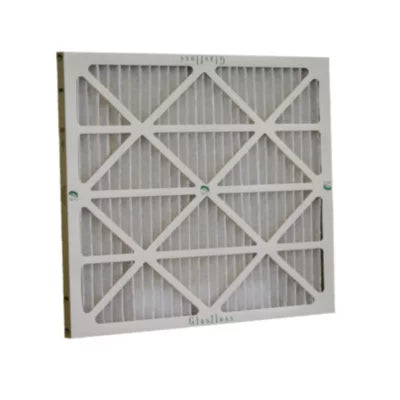

Glasfloss 20X30X1PL40 Z-line Pleated Air Filter 20x30x1

Product Description

The GLASFLOSS 20X30X1PL40 is a Z-Line Series standard-capacity pleated air filter sized at 20 x 30 x 1 inches and rated MERV 10 per the ANSI/ASHRAE 52.2 test standard. It is designed for use in residential and light commercial HVAC air handling systems where improved particulate capture over standard fiberglass panels is required. The filter media uses synthetic fibers that do not absorb moisture and will not support microbial growth, making it a reliable choice in humid climates or systems prone to condensation. HVAC technicians and service professionals install this filter during routine maintenance or system changeouts.

The Z-Line pleated filter fits standard 20 x 30 x 1 inch filter slots found in forced-air furnaces, air handlers, and return-air grille housings. It is suited for both residential and light commercial applications where a MERV 10 rating is specified. The pleated design increases media surface area compared to flat-panel filters, supporting adequate airflow while capturing dust, pollen, mold spores, and similar particles. This filter is part of the broader Z-Line Series, which includes the SB, ZL, and HV filter variants, all achieving MERV 10 ratings under the same test standard.

Key Features

• MERV 10 rating per ANSI/ASHRAE 52.2 test standard for reliable particulate filtration
• Synthetic fiber media resists moisture absorption and does not support microbial growth
• Pleated construction increases effective media surface area for improved airflow balance
• Standard 20 x 30 x 1 inch nominal size fits common residential and light commercial systems
• Part of the Z-Line Series, compatible with SB, ZL, and HV filter applications

Compatibility

Designed as an OEM-style replacement pleated filter for standard 20 x 30 x 1 inch filter slots in residential and light commercial forced-air HVAC systems. Compatible with Z-Line Series SB, ZL, and HV filter positions as noted in input data.

Installation Notes

Installation is performed by HVAC technicians or qualified service professionals as part of routine filter maintenance. Always power down the air handler or furnace at the disconnect or breaker before removing the old filter and inserting the replacement. Confirm airflow direction arrows on the filter frame align with the system airflow direction before closing the filter access panel. Follow local mechanical codes and the equipment manufacturer's recommended replacement interval for this MERV rating.

Technical Specifications

• Filter Rating: MERV 10 (ANSI/ASHRAE 52.2)
• Nominal Length: 1 inches
• Nominal Width: 20 inches
• Nominal Height: 30 inches
• Weight: 0.83 pounds

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: 20X30X1PL40
