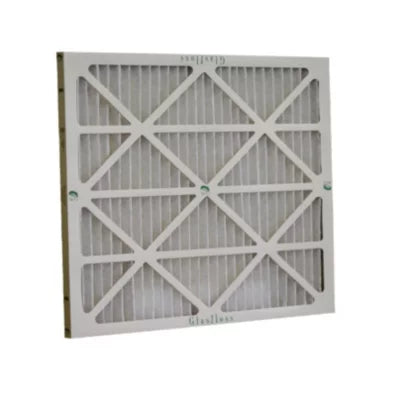

Glasfloss 20X24X2PL40 Pleated Air Filter 20x24x2 Merv 10

Product Description

The GLASFLOSS 20X24X2PL40 is a 2-inch pleated air filter from the Z-Line Series, designed to deliver reliable particulate capture for residential and light commercial HVAC systems. Measuring 20 x 24 x 2 inches and rated MERV 10 per the ANSI/ASHRAE 52.2 test standard, this filter balances airflow efficiency with effective filtration of dust, pollen, mold spores, and fine particles. The synthetic fiber media is engineered to resist moisture absorption and will not support microbial growth, which helps maintain media integrity over the service interval. HVAC technicians and mechanical contractors install this filter as a direct drop-in for standard filter tracks and air handler cabinets.

The 20X24X2PL40 is suited for residential forced-air systems, light commercial air handlers, and any application where a 20 x 24 x 2 inch filter slot is specified. The Z-Line Series is designed for improved performance across virtually every standard filtration application, including gas furnace systems, heat pumps, and central air conditioning units. Its standard-capacity pleated construction makes it appropriate for routine replacement cycles in occupied buildings where consistent indoor air quality is a priority.

Key Features

• MERV 10 rating per ANSI/ASHRAE 52.2 — captures dust, pollen, mold spores, and fine particulates
• Moisture-resistant synthetic fiber media will not support microbial growth
• Pleated design increases surface area for extended service life and lower pressure drop vs. flat-panel filters
• Standard 20 x 24 x 2 inch nominal size fits common residential and light commercial filter tracks
• Part of the Z-Line Series, engineered for consistent performance across a wide range of HVAC applications

Compatibility

Designed as a standard-capacity pleated replacement filter for residential and light commercial forced-air HVAC systems using a 20 x 24 x 2 inch filter slot.

Installation Notes

Installation is performed by HVAC technicians or qualified maintenance personnel. Always power down the air handler or furnace before removing the old filter and installing the new one. Insert the filter with the airflow arrow on the frame pointing toward the blower. Follow the equipment manufacturer's recommended replacement interval and inspect the filter more frequently in high-dust or high-occupancy environments.

Technical Specifications

• Filter Size (Nominal): 20 x 24 x 2 inches
• Depth: 2 inches
• Width: 20 inches
• Height: 24 inches
• MERV Rating: MERV 10 (ANSI/ASHRAE 52.2)
• Media Type: Pleated synthetic fiber
• Weight: 1.17 pounds

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: 20X24X2PL40
